My models contain element-by-element density and Young's modulus which I input through command. I want to colour plot the material variation in Workbench but am unable to achieve that. How can I do that ?? Thanks in advance.

P.S. I am using ANSYS 2019R2.

[Akshay Maniyar]

Have you tried to use material plot option? Please check the Ansys help link, for more details.

Thanks Amaniyar

[arindam.rs.iiests]

Thank you for your response.
I did give the material plot option a try with no results.
I am adding a 'Commands' object under 'Static Structural' which, I learnt, replaces the previously assigned isotropic material with the commands before solving. I added the 'Commands' object under the 'geometry' too which also did not generate the required material plot.
Is there any other way to plot the material??

[Akshay Maniyar]

Can you share the image of command snippet which you are using?
Thanks Amaniyar

[arindam.rs.iiests]

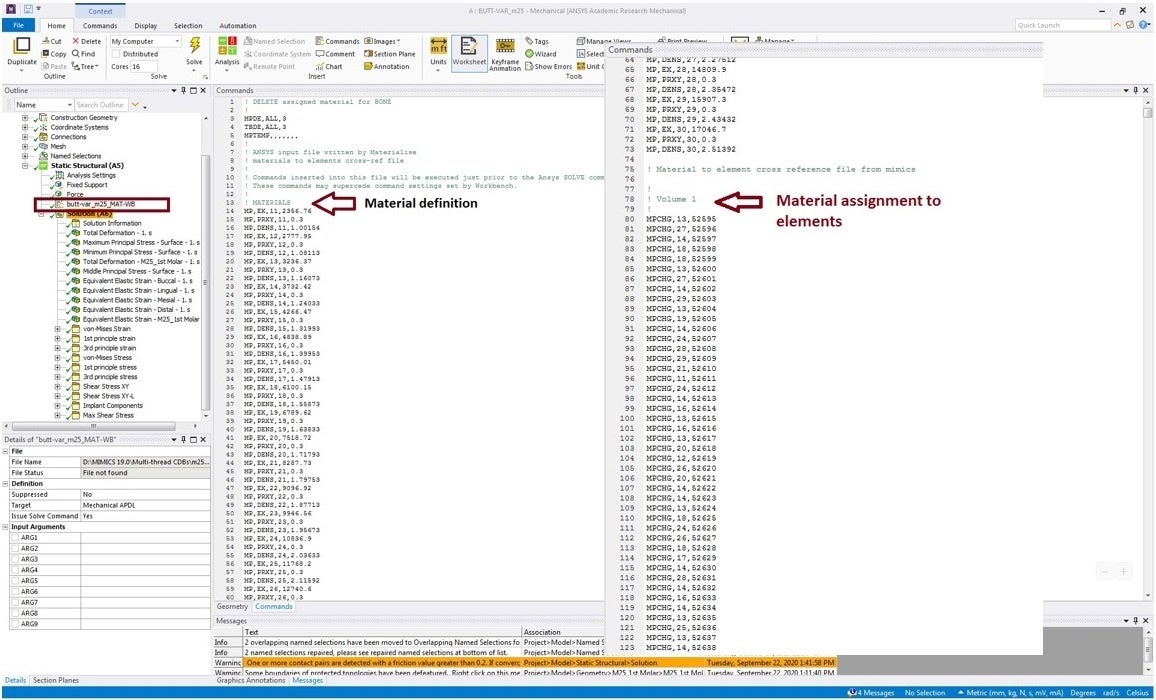

Hi, Please see the attached image. I hope this will help you understand.
