Hello,

My target is to create an array inside an array and have all parameters a the head of the assembly (to pilot thoses value with an Excel sheet).

I take a first solid and make the first array, this create a first assembly.

I click on the blue "P" button to create :

• One parameter for the nb of pieces
• One parameter for the pitch of pieces

Then i make an array of the first assembly to create a second one.

I click on the blue "P" button to create :

• One parameter for the nb of stacks
• One paramter for the pitch of stacks

Then i click on "import the components group" to have the parameters of the first array on the main assembly.

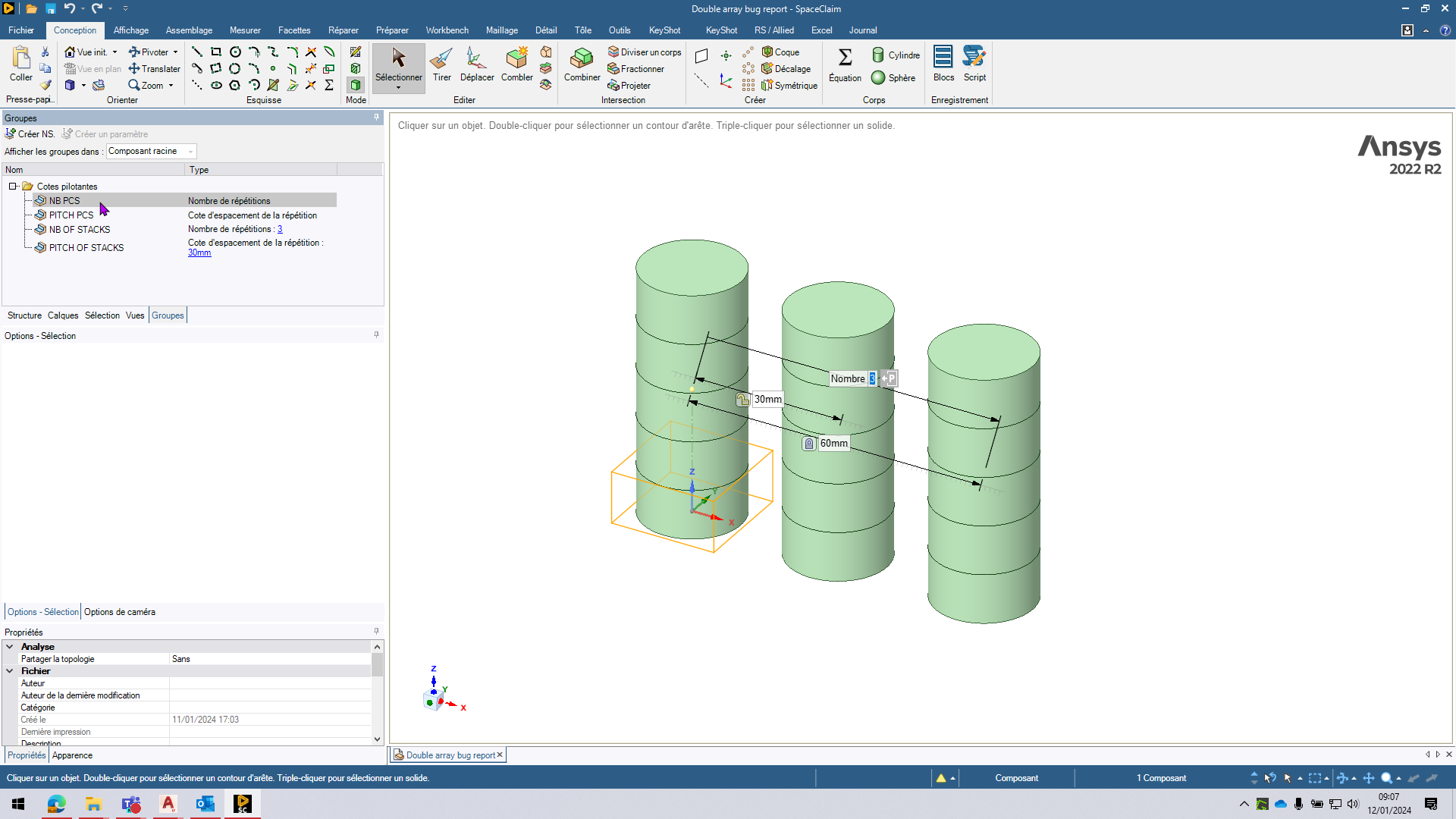

This issue is, i cannot pilot the values of the first array, the settings are there but when i click on thoses parameters, it takes into account only the second array, i cannot put a parameter on thoses values :

• One parameter for the nb of pieces
• One parameter for the pitch of pieces



•

I encounter this issue only with arrays, if i do the same with other functions, everything is ok.

Below a link with two files wich contain :

• Double array bug report.scdoc
• Double array but report.mp4

https://we.tl/t-kyJAOBVrd0 (The link expire the 19-01-2024).

PS: This is very unfortunate to not have the possibility to upload things (videos, cad files) directly on this forum like the previous forum...



[Devendra Badgujar]

Hello Benjamin,

Let me check and get back to you on this.

Regards,

Devendra
