Bounding Box details for different design parameters
-
-
Hi everyone,
I have an open model in Ansys where I measure deformation according to different parameters. The model has 48 different versions for analysis, thus I want to automatize measurement of Volume and bounding box to measure porosity of the model.

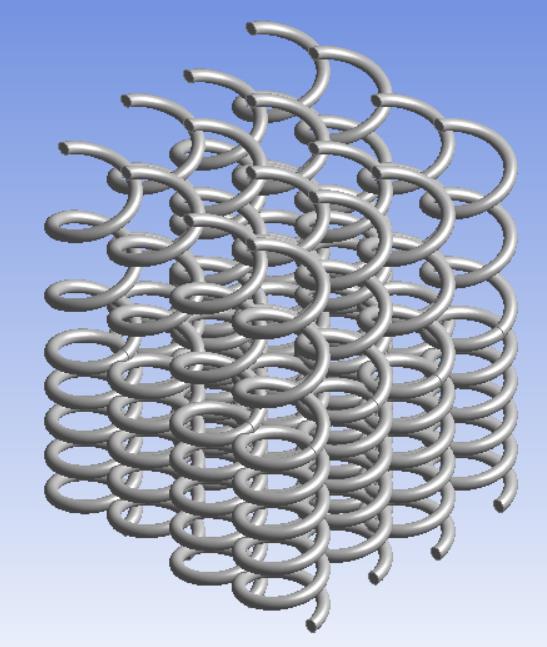

My model looks like that, as you can see its hard to create a solid box for each version (since the endpoints are not changing linear), and extract it or use "fill" function, since it has no caps or ends.

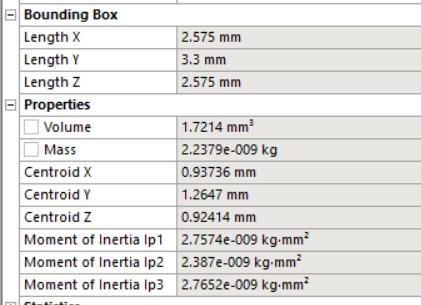

I can parametrize Volume property however Bounding Box doesn't have an option like that. I also checked apdl commands, however they are mostly related to boundary conditions.
If you know a formula to calculate bounding box dimensions or how to parametrize bounding box details that would be great. Thanks in advance,
-
-
