Bolt Circle : change line style setting

- July 13, 2021 at 11:42 am

  Dimitri Goethals
  Subscriber

  ? This post originally contained file attachments which have been removed in compliance with the updated Ansys Learning Forum Terms & Conditions

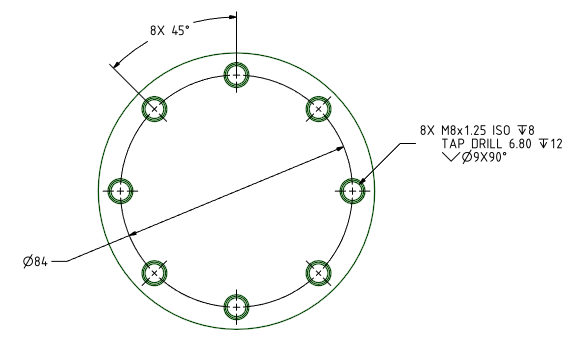

  Hi, Is there a way to change the line style setting for the bolt circle from solid to dashed? I have looked everywhere in the settings but could not find one. You can't change the line style either when you have the circle selected. Regards, Dimitri
- July 13, 2021 at 12:35 pm

  subashni.satish
  Forum Moderator

  Hello Dimitri G

  There is no option currently to set bolt thread or hidden edges to a different line style.

  Let me check with my team to see if there is any work around here.

Viewing 1 reply thread

The topic ‘Bolt Circle : change line style setting’ is closed to new replies.
