Battery thermal management CFD simulation

    • thme21139
      Subscriber

      Hello,

      I am modelling 2 battery cell using ntgk battery model and between these 2 cells i have placed a heat carrier plate to dissipate heat to a cooling medium. Now without this heat carrier plate, my simulation is running completely fine but when i am including heat carrier plate in model then solution is getting diverged.

      Can anyone please help ?

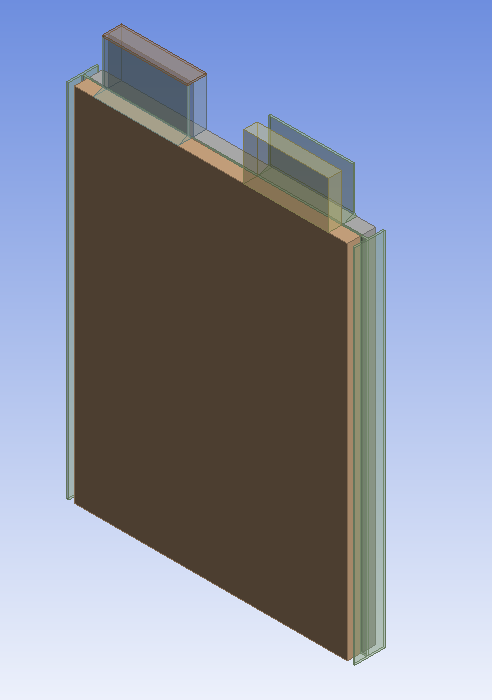

      For reference i have attached an image

    • Murari Iyengar
      Ansys Employee

      Hi, what does the mesh for the heat plate look like? It has a thin cross section, so the mesh should be of adequate resolution.

    • thme21139
      Subscriber

       Yes with fine mesh problem got resolved,thanks a lot
