Hi, all!

I have a question about how to use Bolt Preload.

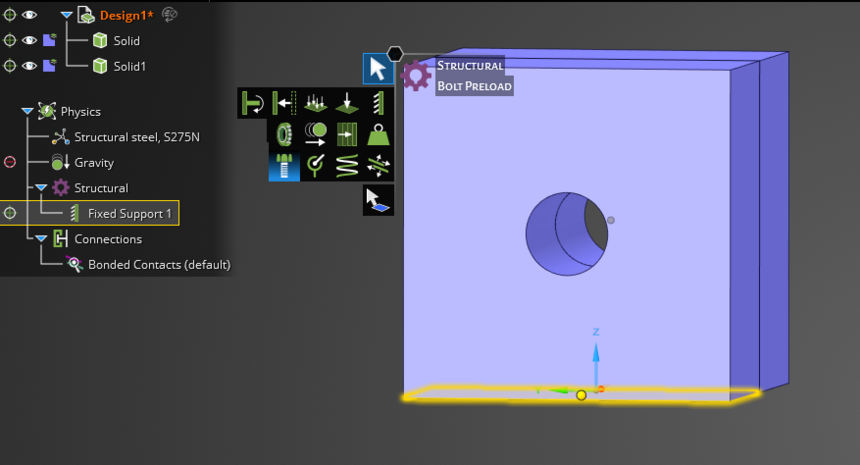

I made the system in Refine Mode like picture below;

(It has two bodies with hole, and bodies are bonded)

But, if I activate Bolt Preload, I can't choose cylinder face.. also, there's no highlight when I moved mouse pointer on the faces.



How can I apply Bolt Preload on the cylinder face?

Please give me the examples of that.



Best Regards,

Jugyeong Shin

[Charudatta Bandgar]

Hello JUGYEONG SHIN Please go through the video explanation in this query (first comment, attachment titled Bolt_preload). Bolt preload on cylindrical face is not possible if you are working in explore mode, although you can use assign tool to create a 1D beam element, and apply preload to that.  You can apply bolt preload on the cylindrical face, if you are working in the refine mode. Regards.

[JUGYEONG SHIN]

Hello Charudatta Bandgar

Thank you for your answer ;)

Your Video was so helpful!! I misunderstood Bolt Preload.

I thought that cylinder faces of holes can be used as Bolt Preload face, but it's not..

Thank you so much~~ :-)



Best Regards,

Jugyeong Shin

[Charudatta Bandgar]

JUGYEONG SHIN Hello

That is a capability in development. Will be available in explore in the future release.
