How do I take simple length measurements of a part within the design modeler, is there a ruler tool ?

[peteroznewman]

You can measure the distance between two vertices if you pick the vertex filter and click then control click a second vertex, the distance between them is shown on the bottom of the screen.

[deepmech.maurya]

hello if you want exact dimension with coordinate you can use hit point coordinate

where ever you hit it, it shows body coordinate wrt to global coordinate  what i observed



[peteroznewman]

Unfortunately, the Hit Point Normal takes the coordinates of the mouse click, which is some point on a suface.

Another tool is the onscreen ruler that can be useful.

[Mohamed Farmaan]

How to read the ruler, I don't understand how it works

[jb00]

You can also use the co-ordinates at the bottom of the screen when you've selected one of your solutions and probed two (or more) points.

[Stanko Čolak]

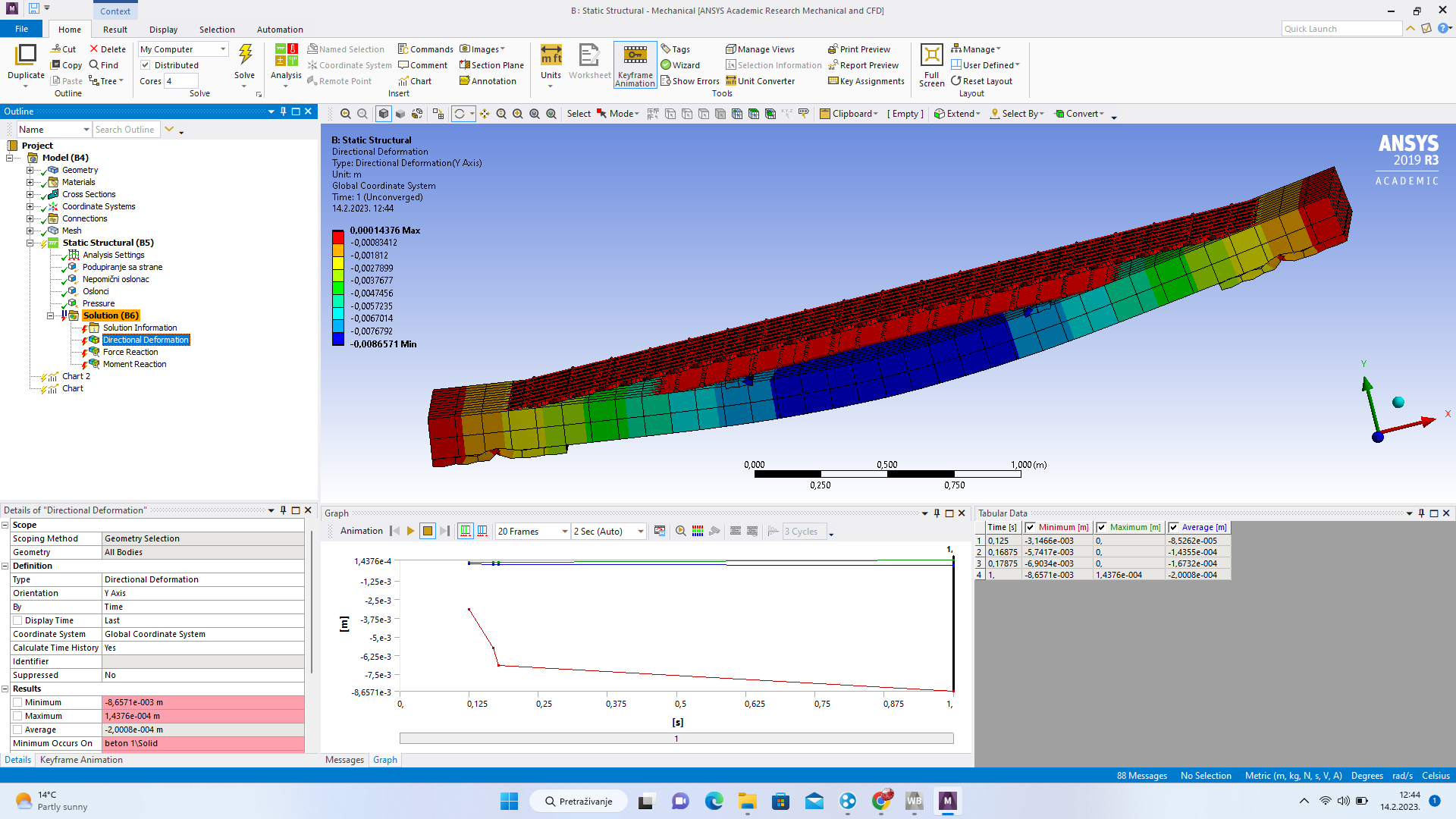

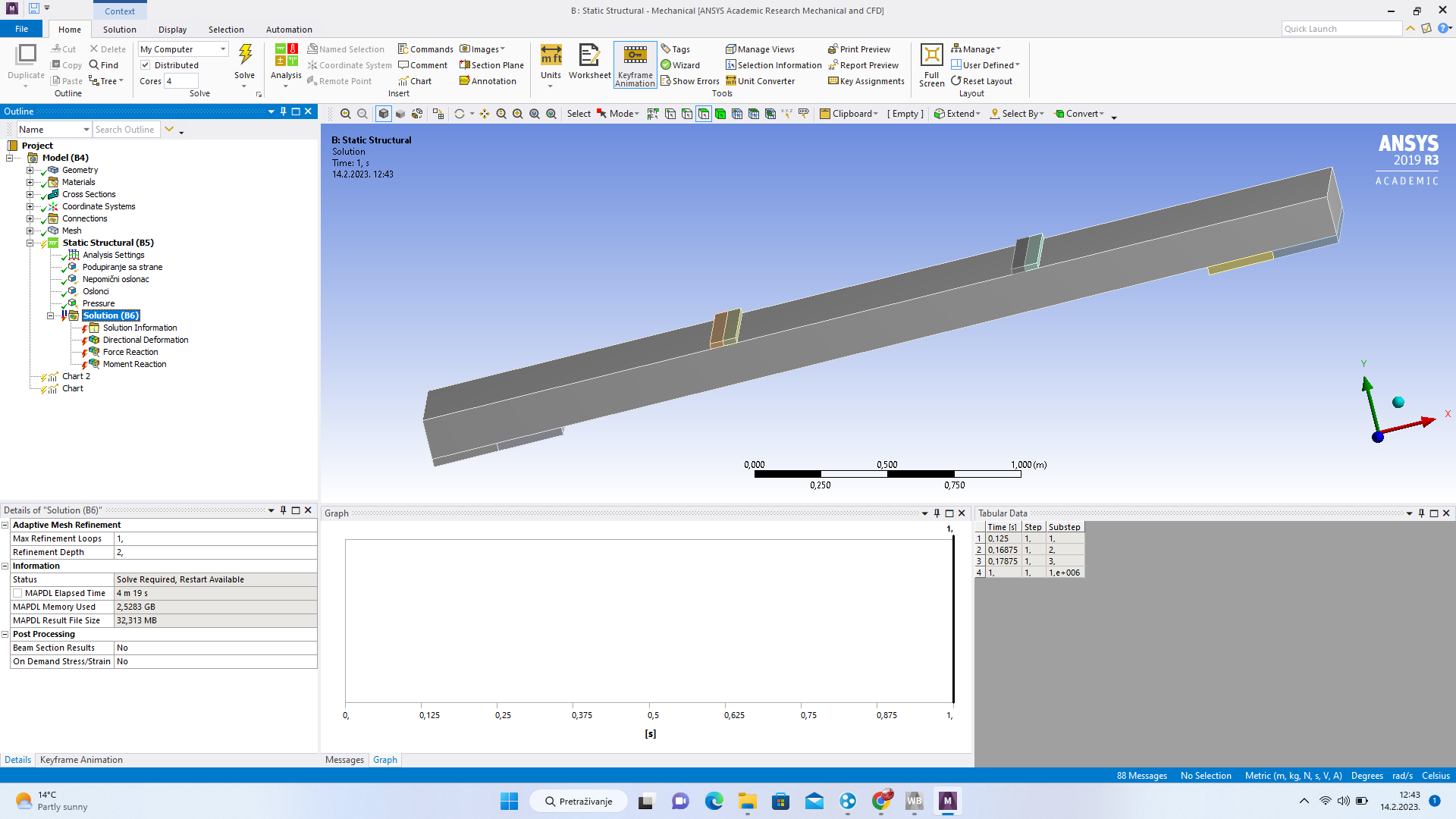

Hello everyone, I am phD student and I am working my experiment test on Ansys. I am modelling concrete block reinforced with armature, so I don`t know how to make armature as REINFORCEMENT. I am sending two pictures where you can see my problem.

Greetings,

Stanko Čolak

Opens An Image

Opens An Image

[Rob]

Please create a new topic in Structures for attention.
