Ansys Topology Optimization

- February 15, 2023 at 10:08 am

  Marcos Garcia
  Subscriber

  Hello all,
  Im running a simulation about topology optimization about a part, which is only 1 body and before that i run the static structural analysis.

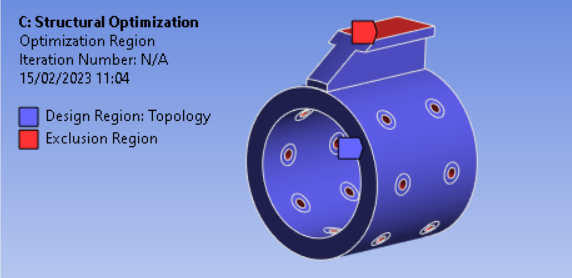

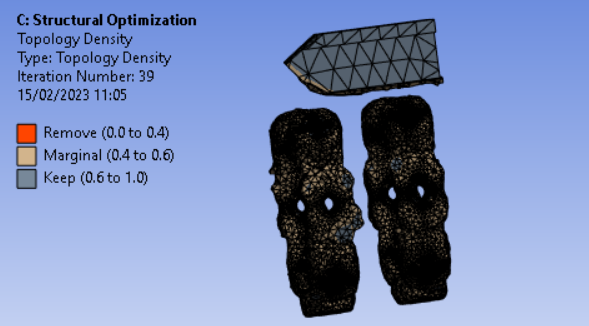

  I set a range mass between 40-60% with Density Based. After the simulation, the solution is quite strange because the software split the body in 3 differents parts without merge (on the holes, there is a cilindrical support because of the bolted connection and on the top of the object there is a fix support).
  What should I do to improve the topology optimiation of this part and get a merge solid like the original one? Could you say me any tips for that simulation related to my object or recommend another kind of method of topology optimization?
  Thanks in advance.
- February 15, 2023 at 12:25 pm

  ErKo
  Ansys Employee

  Hi

  See some of our courses and other tutorials online that might help.
  /courses/index.php/courses/topology-optimization-using-ansys-mechanical/
  https://www.google.com/search?q=topology+optimization+and+ansys&rlz=1C1GCEA_enDE1032DE1032&source=lnms&tbm=vid&sa=X&ved=2ahUKEwiDms6zwpf9AhUmcvEDHXZ7AGUQ_AUoAnoECAEQBA&biw=1920&bih=1089&dpr=1

  All the best

  Erik
