ANSYS Meshing – Quad Cells

- April 5, 2019 at 11:48 am

  Max4
  Subscriber

  Hi,

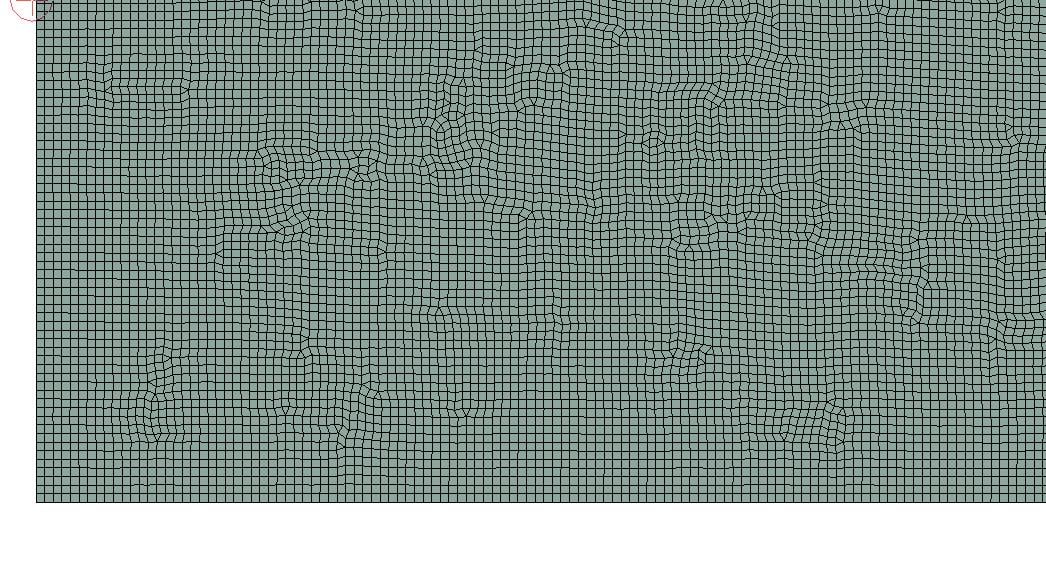

  I want to mesh a 2D-rectangle with quad cells. By the meshing of this domain, it gives triangle cells too.

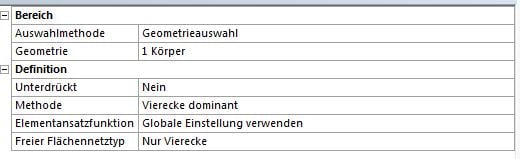

  In Definition I choose "Quad Dominant".

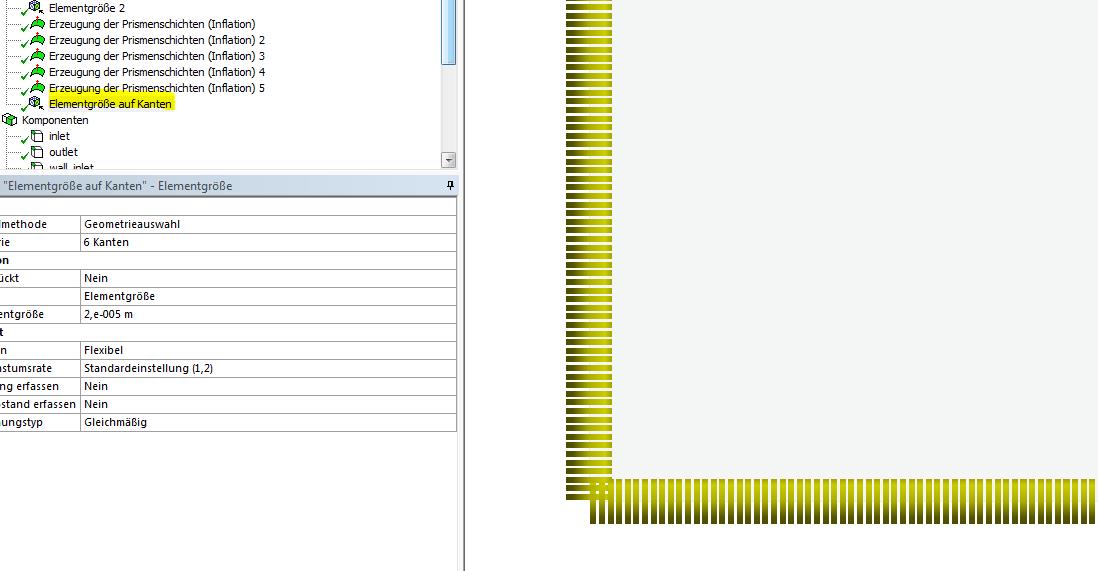

  I have set an element size on the edge of the domain with the same cells size as the size of the cells into the domain.

  Regards,

  Maxime
- April 8, 2019 at 6:24 am

  Keyur Kanade
  Ansys Employee

  check mesh generation in following tutorial.

  https://confluence.cornell.edu/display/SIMULATION/FLUENT+-+Particles+in+a+Periodic+Double+Shear+Flow
- April 9, 2019 at 6:50 am

  Max4
  Subscriber

  Thank you for your reply.

  Maxime
- April 9, 2019 at 8:25 pm

  peteroznewman
  Subscriber

  If you add a Face Meshing mesh control to that face, you will get only quad elements.
