Ansys ACP generating composite bodies attached to solid bodies

- March 5, 2020 at 1:37 pm

  Samyak97
  Subscriber

  I have created this model (in the picture), in solidworks. I want to layup the surfaces with unidirectional e-glass with epoxy resin attached to the solid leaves of leaf spring (SUP 9 spring steel material) in the model. I converted the model to .step format and imported it ANSYS ACP. But, after importing, all the geometry acts as surfaces. I still want to keep the main leaf and the third leaf as solid components (SUP 9 spring steel material) and layup the second and fourth leaf using unidirectional e-glass with epoxy resin in ACP. How can i do it?
- March 17, 2020 at 2:22 am

  Wenlong
  Ansys Employee

  Hi,

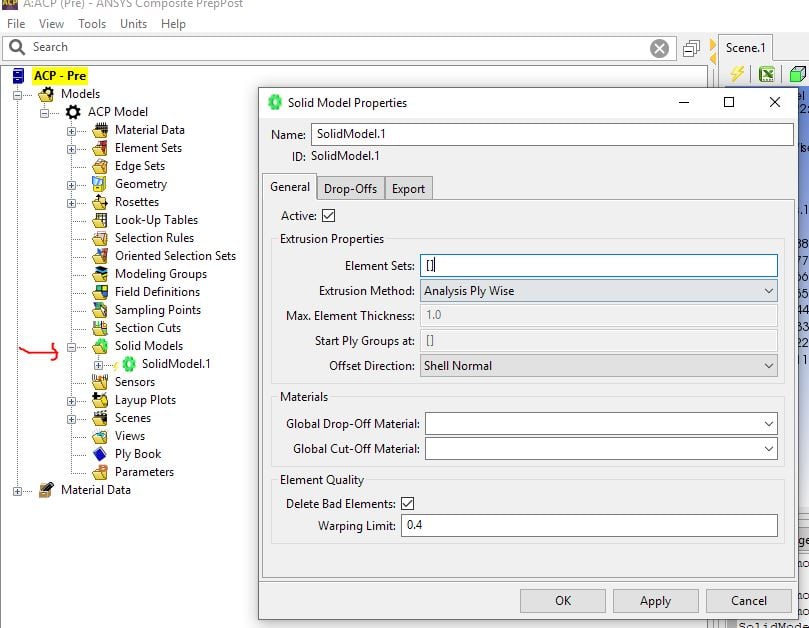

  In ACP(Pre), you can create solids from shells.

  Regards,

  Wenlong
