[Abdoon075]

Hello,

I have a problem with my last step in ANSYS - Solution (Solve). Geometry, Mesh is fine, but I still getting error:


Text: "An unknown error occurred during solution.  Check the Solver Output on the Solution Information object for possible causes."

Association: "Project>Model>Static Structural>Solution"

I already tried everything..

Help me please.



[peteroznewman]

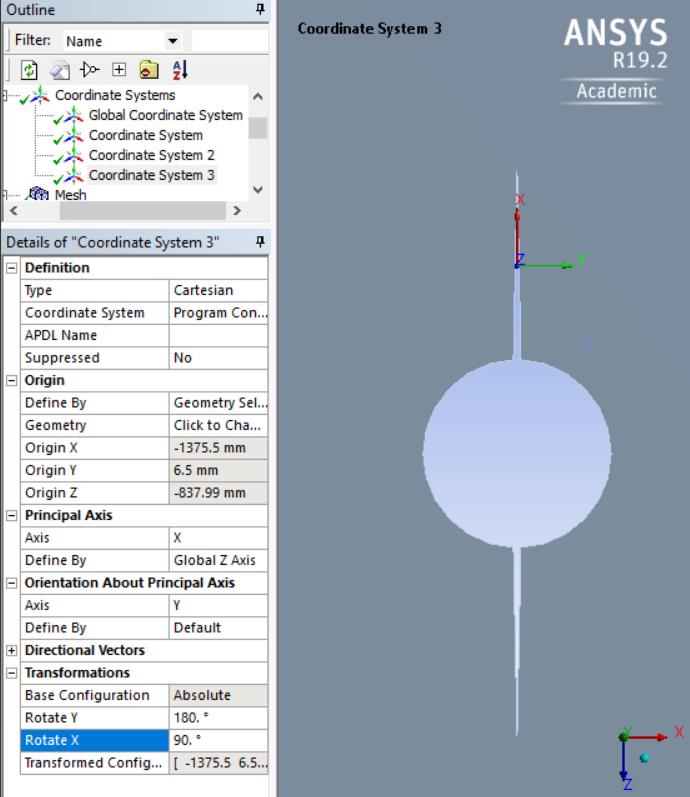

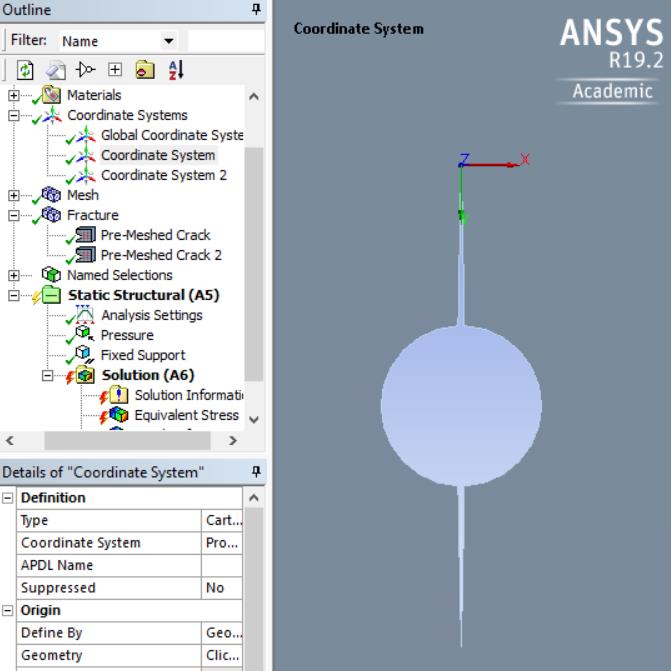

You put the Pre-Meshed Crack coordinate system in the wrong place and it is pointing in the wrong direction.

Put the origin of the Pre-Meshed Crack at the center of the two faces of the crack.  Make the X axis point toward the crack tip, and the Y axis points in the direction of one of the crack faces.

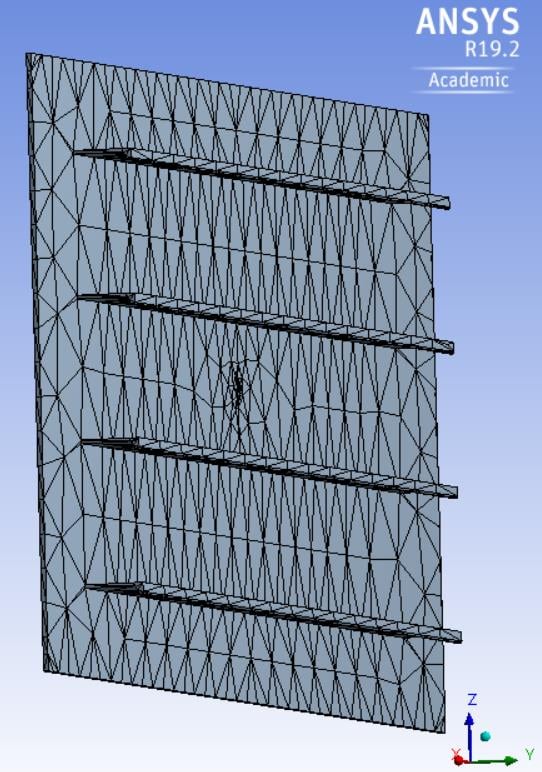

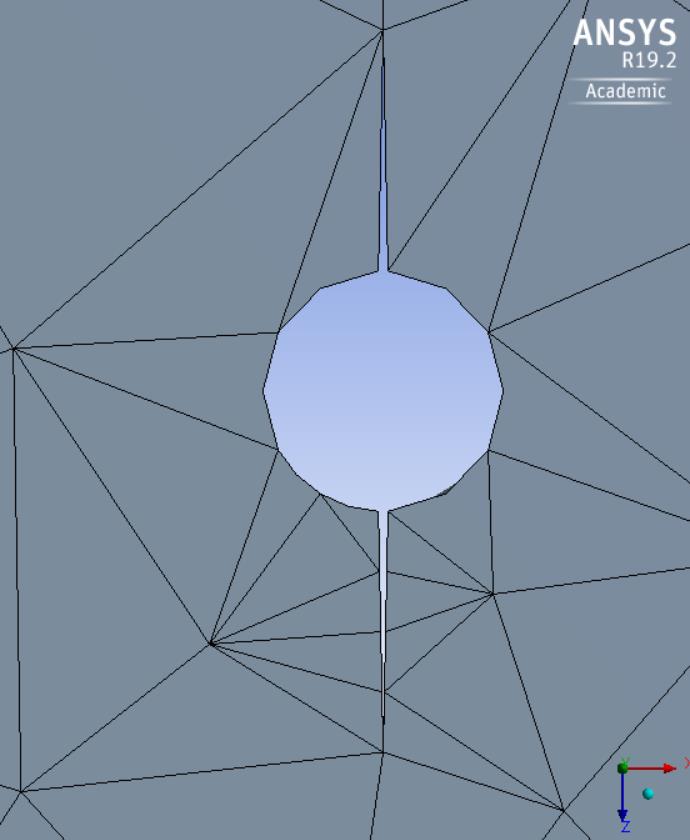

You have a very coarse mesh that is inappropriate for Fracture calculations. The crack shown above is represented in the few elements at the center of the large thin-walled flat plate, between the two center ribs.

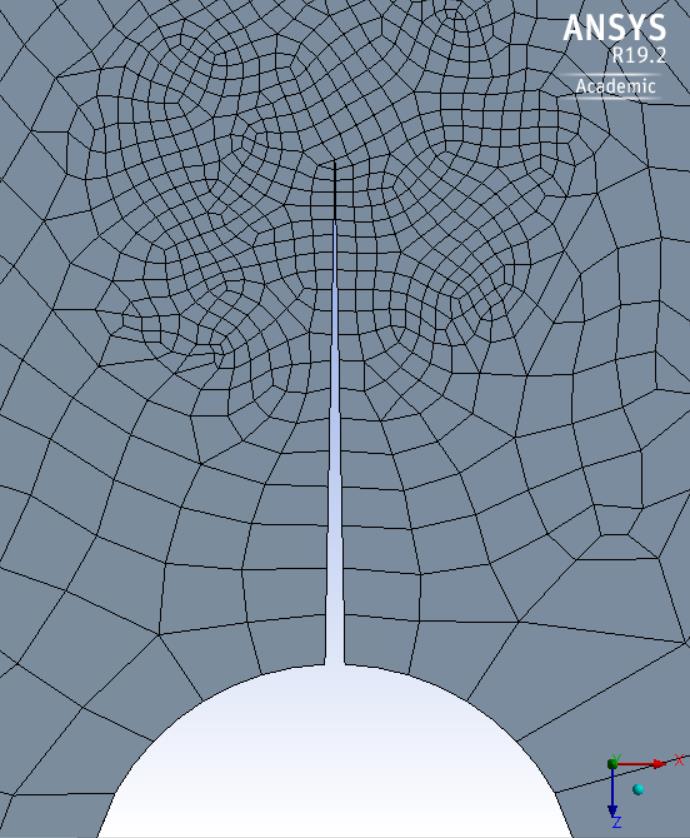

Here is a more appropriate mesh.

[Abdoon075]

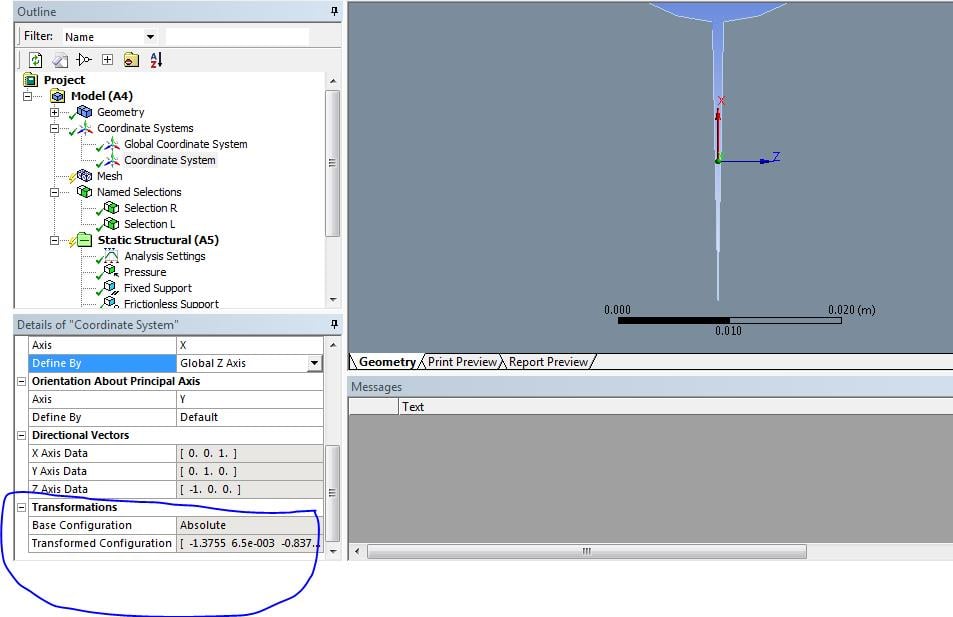

I really appreciate your response sir , But I can't make the X-axis toward the tip

[Abdoon075]

 Error Text:

1-  " An error occurred when the post processor attempted to load a specific result. Please review all messages."

2-  " The result data for VCCT (G1) is not contained in the result file."

Warning text:

1- " You have requested a fracture result for a crack that is undefined: CINTG1"

2- " An iterative solver was used for this model.  However, a direct solver may enhance performance.  Consider specifying the use of a direct solver.  Refer to Troubleshooting in the Help System for more details."

3- " The fracture parameters computed during solution may be incorrect. Check the Solver Output on the Solution Information object for possible causes."



Help me please



[Abdoon075]

How to make the same mesh setting like the last image you attached ??
