Geometry Issue; Faces of Sheet is not on XY Plane

- November 11, 2020 at 12:38 pm

  hassa124
  Subscriber

  Good afternoon,

  I created a 2-D Maxwell motor and wanted to analyze it, but the error code:
  Part "Region": Faces of sheet is not on XY plane

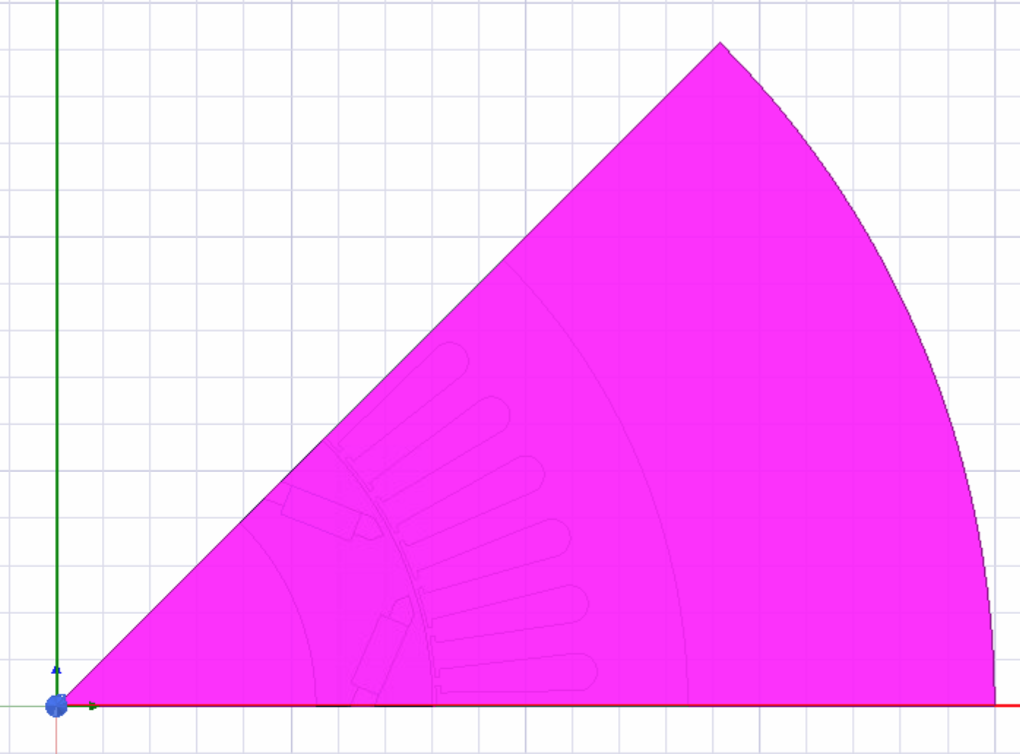

  The Region being below
- November 11, 2020 at 12:57 pm

  Keyur Kanade
  Ansys Employee

  As far as I know it should in XY plane. If it is not in XY plane, it will throw error. nPlease make sure that your 2D geometry is in XY plane only. nPlease see help manual for more details about these commands. nRegards,nKeyurnGuidelines for Posting on Ansys Learning ForumnHow to access ANSYS help linksnn
- November 11, 2020 at 1:21 pm

  hassa124
  Subscriber

  How do I make sure it's in the XY plane? I checked the global coordinate system and it didn't have any issues.n
- November 12, 2020 at 9:53 am

  Keyur Kanade
  Ansys Employee

  Let Maxwell expert pitch in n
- November 12, 2020 at 1:11 pm

  NKC
  Forum Moderator

  nAs a preliminary check, change the orientation to left or right and see if you are seeing anything out of the plane.nTake a look at the below example.nIf everything is in XY plan you should see the screen as shown belownnnregards,nNavyan
- November 16, 2020 at 7:04 pm

  hassa124
  Subscriber

  I've checked, and everything seems finenBut the issue persistsnn
- November 17, 2020 at 5:14 pm

  NKC
  Forum Moderator

  Hi,nCan you help me understand how you created this 2D model.nCreated from RMxprt (or) Imported a dxf file (or) Created from a imported 3D model?.

Viewing 6 reply threads
