Z Normal in DXF-DWG Export

- March 23, 2021 at 12:01 pm

  Andrea Ventura
  Subscriber

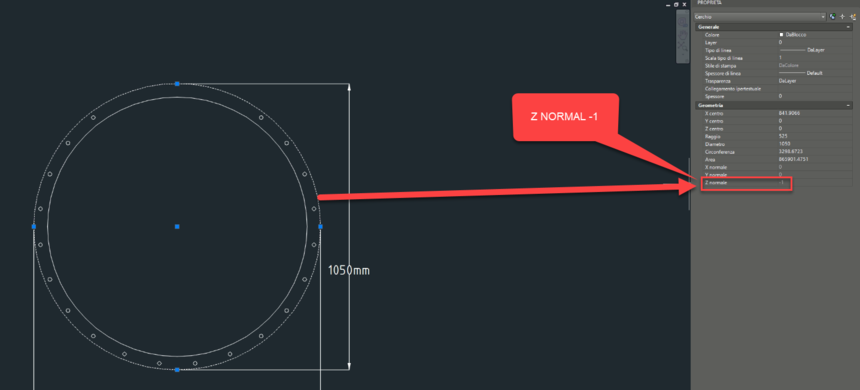

  Hi, Recently SpaceClaim starts to export DXF/DWG in different way than before. Circles (holes) in DXF have a parameter called "Z Normal", it can be 1 or -1 (in our cases). Before latest version in the same exportation the Z Normal was 1 (or -1) for ALL circles. All circles had the same parameter. Now, with latest release, it's not the same. Some circles have "Z Normal = 1" and other "Z Normal = -1". This causes in some software (for Example Bysoft from Bystronic, one of the most important sheetmetal laser producer) errors. I'm not an expert on AutoCAD and DXF/DWG file structure, but this propriety is visible in AutoCAD. Here the external circle haz Z normal -1
  Here the internal circle has Z normal 1

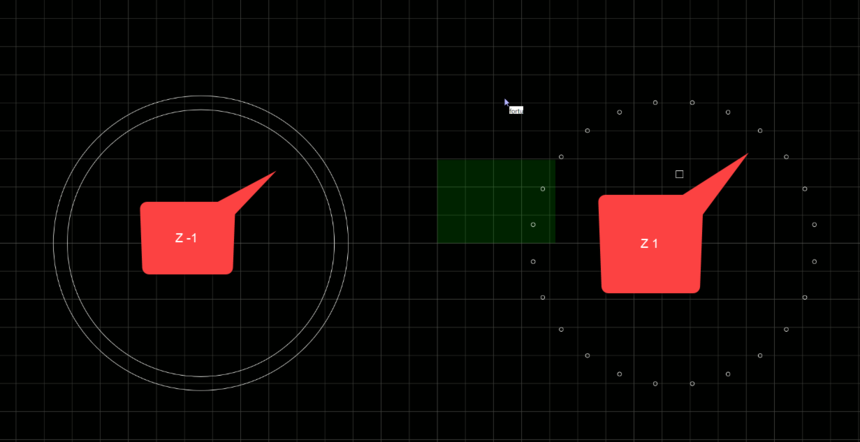

  Result on Bysoft, the shape isn't connected, seems Z-1 circles are mirrored

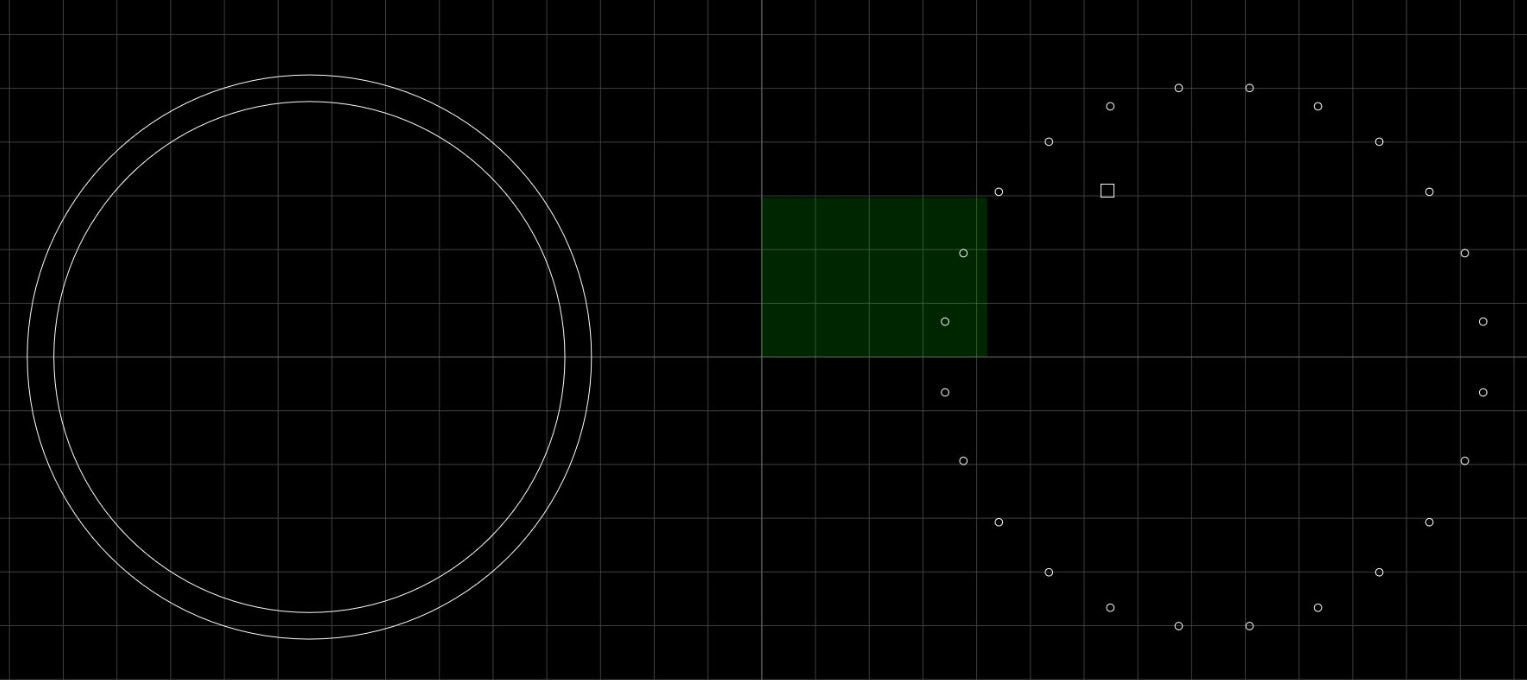

  Here the mirrored circles are visible, but sometime the risk is to produce part without some hole. Can you investigate with programmers? Thanks
- March 23, 2021 at 3:28 pm

  Andrea Ventura
  Subscriber

  Here the files (you can try to generate the DXF from the STP)

  🛈 This post originally contained file attachments which have been removed in compliance with the updated Ansys Learning Forum Terms & Conditions
- March 24, 2021 at 6:36 am

  Subashni Ravichandran
  Forum Moderator

  Hello DrkAngl

  Let me check with my team on this.
- March 24, 2021 at 6:54 am

  Subashni Ravichandran
  Forum Moderator

  Hello DrkAngl

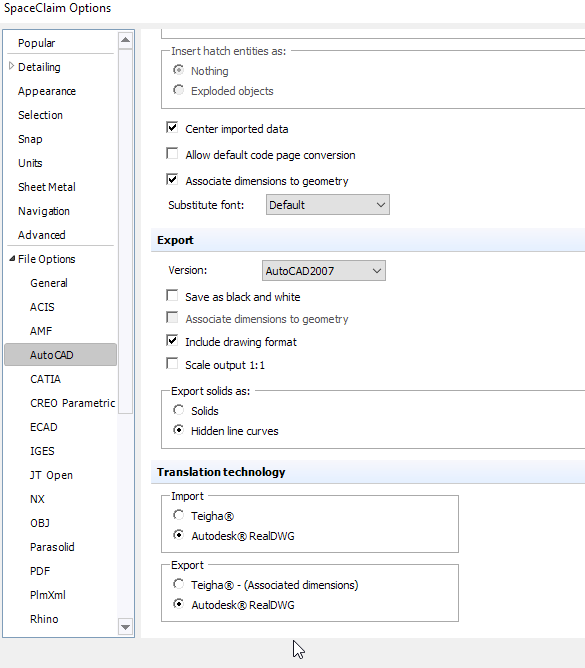

  Could you try changing the SpaceClaim to Autocad export Translation Technology setting from 'Teigha' to 'Autodesk RealDWG' ? (refer image below)
- March 24, 2021 at 4:11 pm

  Andrea Ventura
  Subscriber

  Customer tried to set Autodesk RealDWG as export format but it not solved.
- March 30, 2021 at 9:40 am

  Andrea Ventura
  Subscriber

  Here the 2 different DXF file (one created with Ansys SpaceClaim 2021 and one with SpaceClaim 2020).
  Can you ask to programmers?

  🛈 This post originally contained file attachments which have been removed in compliance with the updated Ansys Learning Forum Terms & Conditions
- April 6, 2021 at 2:02 pm

  Subashni Ravichandran
  Forum Moderator

  Hello DrkAngl

  I have reported a bug for this issue. Bug number 436851
- April 30, 2021 at 10:05 am

  Andrea Ventura
  Subscriber

  Hello Subashni any news about it?
- June 22, 2021 at 9:22 am

  Andrea Ventura
  Subscriber

  Subashni Please can you inform when a fix is available?
- June 22, 2021 at 11:52 am

  Subashni Ravichandran
  Forum Moderator

  Hello DrkAngl

  This bug is marked resolved for the upcoming version.
  - July 14, 2021 at 8:15 am

    Andrea Ventura
    Subscriber

    Subashni customer want's to know if the fix is in Ansys 2021 R2 released after 9 September
- June 22, 2021 at 11:57 am

  Andrea Ventura
  Subscriber

  ok thanks
- July 16, 2021 at 8:46 am

  Andrea Ventura
  Subscriber

  Subashni I downloaded 2021 R2 Version and tried to export a DXF and I get the same result (mirrored holes).

  Can you verify with developers if they think the bus is fixed?
- July 16, 2021 at 9:55 am

  Subashni Ravichandran
  Forum Moderator

  Hello DrkAngl

  I have updated the development team that this issue is not resolved. I will keep you posted as I hear from them
  - September 28, 2021 at 10:10 am

    Andrea Ventura
    Subscriber

    Subashni any news
- September 28, 2021 at 11:02 am

  Andrea Ventura
  Subscriber

  Please can you change status "NOT ANSWERED" ? Thanks
- December 3, 2021 at 3:34 pm

  Andrea Ventura
  Subscriber

  The problem is not solved.
