Why is the grid parameter set the same, but MAPPING SUMMARY is not 100%

    • January 17, 2019 at 1:53 pm
      h395523899
      Subscriber

      Model data is as follows


      Https://studentcommunity.ansys.com/thread/how-to-improve-dynamic-mesh-parameters/

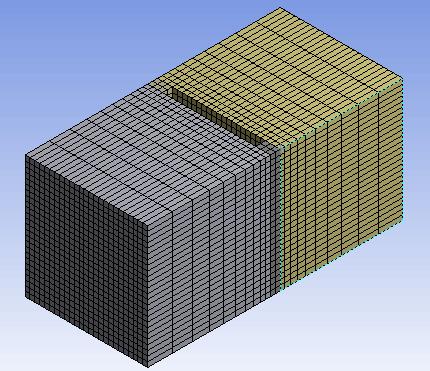

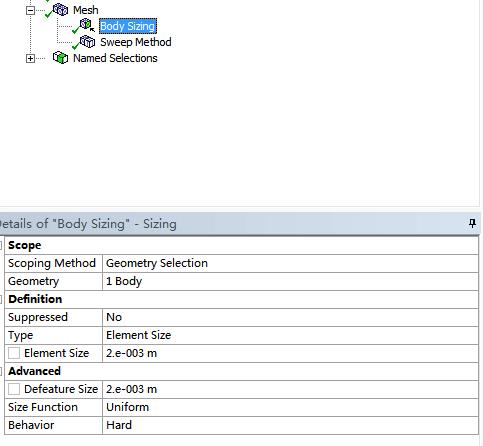

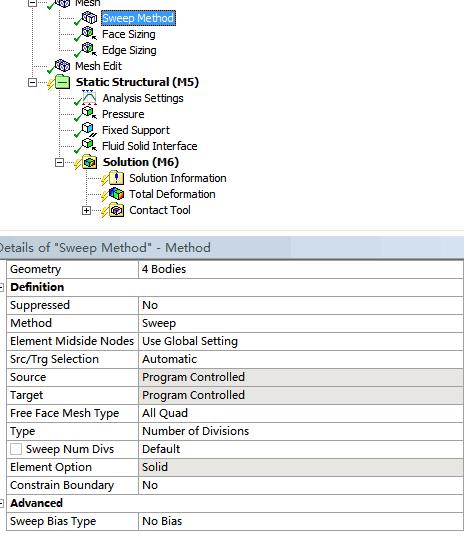

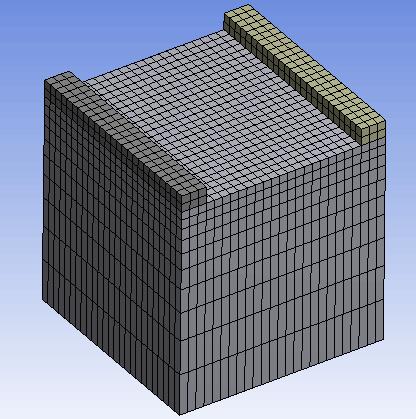

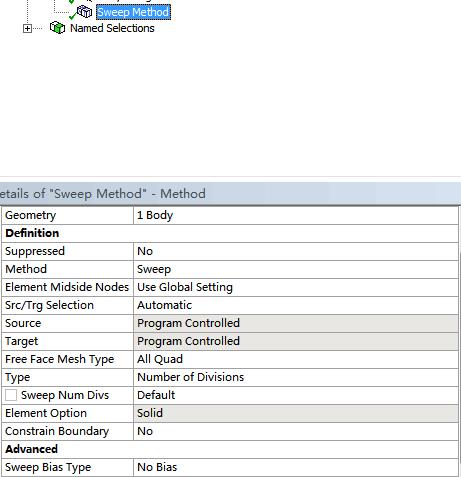

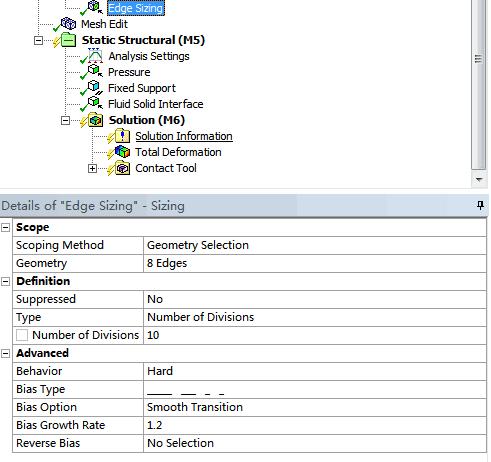

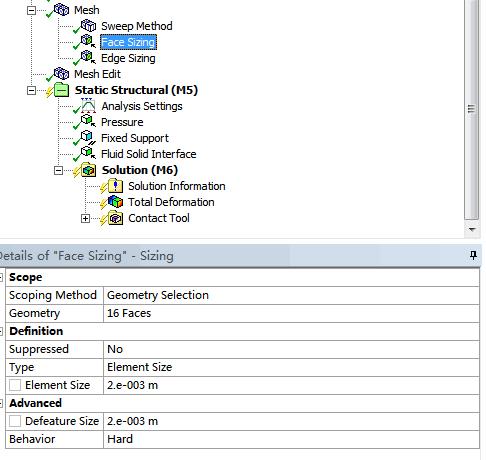

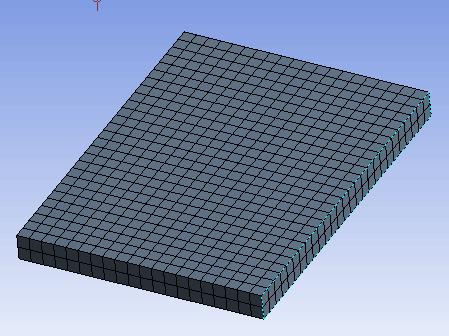

      My flow field and structure field grid settings are as follows


      flow field



      structure field



      Most grid settings are 0.002mm


      Only the length of the model in the structure field is set to bias

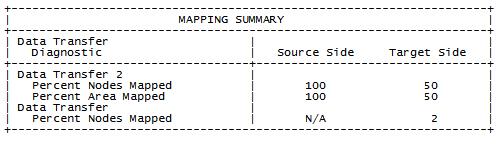

      Is there any other factor influencing the MAPPING SUMMARY besides the grid?
