I'm currently meshing a clean and watertight CAD model in Fluent Meshing. But I found that the geometry features is better captured by the WTM than outline view with same size control.

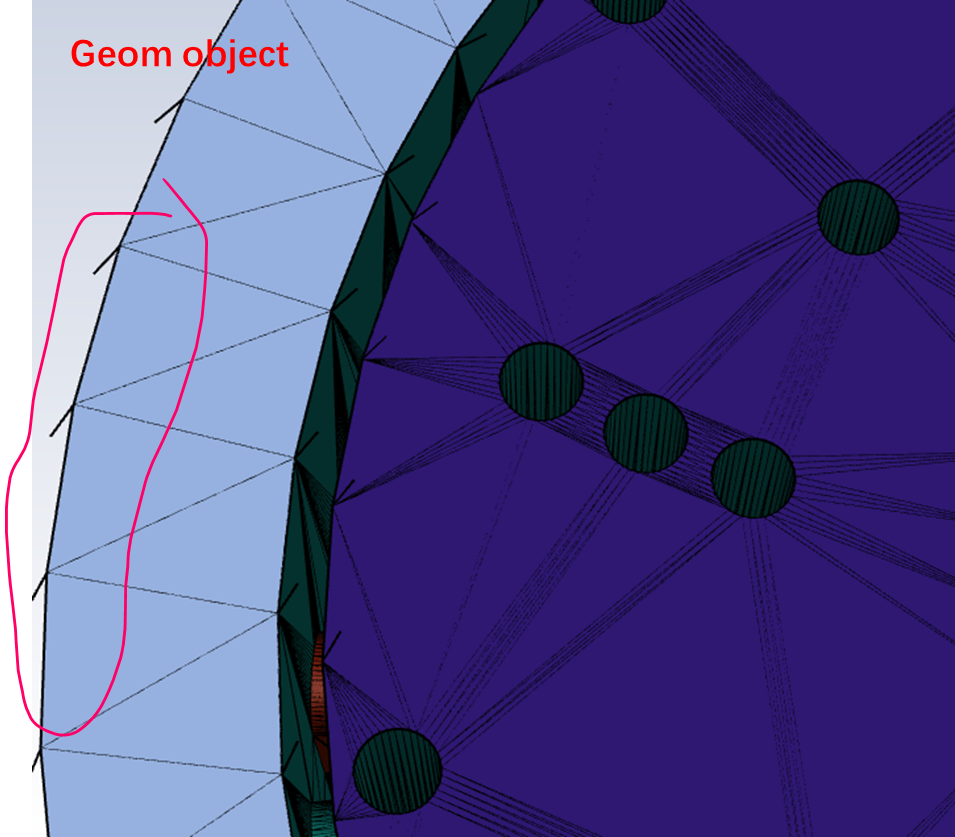

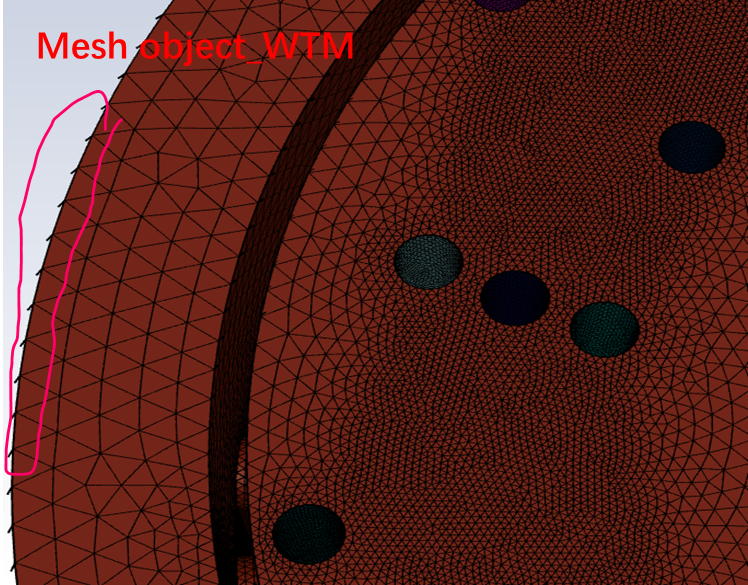

A comparison with edge zone enabled is shown below. Specifically speaking, the imported geom object in the two processes is same. The size control in the two processes are assured to be same.  However, when I draw the mesh object, one of differences is observed that the feture edge zone is refined in the WTM while in the Outline view, the edge zone is same as the origin geom object.







Here is my questions. Can I get the similar mesh object in the outline view process like WTM since self-intersection occured in the WTM workflow?

Any suggestions would highly appreciated.
