Hello everyone..!

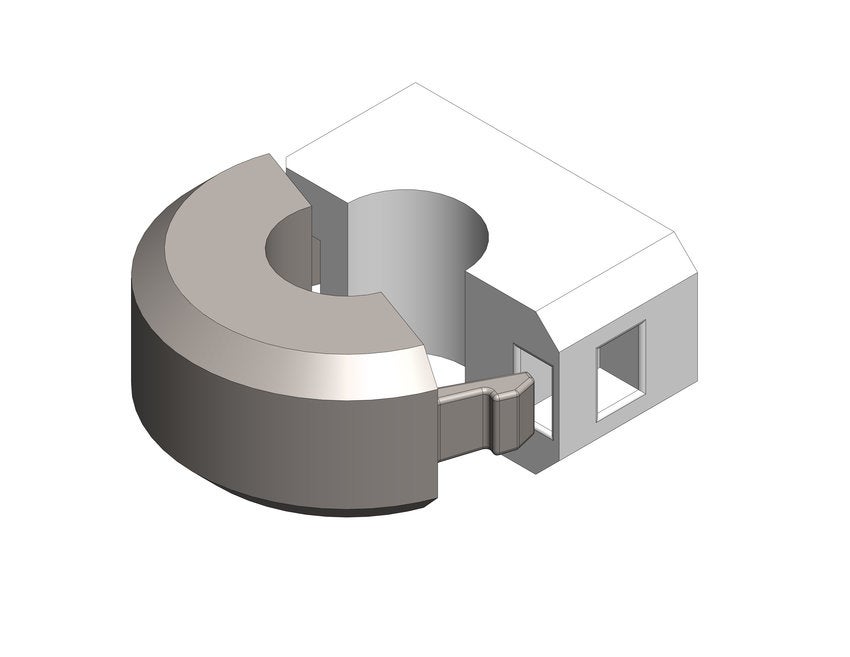

I have attached two photos. Those are for a locking mechanism which needs stress analysis.

I use ANSYS workbench to make stress analysis.

Here are my boundary conditions

The part on the right side is fixed on its rear end.

The part with snap male profile - this needs to travel 20 degrees to get locked into the other part.

The both are connected at a hinge point and will rotate freely.

I have tried with my basic knowledge in ANSYS workbench. But unable to get the solver converge / run fully. Every time I am getting an error messages.

Please guide me with the settings that i should follow at each level (from contacts to analysis settings).

[Aniket]

Please search the forum for snap fit and you should be able find many posts asking similar question. Also search youtube for similar applications:
Here is one tutorial using AIM:
Simulation of Snap-fit Insertion with Non-linear Contact Using ANSYS AIM - YouTube
But you should be able to find others using Mechanical as well.
How to Setup and Solve an Interference Fit using Ansys Mechanical - YouTube
Please try it and let us know if you have any specific questions.
-Aniket
