[vinaychandrakar11]

Hello Everyone,

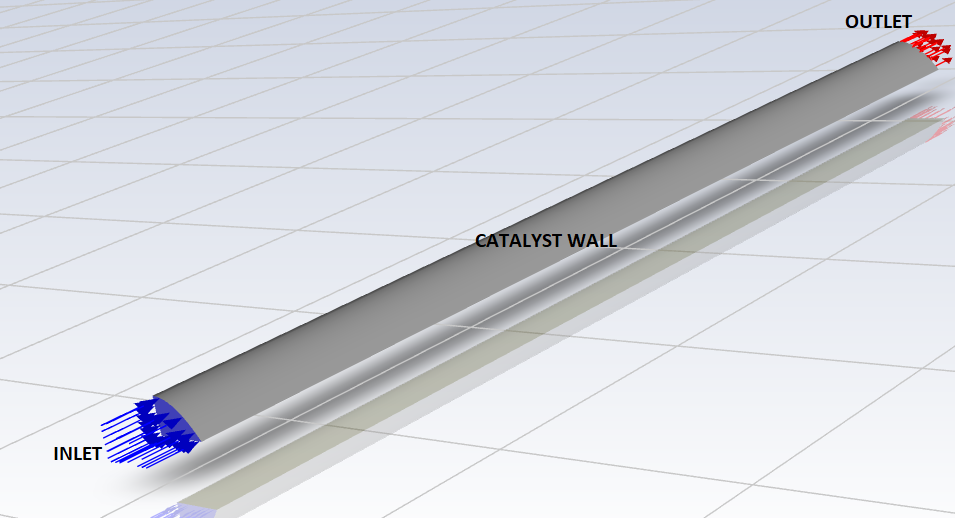

I am trying to simulate the flow of gaseous mixture in the channel. walls of the channel are catalytic and wall surface reactions are happening. I wrote a UDF for surface reaction rate and successfully compiled and its showing in function hooks. geometry of problem is shown below.

[vinaychandrakar11]

Can anyone help me with the above mentioned problem?

[Rahul Kumar]

Hello,
Can you please make sure that the UDF is compiled right? You also might want to check where the reaction mechanism is being pulled while solving. You can plot a contour of, say, species and check if it makes sense.

[vinaychandrakar11]

Hi RK UDF is successfully compiled without any warnings and errors and its hooked properly, I defined the species in orders and reactions in the mixture template panel same as my UDF, but still not getting my reaction rate.
I had given random rate exponent in mixture template panel (all is equal to 1), because I think it will take directly from the UDF. Is this correct ?

[DaShuai_Chen]

hello´╝îhave you solved this problem yet´╝ƒ I urgently beg your help

[MIHIR DUTTA]

Hi vinaychandrakar,

I am working on ansys fluent and trying to compile reaction mechanism by UDF code. However, i am getting lot of errors ans warnings.



I need  your help.
