[Chim6120]

Hi

I have read and tried all sort of ways to import geometry to do simulation in Steady-State Thermal. For instance, I tried to open the Workbench as Administrator and changed CAD Configuration Manager to all user. Yet it is not successful.

Info: In the beginning, I managed to do attach for once after installed the software. However it didn't go well following days.



Please advise.

[Aniket]

Ansys staff can not download images on the student portal, so if you want to reach a larger audience to get answers from, please insert the images inline.

Also, please mention the file format that you are using. Have you tried to open it SpaceClaim first?

-Aniket

How to access Ansys Online Help Document

How to show full resolution image

Guidelines on the Student Community

How to use Google to search within Ansys Student Community



[Chim6120]

Hi Aniket,



Thank you for your reply.



I have tried to open it SpaceClaim.





[Chim6120]

Hi Aniket,

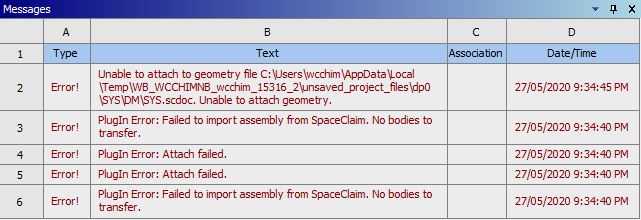

Below is error message too.

I



Please advise

[Chim6120]

Hi Aniket,

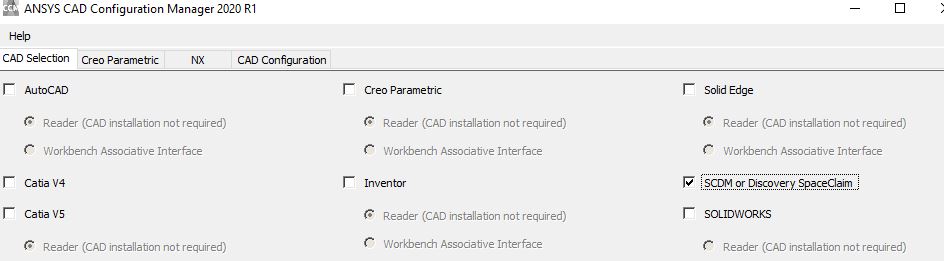

I have even tried to click 'SCDM or Discovery SpaceClaim' in CAD Config Manager. Yet still failed.

Please advise.

[Aniket]

Are you able to import a simple cube created in SpaceClaim to Mechanical? Error there says no valid bodies, what do you see in SpaceClaim?

-Aniket

How to access Ansys Online Help Document

How to show full resolution image

Guidelines on the Student Community

How to use Google to search within Ansys Student Community



[Chim6120]

Hi Aniket,

Thank you for your reply.

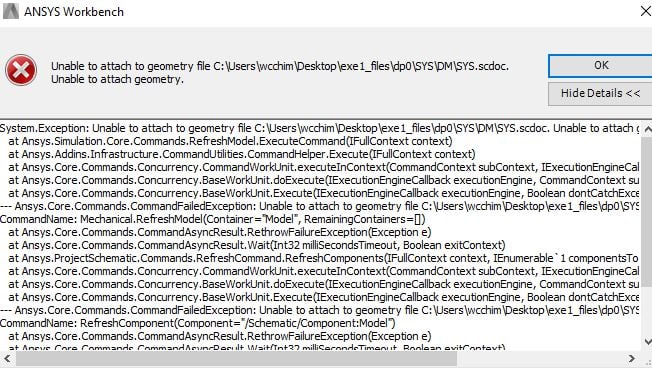

Actually I was trying to import 2D rectangle body from SpaceClaim to Mechanical, but failed. It shows error message as such.





Please advise.



[Aniket]

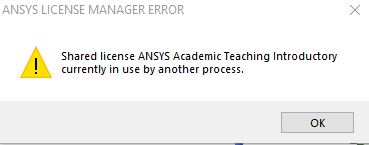

It seems like you don't have an available license. It is possible that you had your original model open while trying a 2D rectangle. Close all workbench sessions. (restart your machine if possible) And then try the 2D rectangle body.

If that succeeds, then grab a screenshot of SpaceClaim window of your actual geometry and post it inline

[Chim6120]

Hi Aniket,

Thank you for your reply.



I have tried it as you advised, and yet failed. Refer to attached picture.



Please advise

[Chim6120]

Hi Aniket,

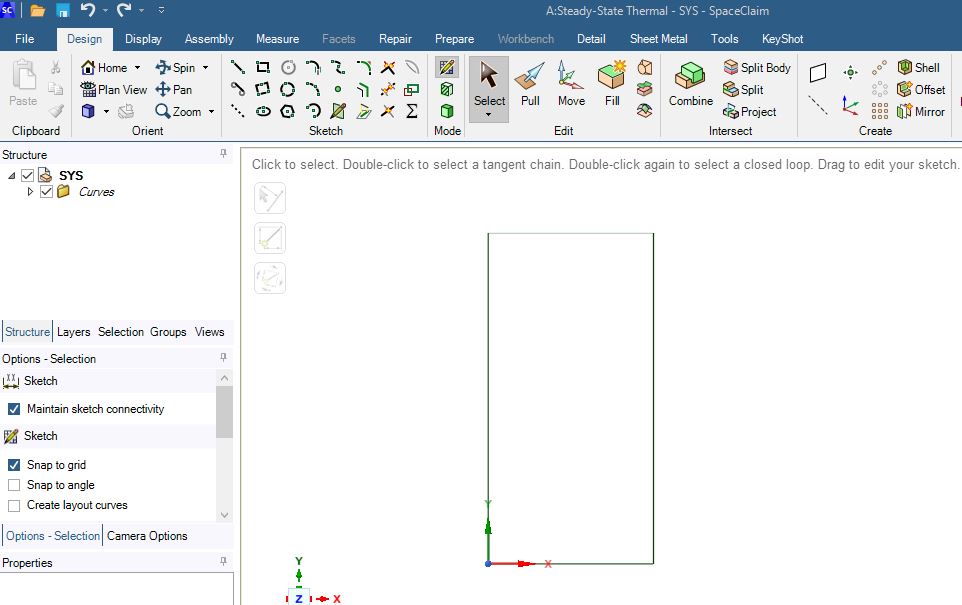

Below is screenshot of SpaceClaim window of my actual geometry.



[Chim6120]

Hi Aniket,

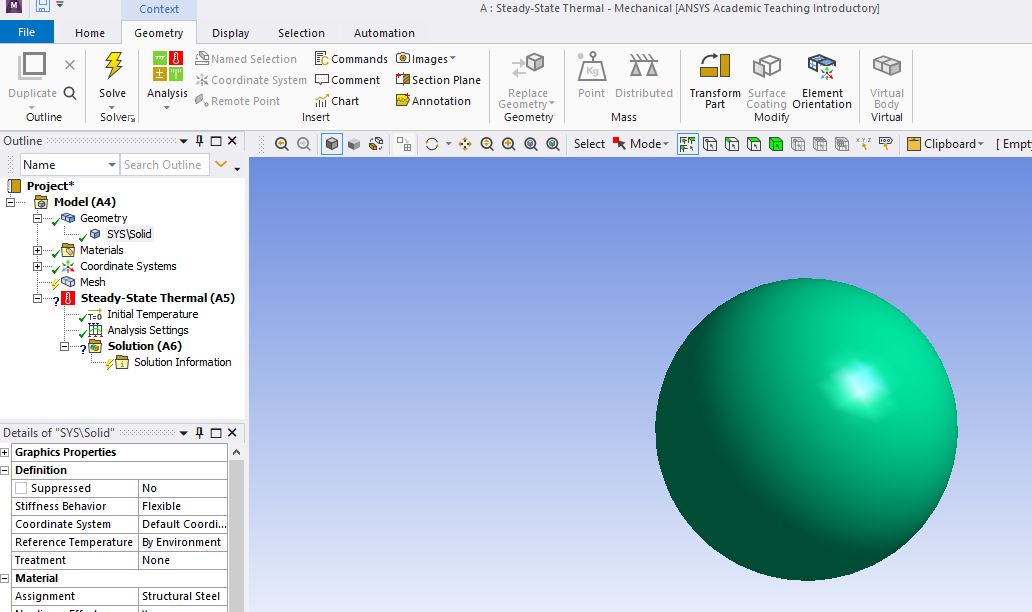

Surprisingly I can import simple 3D in Mechanical. Refer to attached picture below. However it doesn't work for 2D.

Please advise

[Aniket]

You don't have a body in SpaceClaim you only have curves. Select all curves and use "Fill" tool to create a surface. that should come through.

[Chim6120]

Yes, Aniket.

I managed to import the entity (surface) to Mechanical now. It's solved.



Thank you very much.



[Aniket]

Please mark the appropriate response as a solution to help others.

[Chim6120]

Hi Aniket,



I had marked it.



Thank you
