The internal flow simulation does not recognize the bodys

TAGGED:
    • February 8, 2021 at 8:09 pm
      igormaia
      Subscriber

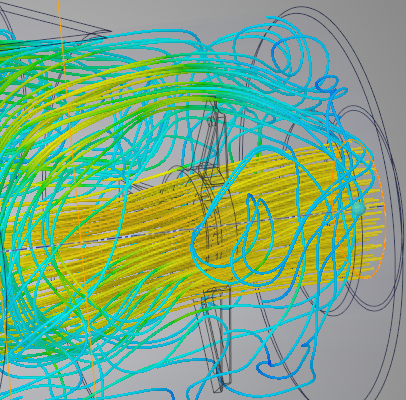

      For this analysis, I've used an assembly in SolidWoks, exported as .STEP214, .ACIS and .IGES. However, in all of them, the air flow does not consider the other bodys in the original assembly, just the external case. What can I do to make all the parts of the assembly recognizable in the simulation of the Ansys Discovery live 2020R2?
    • February 9, 2021 at 5:32 am
      Charudatta Bandgar
      Subscriber

      Hello Igor Ribeiro

      Will it be possible to send the files so that I can look into them? I have sent you the secure transfer link.

      Regards.

    • February 19, 2021 at 6:19 am
      Charudatta Bandgar
      Subscriber

      Sorry for the delayed response Igor Ribeiro

      I have sent the files to the developers, I tried testing the files you shared, and I agree it is not being considered in the simulation. I will get back to you.

      Regards.

    • February 19, 2021 at 6:38 am
      Charudatta Bandgar
      Subscriber

      I have filed a bug ticket (412549) to understand better.

Viewing 3 reply threads
  • The topic ‘The internal flow simulation does not recognize the bodys’ is closed to new replies.
