Tensile Test on composite panel

- November 7, 2020 at 6:10 am

  FahadShafi
  Subscriber

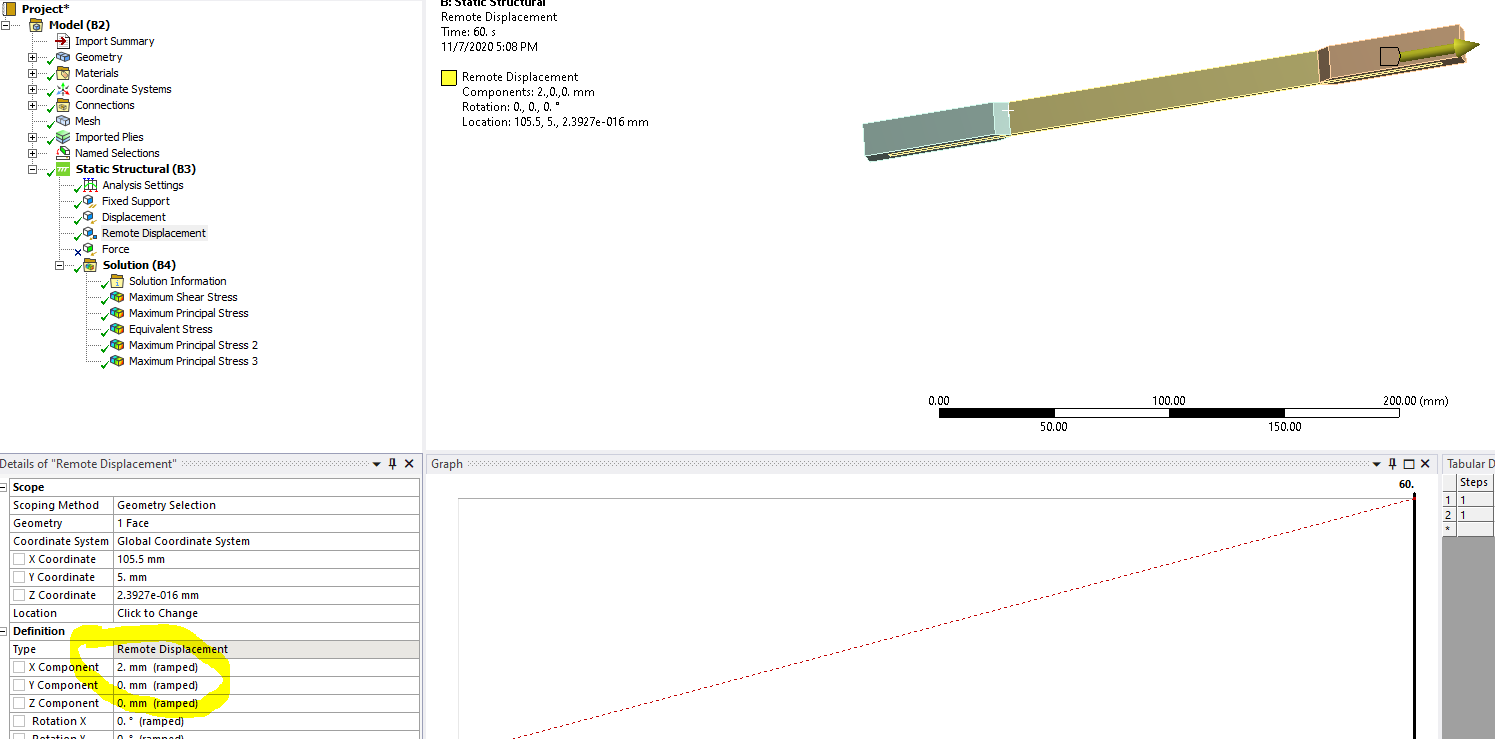

  Hey, I am doing tensile test simulation on carbon fiber epoxy resin composite panel. In the standard test, a rate of displacement 2mm/min is applied, should I apply 2mm displacement in static structural or should I consider displacement for one second?
- November 7, 2020 at 4:16 pm

  peteroznewman
  Subscriber

  nYou can apply the 2 mm displacement in 1 second in Static Structural.n
- November 8, 2020 at 5:49 am

  FahadShafi
  Subscriber

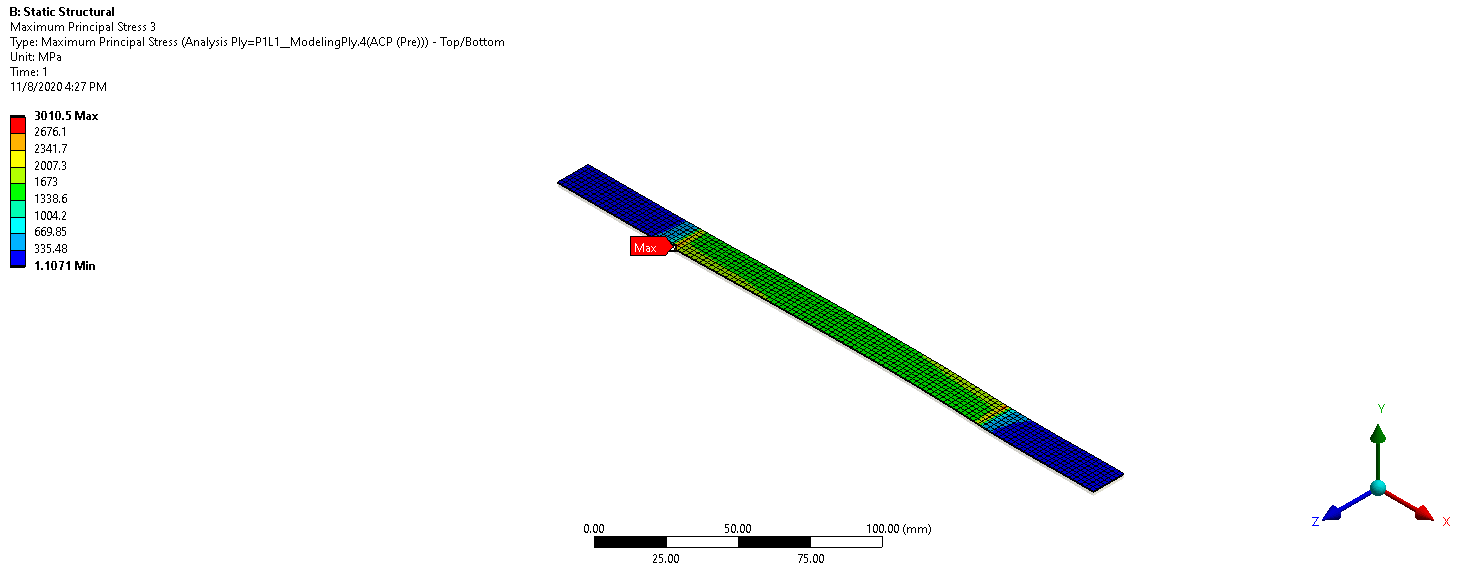

  nI am trying to figure out the tensile strength of the composite panel and how does fiber misalignment influences it. The panel here is 2mm thick consisting of 0/4/4/0 degree plies each of 0.5mm. Using ACP PrePost, I applied multiple failure criterias to observe where exactly the ply fractures. For the standard displacement i.e. 2mm, I am getting the following failure contour for the top ply:nI don't know what does th, e1t and e2t stands for. I think from the legend it is safe to conclude that the entire red region has fractured. To find the localised region of failure, Should I reduce the applied displacement ?nLastly, I wanted inquire about the stresses I am getting. In my opinion, these values are much higher.nWhat do you think about the stress contour? Have I messed up the boundary conditions ? (I applied fixed support on one tab, applied displacement along x on the other, and constrained the panel displacement in z and y directions)nn
