Stress plot on spherical coordinate system in Ansys Workbench

- January 16, 2019 at 9:59 pm

  zhihuizou1988
  Subscriber

  Is it possible for us to define a spherical coordinate system in Ansys Workbench (I am using Version 19.0) like the first figure, and then plot the stress sigma_{thetatheta} as shown in the second figure? And How? Thanks very much.
- January 17, 2019 at 12:53 pm

  Aniket
  Forum Moderator

  Workbench mechanical does not support spherical coordinate systems at the moment.

  you can either :

  use APDL commands (CS command to create the spherical coordinate System, use the RSYS and /SHOW commands to plot the result your want)

  use ACT capabilities to transfer the results from the global coordinate system to the spherical one. However, you will need to create the transformation matrix (there is no function to automatically do it even in ACT)
- January 17, 2019 at 2:52 pm

  zhihuizou1988
  Subscriber

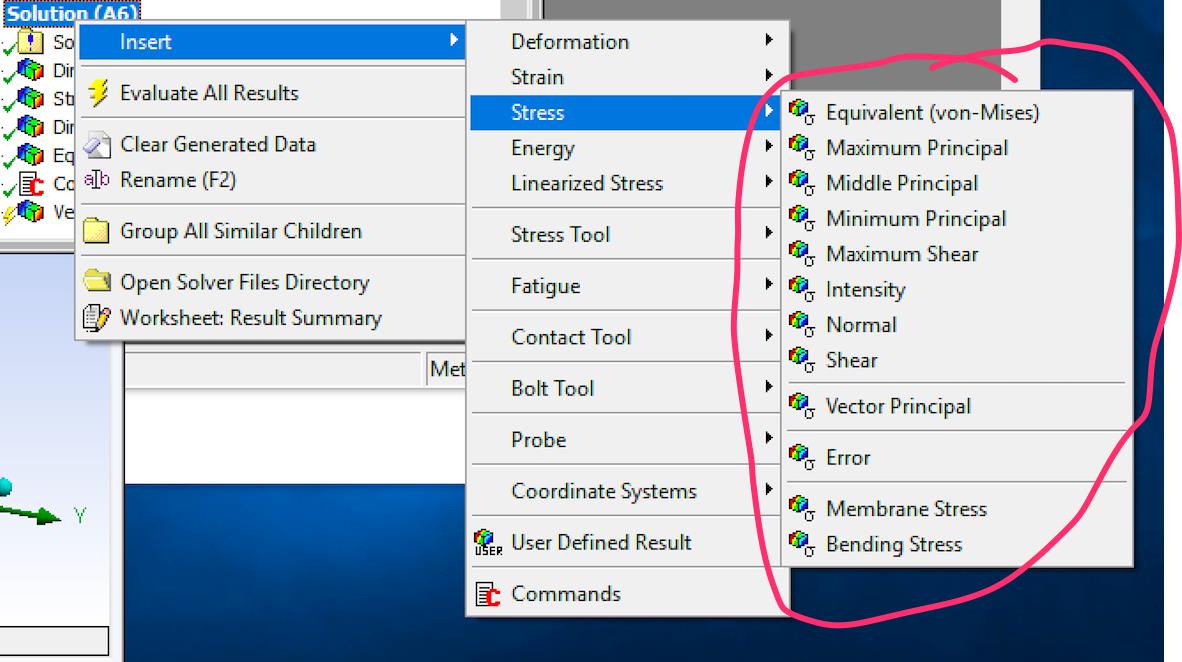

  Thank Aniket very much for your suggestions. One issue is that Ansys WB only offers the following stress plots but not the whole stress tensor with 9 components. Therefore, how can I get the stress sigma_{theta theta} along the polar direction as shown in my last post? In other words, how can I define the proper transformation matrix even with ACT?
- January 18, 2019 at 11:07 am

  Aniket
  Forum Moderator

  For Custom results example you can refer to the following link in the help manual:

  https://ansyshelp.ansys.com/account/secured?returnurl=/Views/Secured/corp/v193/act_cust_mech/Von-MisesStressAsACustomResult-31B65E8B.html

  If you are not able to access the link check following post for how to access the link above:

  /forum/forums/topic/how-to-access-the-ansys-online-help/
