STL file import to Ansys Fluent

- February 14, 2024 at 10:15 pm

  dungnguyenxuan199566
  Subscriber

  Hello everyone,
  Does anyone try to import STL file into Fluent for further analysis? Would you please show me how to do that?

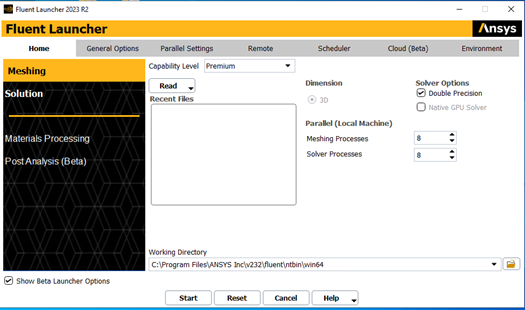

  First I tried to import STL file into Fluent Meshing:
  Then when I tried to switch to solution it showed like this:
  Does anyone know how to import STL file into Fluent for airflow analysis?
- February 15, 2024 at 5:19 am

  Keyur Kanade
  Ansys Employee

  Please import STL in Flunet Meshing. You can use watertight workflow to generate volume mesh and then switch to Fluent solver.
  Please go through help manual for more details
  Please check following videos
  Fluent Meshing Watertight Workflow:
  https://www.youtube.com/watch?v=aBxbYRVoRLo
  Regards,
  Keyur
  How to access Ansys Online Help Document
  Guidelines on the Student Community
  Fluids Engineering Courses | Ansys Innovation Courses
- February 15, 2024 at 3:39 pm

  dungnguyenxuan199566
  Subscriber

  Hi Keyur,

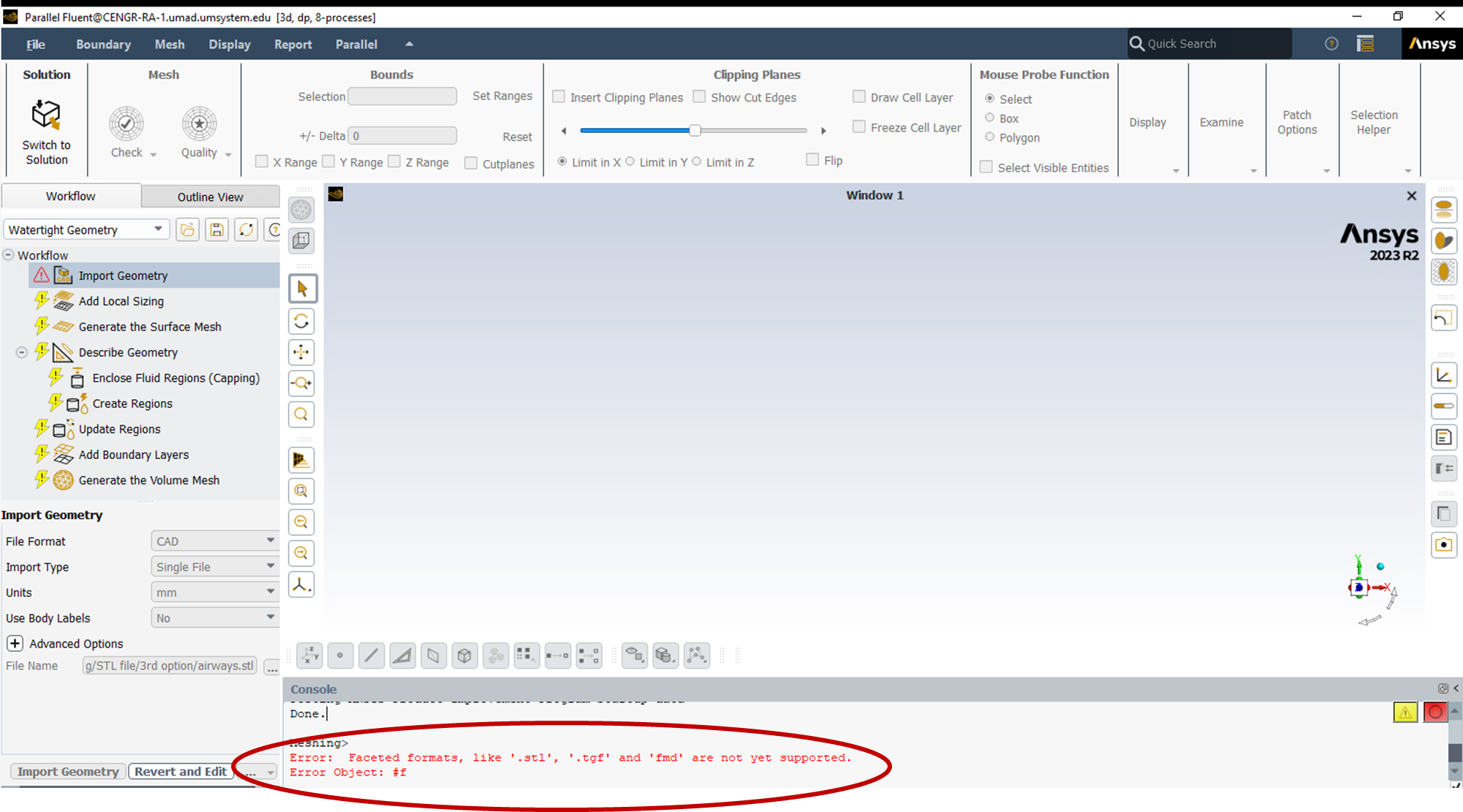

  I tried that but Fluent meshing showed something like this. It does not support STL.
  Do you know anyway to counteract this?
- February 16, 2024 at 5:16 am

  Keyur Kanade
  Ansys Employee

  Quick workaround - open STL in SpaceClaim. Save .scdoc file. Import scdoc file in Fluent Meshing.

Viewing 3 reply threads

The topic ‘STL file import to Ansys Fluent’ is closed to new replies.
