Hi all,

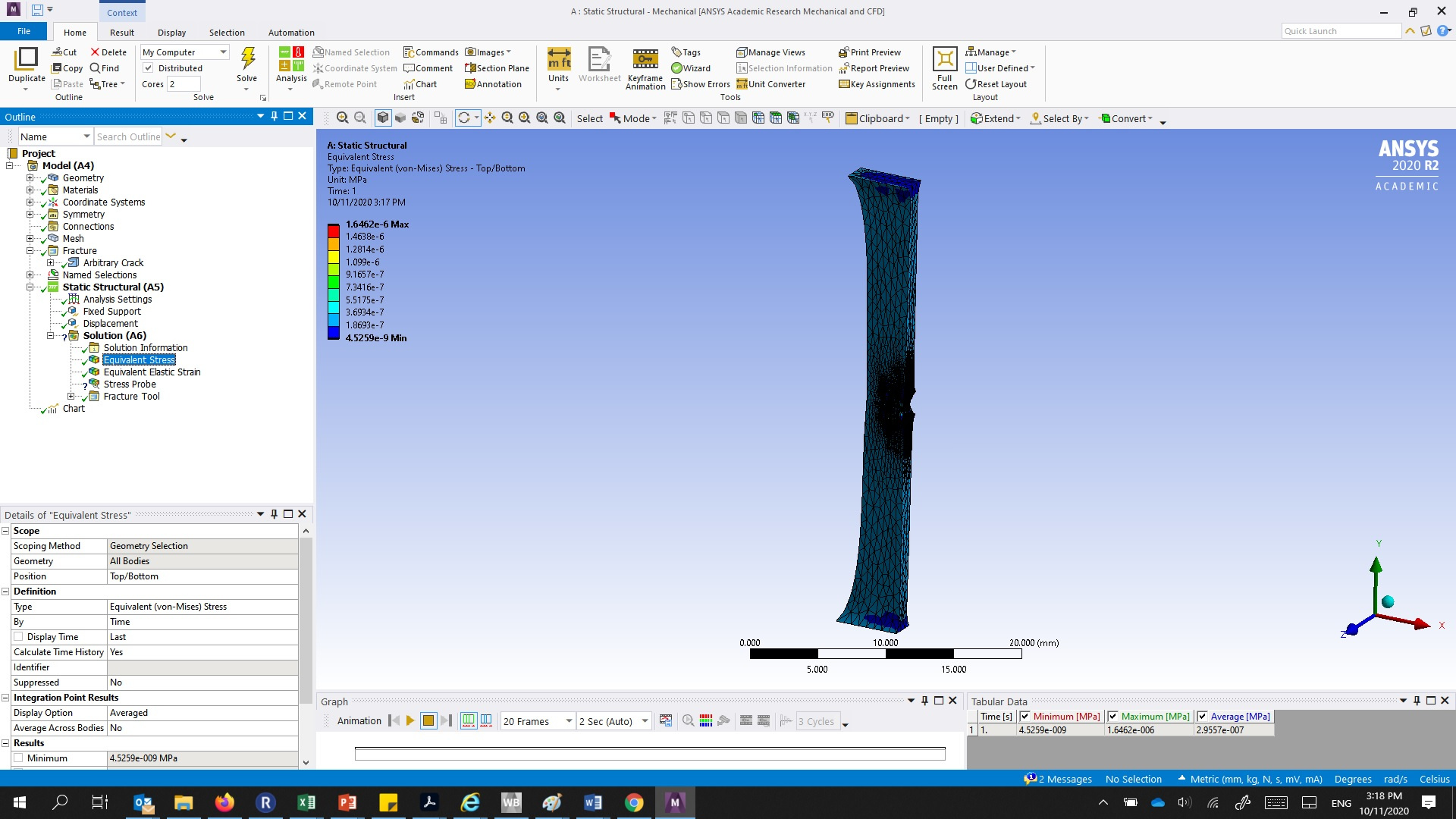

Im trying to create a strain- stress curve from the specimen to simulate the effect of crack in stretchibilty and strength, can someone help me please, Im new to this, I basically fix one side of my structure and pulled the other side vertically for 15 mm using arbitrary crack, can I share my file here?


[David Weed]

Hi,nYou can use a chart object to create a stress-strain curve:nYou would first highlight the stress and strain object then click on Chart:nthen use the following settings:nn
