Is there a way to convert lines connected together to a rounded corner to a single spline?
Thanks,
Francois

[Subashni Ravichandran]

Hello  Francois Fosse

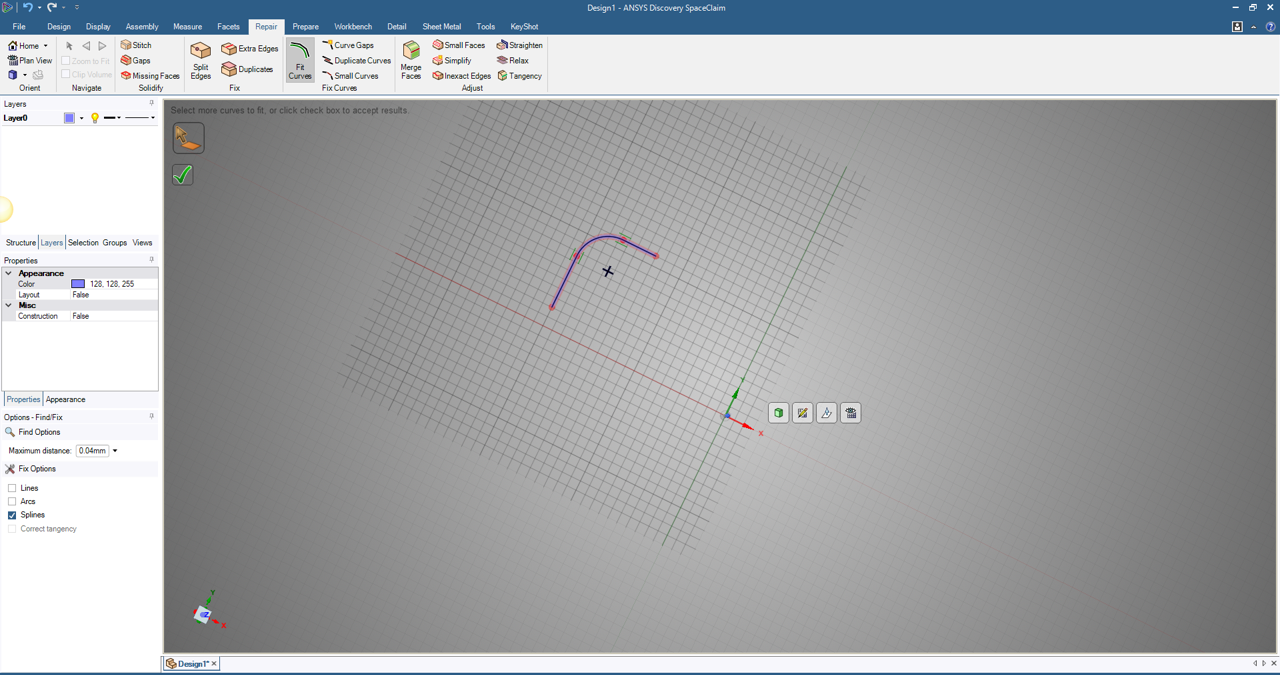

1. Select the curve and the straight lines and click on 'Fit Curve' in 'Repair' tab.

2. In properties uncheck all and keep only 'Spline' checked. Toggle the 'Maximum Distance' to your convenience till you get the required spline.

[Francois Fosse]

Hello Subashni
Thanks for your answer, I give it a try but found only the arc is moved to spline not the entire selection (line+arc+line). Do you get same behavior?

[Subashni Ravichandran]

Francois Fosse

Try increasing the Maximum Distance and make sure you select the lines and the rounded corner

[Francois Fosse]

Yep, it works, need to split lines in small segments for better results also.
Thanks

[Roman8]

Just another note, if you use fill and click the point between the line and arc you will concatenate the curves into a single polyline.
