  3. Spaceclaim / If there are several bodies, the respective material will not be included in the drawing

Spaceclaim / If there are several bodies, the respective material will not be included in the drawing

TAGGED: ,

    • August 9, 2021 at 11:21 am
      guenter.kaprol
      Subscriber

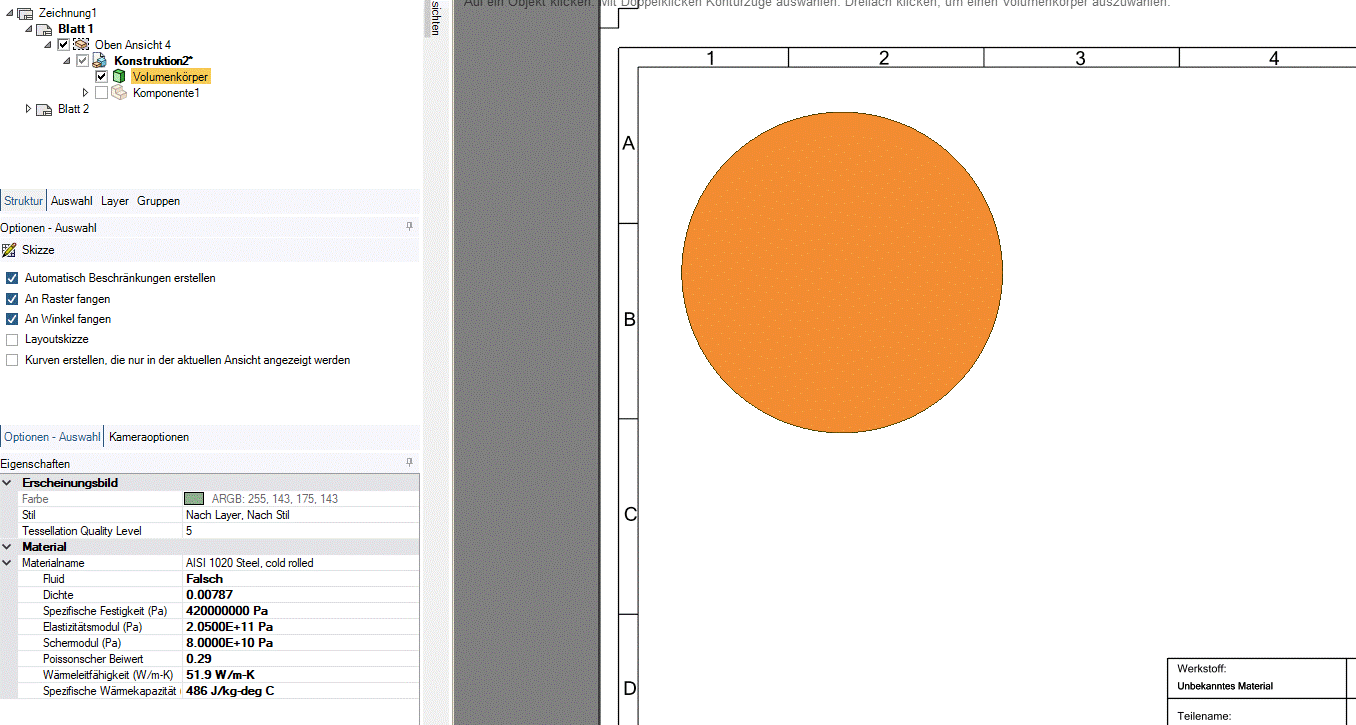

      I n the drawing, the material is not taken over from the body. The material is taken from the component, not the body. If you have several components / bodies in a construction, different materials are not included in the respective drawing. Please excuse my bad English. Thank you / Guenter
    • August 9, 2021 at 12:00 pm
      Subashni Ravichandran
      Forum Moderator

      Hello Günter Kaprol

      Let me look into this and get back to you soon.

    • August 10, 2021 at 9:31 am
      Subashni Ravichandran
      Forum Moderator

      Hello Günter Kaprol

      The material is assigned to the component and not the individual body. This is the intended behaviour in SpaceClaim.
