Script for Generating of evenly spaced dipole in a circle FTDT

- March 30, 2021 at 5:57 am

  MANNAN
  Subscriber

  Dear @gsun and @troberts ,

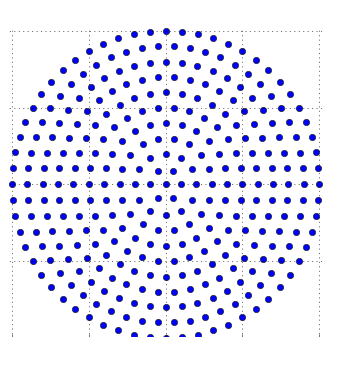

  I would like to know any script that will generate the dipoles in below mention pattern in the FTDT environment. in the XY plan
- April 1, 2021 at 4:15 pm

  Greg Baethge
  Ansys Employee

  Hi Array,nThanks for posting your question. I take the liberty to reply on behalf of my colleagues Array I don't think we really have any script example doing exactly this, but I don't think it is very difficult. The basic idea is to run 2 nested loops, one on the angle (theta) and one of the position of the dipole for a defined theta, and calculate the xy coordinates.nFor example, it could be something like:nntheta = 36; # number of angle pointsnnr = 10; # number of point along each radiusnrmax = 5e-6; # max value of the radiusntheta = linspace(0, 360, ntheta);nr = linspace(0, rmax, nr);nfor(i=1:ntheta) {n for(j=1:nr) {n x = r(j)*cos(theta(i)*pi/180);n y = r(j)*sin(theta(i)*pi/180);nn adddipole;n set(x, x);n set(y, y);n }nnNote this script is probably incomplete: for instance, it will add a dipole at (0,0) for each value of theta while you probably only want 1 and there might be duplicate for theta=0 and theta=360. n
