  3. SCDM中如何调出2D草图的公式编辑？

SCDM中如何调出2D草图的公式编辑？

    • August 25, 2023 at 8:22 am
      Yang Zhao
      Ansys Employee

      需要在Spaceclaim 中关闭草图自动约束。

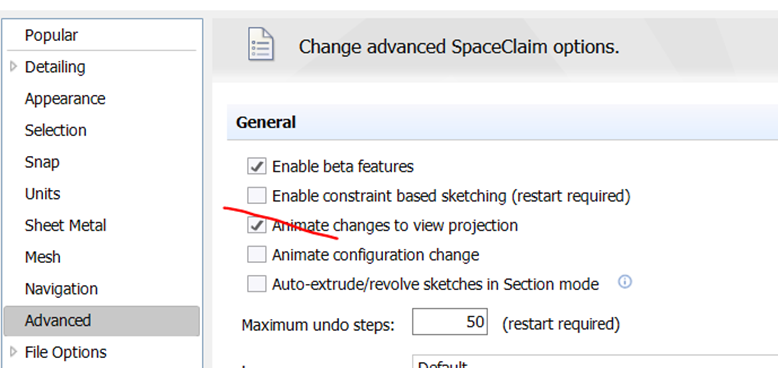

      不勾选：File>>SpaceClaim options>> Advanced>>General>>Enable constraint based sketching(restart required)

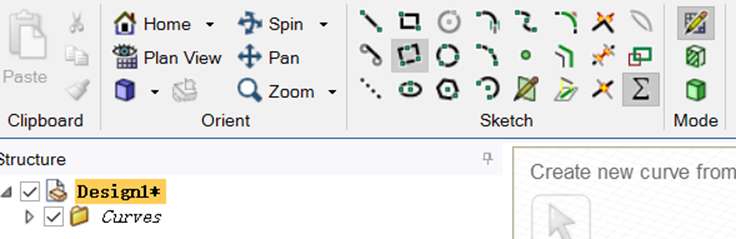

      重启SCDM后即可看到sketching equation.

    • September 7, 2023 at 10:01 am
      Yang Zhao
      Ansys Employee
      如帖子具体内容所示
