I'm doing a modal analysis on a free-free steel plate and want to restrict UX,UZ,ROTX,ROTY and ROTZ on all nodes before running the solution and then extracting the vectors



[Ashish Khemka]

Hi,

Use D command.

Regards,

Ashish Kumar

[Massochy dos santos Ventura]

I used this command and the following information appears but without a solution

D ,All,UX,UZ,ROTX,ROTY,ROTZ,0,

[Massochy dos santos Ventura]

Do you have an example of a D command to restrict degree of freedom on all nodes

[Ashish Khemka]

Hi,

You can refer to the following VM: VM244 Input Listing (ansys.com)

Regards,

Ashish Kumar

How to access the ANSYS Online Help

[Massochy dos santos Ventura]

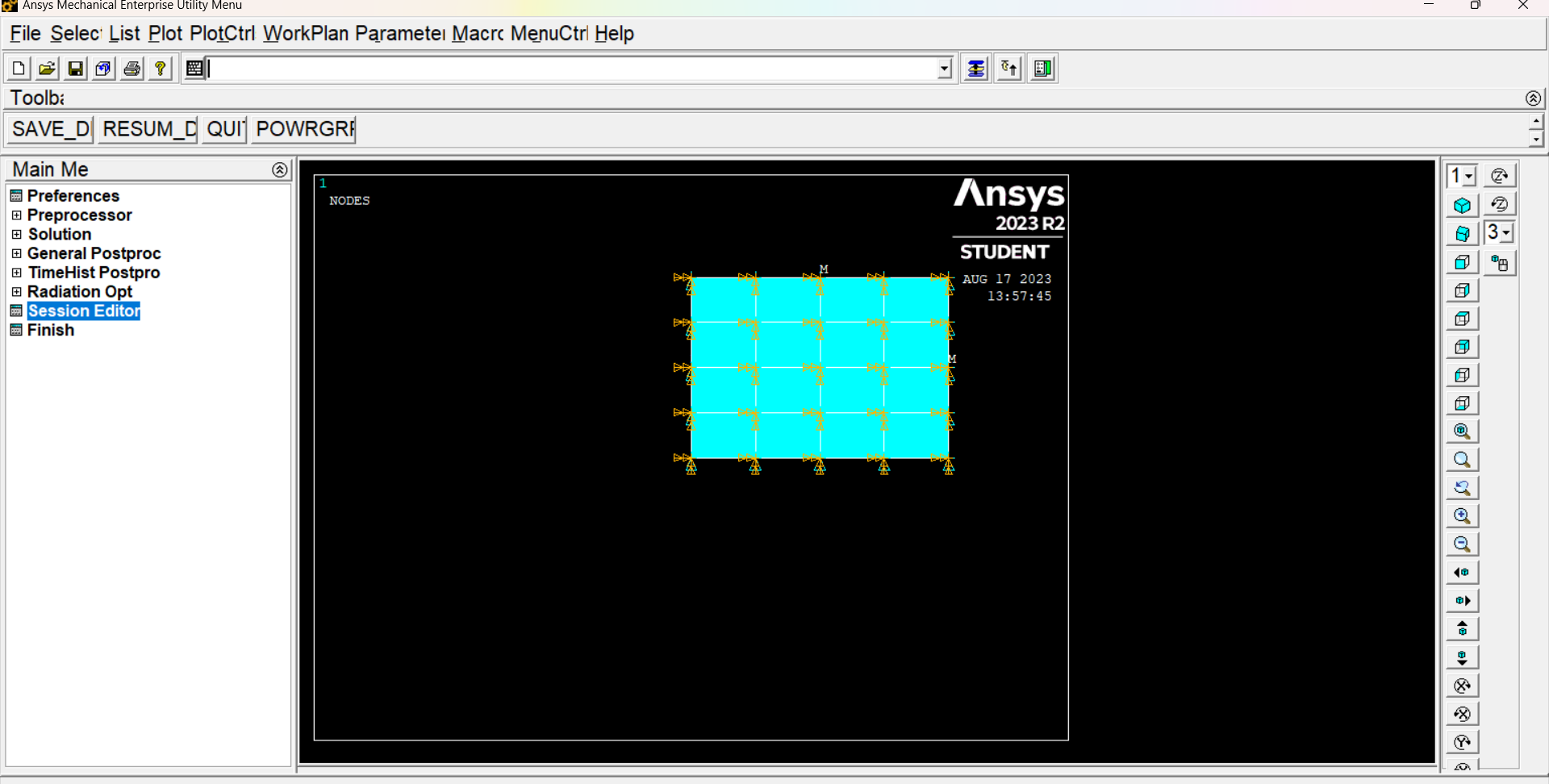

Estou trabalhando com 25 nós e usei este código

CSYS, 1

D, TODOS, UX

D, TODOS, UZ

D, TODOS, ROTX

D, TODOS, ROTY
D, TODOS, ROTZ
NSEL, TODOS
ACABAR

e eu tinha uma matriz 25 * 25 por ser o número de nós vezes o grau de liberdade, mas eu tenho frequências naturais iguais a zero em todos os modos. Eu gostaria de saber se este resultado está correto

[Mike Rife]

Hi Massochy

This command is not quite correct:  D ,All,UX,UZ,ROTX,ROTY,ROTZ,0,

Please see the MAPDL Command Help entry on the D command for the description of the commands fields.  But most likely you wanted:  d,all,ux,0,,,,uz,rotx,roty,rotz

Mike



[Massochy dos santos Ventura]

I wonder if with these commands I can restrict the degrees of freedoms??

[Mike Rife]

What do you mean by restrict?

[Massochy dos santos Ventura]

I'm doing a modal analysis on a free-free steel plate in order to extract stiffness matrix, mass matrix and the vectors corresponding to the vibration modes for each natural frequency. in order to reduce the values ​​of the matrices so I intend to restrict some degrees of freedom all nodes since the matrix is ​​formed by the multiplication between numbers of nodes and the degrees of freedom (in this case they are 6)..
