  3. Problem radially displacing a simple cylinder – DOF constraints

Problem radially displacing a simple cylinder – DOF constraints

    • March 1, 2022 at 2:31 pm
      Ben_Ben
      Subscriber

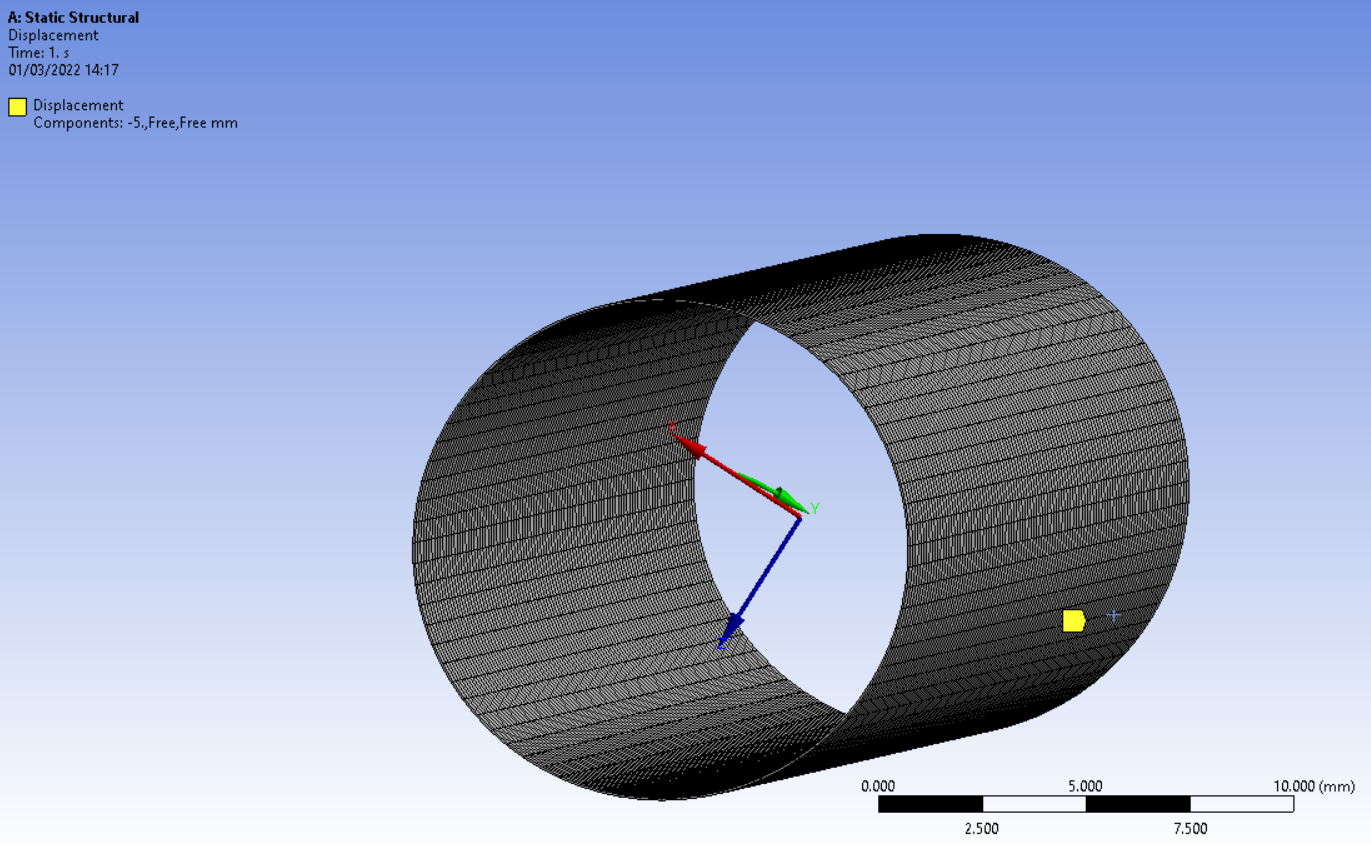

      I am trying to radially displace this cylinder inwards.

    • March 1, 2022 at 3:05 pm
      Erik Kostson
      Ansys Employee
      Hi

      First in the Cyl. Coordinate Sys., rotate it so the Y (theta) direction is tangential to the cylinder and Z is in the axial.
      Then take away the cylindrical support.

      Finally set in the displacement using the cylindrical system: X=-5 mm, and Y =0 (this is in effect tangential) and Z=0 (axial direction).

      That should work fine

      Erik
    • March 1, 2022 at 3:08 pm
      Ben_Ben
      Subscriber
      Thanks Erik
      Will give it a go now.
    • March 1, 2022 at 3:16 pm
      Ben_Ben
      Subscriber
      Thank you Erik. All working!
