Problem at Ansys design modeler ‘trim’

    • November 21, 2018 at 1:57 pm
      Noused
      Subscriber

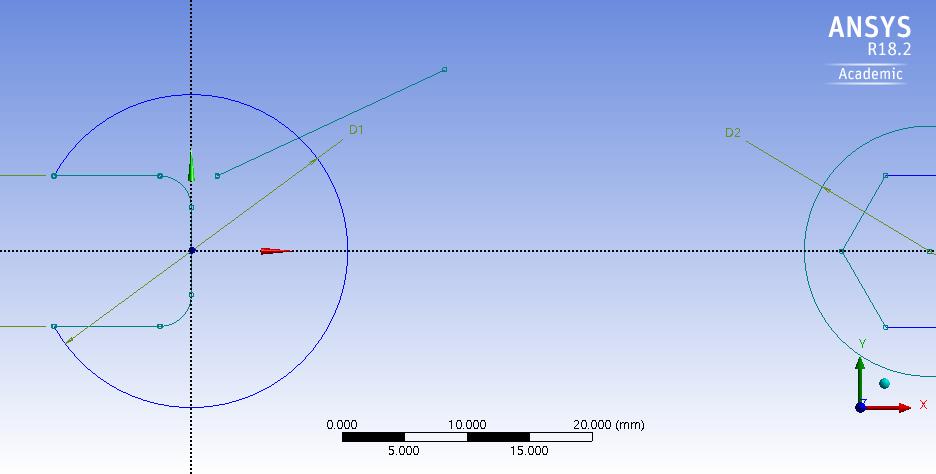

      well... I use modify command 'trim',  and I think , when i use the 'trim', The portion of the edge up to its intersection with other edge, axis line, or point will be removed. but why this situation happened??











      (sry for my poor english writing skills.)

    • November 22, 2018 at 4:06 am
      Keyur Kanade
      Ansys Employee

      It could be only graphical representation.


      Please go ahead and create 3D bodies from this sketch and check if it gives any problem.

    • November 22, 2018 at 4:10 am
      Keyur Kanade
      Ansys Employee

      If you go to Tools - Options - DM - Graphics - Facet Quality and change this to 10, you will see improvement in display.


      So its only display issue. You can go ahead with your model.


      If this answers your question, please mark this as 'Is Solution' to help others on forum.

    • November 22, 2018 at 4:28 am
      Noused
      Subscriber

      Thanks.
