Override Contour Scale

    • Syed Saif Ali
      Subscriber

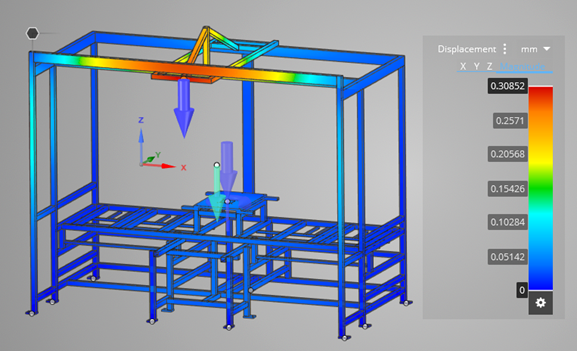

      Hi,   Can you possibly answer this. Did a specific load case sim on the same frame and I would like the scale to higher than what Discovery brings up. This is the results and the scale it shows by default.   I would like to override the scale and have it show 0 to 1.0 rather than 0 to .30852 This way nothing on the image will be red which looks bad even though the number is very small. I would then use the different scale image for a customer report, which again would look better as it would not show red.   I cannot seem to do this ?   Is this possible ?   Thanks, Ali
    • Charudatta Bandgar
      Forum Moderator

      Hello Syed Saif Ali

      You can click on the first value on your contour (0.30852mm in your case) and make it 1 to get the desired contour. Please check and let me know if that is what you were trying to get.

      Regards.

    • Syed Saif Ali
      Subscriber

      Hi Charudatta Bandgar ,



      I tried that way back and it didn't worked.

      • Charudatta Bandgar
        Forum Moderator
        Syed Saif Ali Hello, Apologies for the confusion, the contour can not pick a value greater than the maximum value the way you want. We thank you for sharing your feedback. We will share your idea/input with the product development team. Regards.
    • Syed Saif Ali
      Subscriber

      Hi Charudatta Bandgar ,

      No worries,

      Thanks for the answer.

Viewing 3 reply threads
  • The topic ‘Override Contour Scale’ is closed to new replies.
