Number of cells across the gap

    • December 30, 2019 at 7:47 pm
      Sam Fares
      Subscriber

      Hello,


      When i set the num cells across gap to 10, the cells will be uniform across the thickness, however when i set it to 20, the element thicknesses are not uniform as shown below. Why? is there a way to control the uniformity? Thanks!


    • December 30, 2019 at 10:50 pm
      peteroznewman
      Subscriber

      Try setting Capture Curvature to No.  If that doesn't work, use Edge Sizing with Behavior Hard to force the spacing on the edges.

    • December 30, 2019 at 10:53 pm
      Sam Fares
      Subscriber

      Thank you Peter!!

    • April 19, 2023 at 3:24 pm
      kendrick.vonlignau
      Subscriber

      Hi Peter,

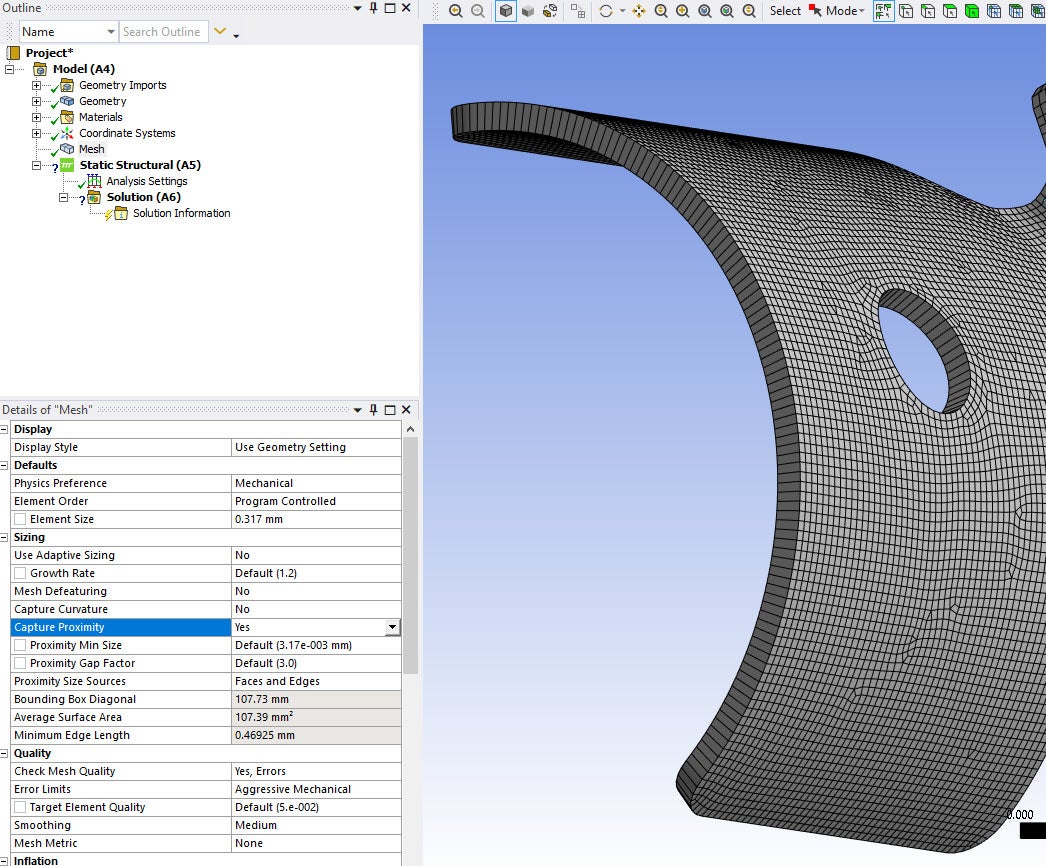

      How can I get a minimum of 3 cells across my mid-surface (~1mm) gap? I've looked at other posts but it seems that it was from an older Ansys version. Thanks

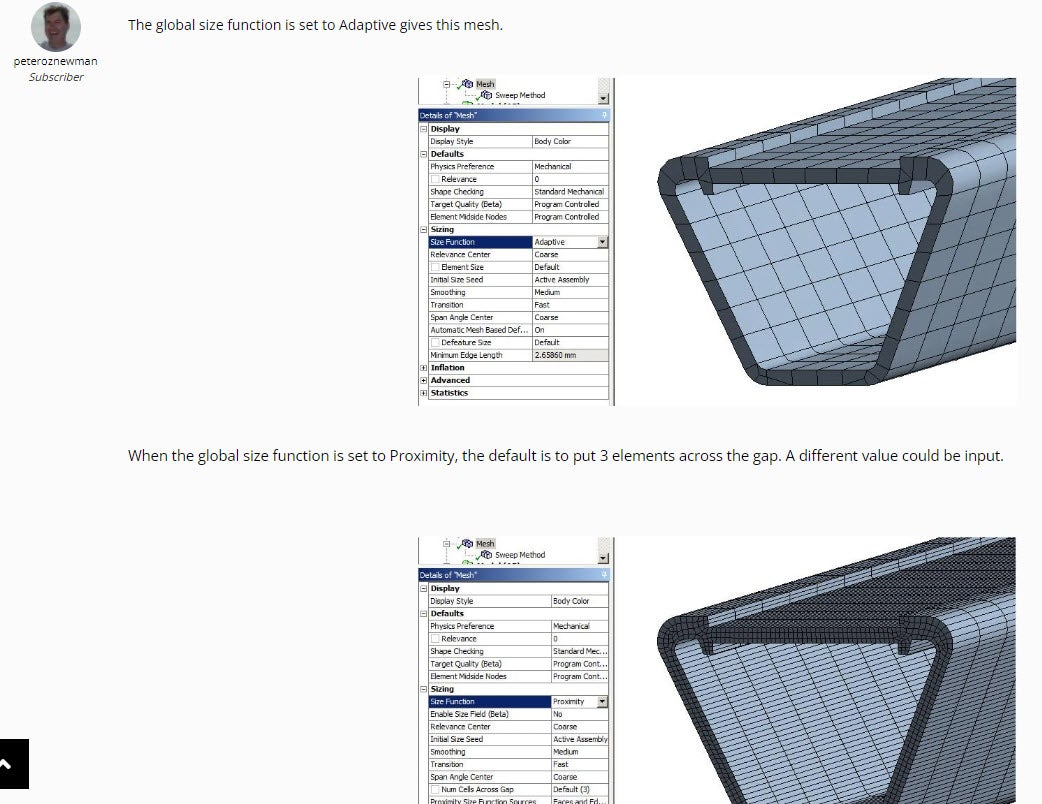

      Post from other threads:

      Previous Post

Viewing 3 reply threads
