My Meshing For Lattice Structure is Stuck

TAGGED: , , ,

    • May 23, 2025 at 12:55 am
      vynnalviolo
      Subscriber

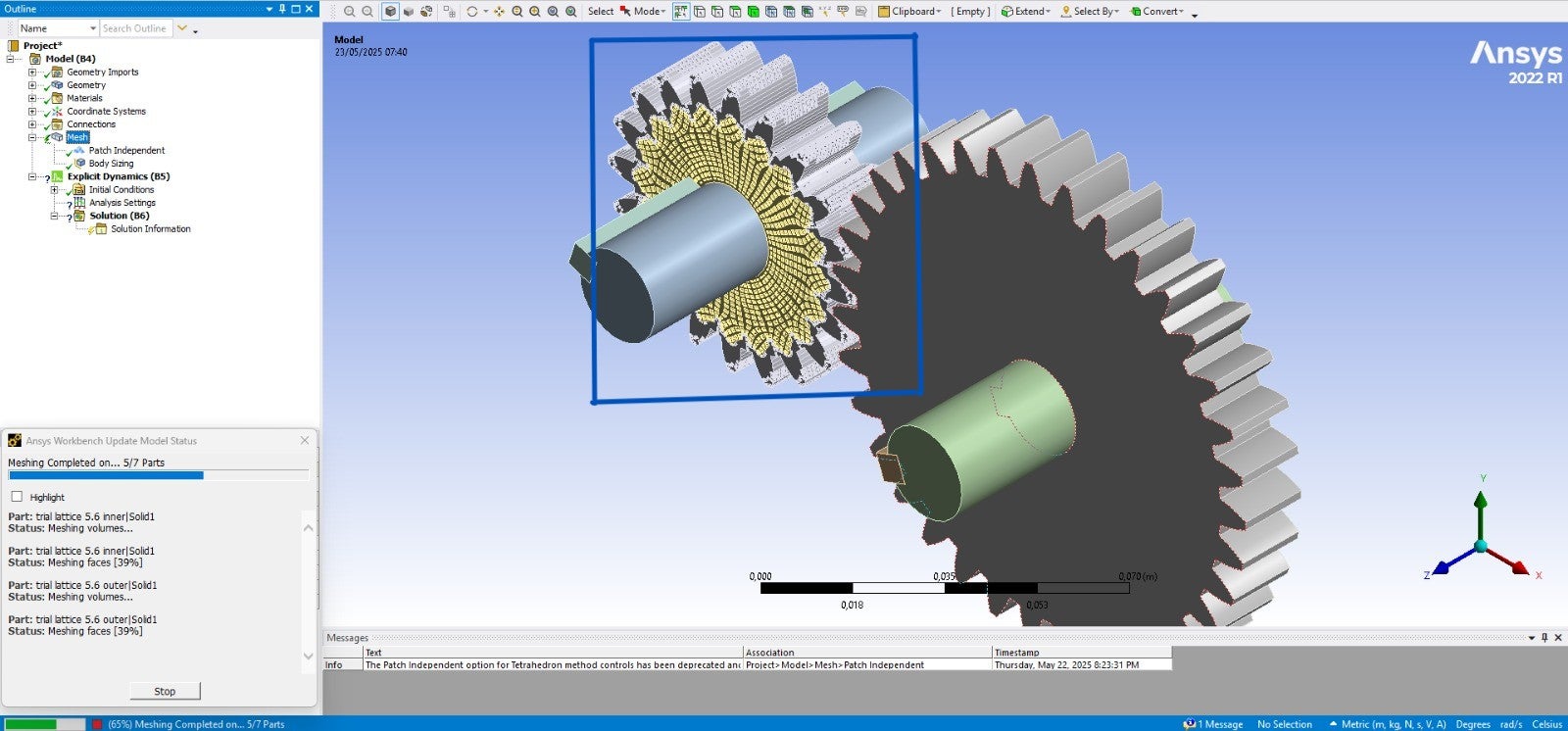

      I have a lattice gear with 2 part inner and outer part. The gear has 15,000 lattice with 2 mm lattice size and the strut thickness is 0.4 mm. I set the element size 0.1 mm and the method Tetrahedrons Patch Independent. It takes 5 hour to reach 39% meshing of the inner part and 39% of the outer part. However it's been stuck like this for 10 hours. Please give me an advice on how to fix this? Please tell me how to properly meshing a body with large amount of small lattices. Thank you.

    • May 23, 2025 at 6:41 am
      Ashish Khemka
      Forum Moderator



      Hello,

      Same query has been created here: My Meshing For Lattice Structure is Stuck

      I will close the current one.



      Regards,

      Ashish Khemka
