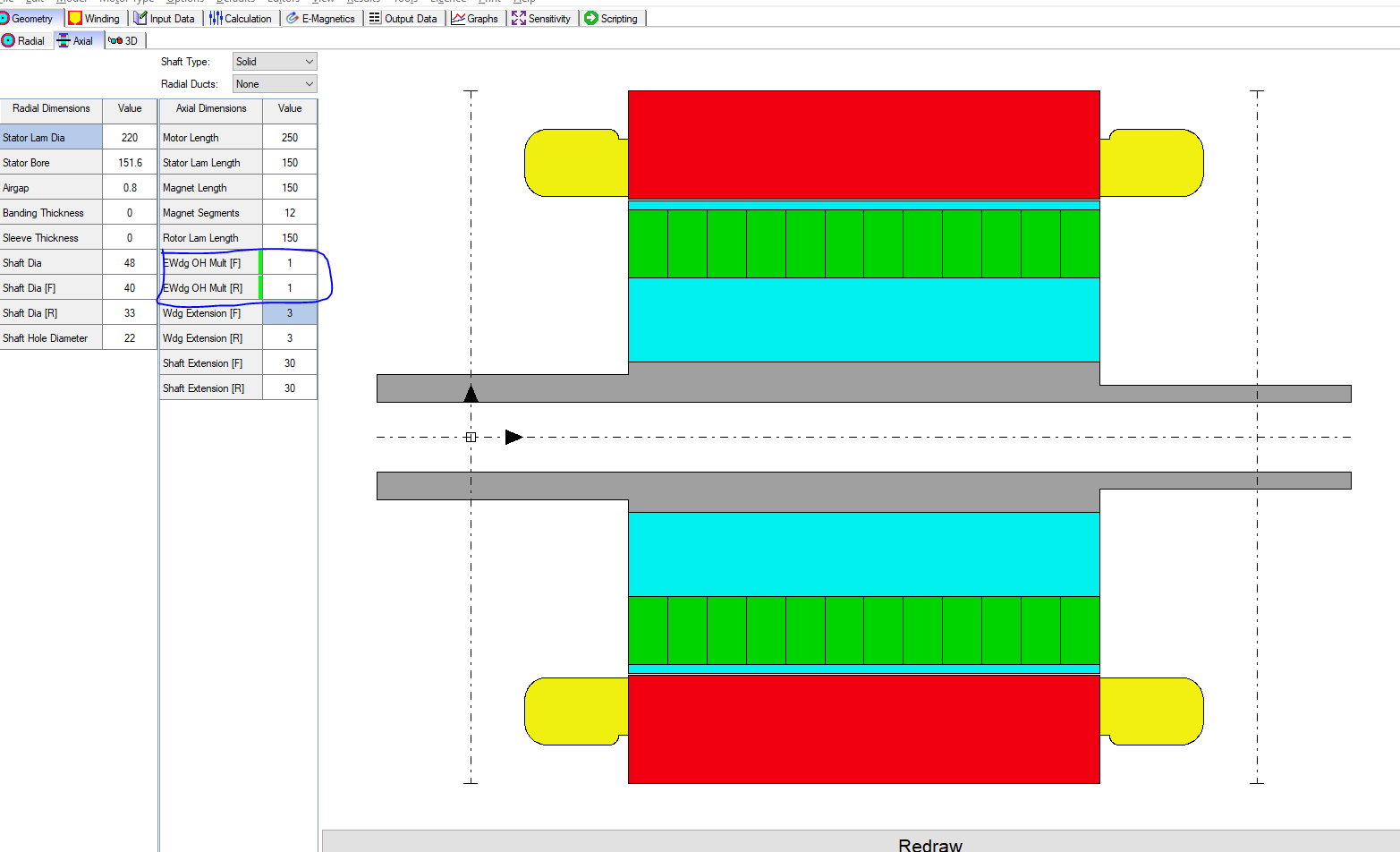

I am carrying out EM simulation in MotorCAD. I have the CAD geometry of my hairpin winding. And I want to match the MotorCAD winding to actual geometry to ensure accurate copper losses. I am trying to change the EWdg OH mult to match the winding length, but any change to this factor does not change the length.

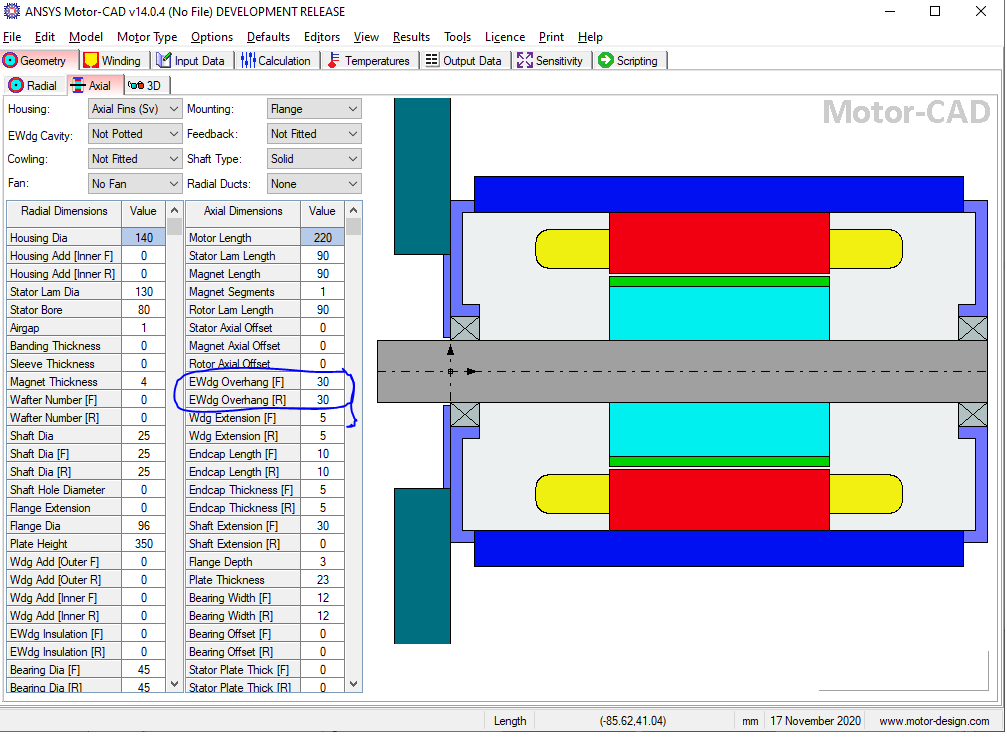

the tutorial shows a different parameter. I guess with the version update its have been modified.
Does anyone have any suggestions for me?
Do I need to make any change in the setting??
Â
Regards,
Ashish Sahu
-
July 28, 2022 at 8:35 am
Navya Chode
Forum ModeratorÂ
Hi Ashish,
I checked it and it's working fine for me.
Which MotorCAD version are you using? I can see that it is a development release in the screenshot. we never released such a version.
It could be because of the version. I suggest you use the genuine, latest version.
Regards,
Navya
Â
-
July 28, 2022 at 5:39 pm
sahua1
SubscriberHi Navya,Â
Thanks for the input. I am using a licensed version provided by our institute. I will check with them if I can get the latest version.
Â
Regards,
Ashish Sahu
-
