Modes not Showing on Modal Analysis

- November 20, 2019 at 11:36 pm

  sgrah123
  Subscriber

  I have two different films I am comparing; they are both of the same dimensions. One has a psuedo-random grating design, and the other is a closed solid.

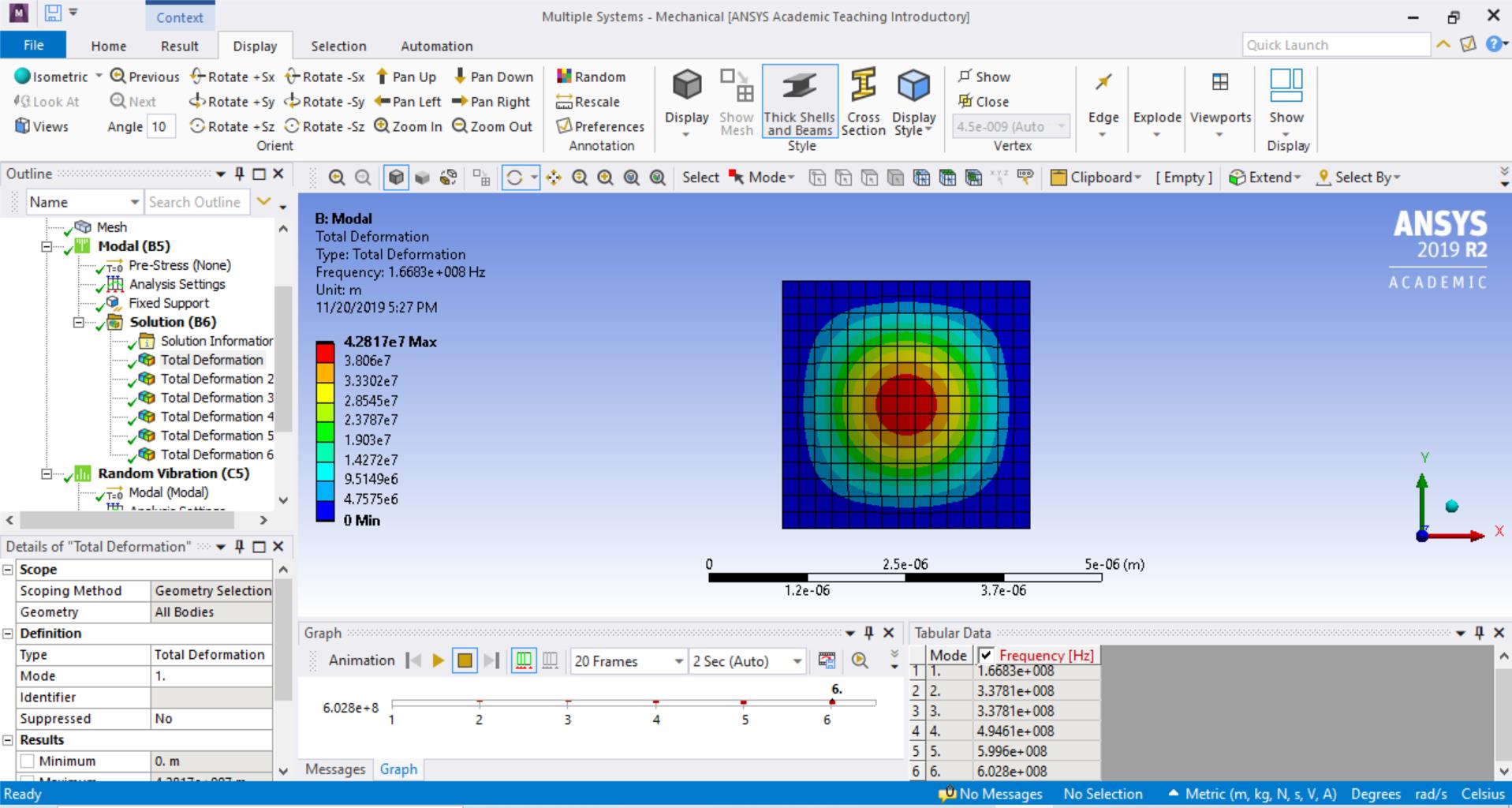

  I have specified ANSYS to show 6 modes upon solving the Modal Analysis. I am not sure why only 2 modes are showing for the film with a grating design, but all 6 are showing for the standard one. The first two modes appear to be the same.
- November 21, 2019 at 3:55 pm

  sathya
  Subscriber

  Hi,

  In the Analysis setting check for number of modes to extract and number of modes to expand.

  Make sure it is 6 for 2nd analysis too.
