Meshing of a wing having very small trailing edge

    • November 21, 2018 at 8:40 am
      pankaj
      Subscriber

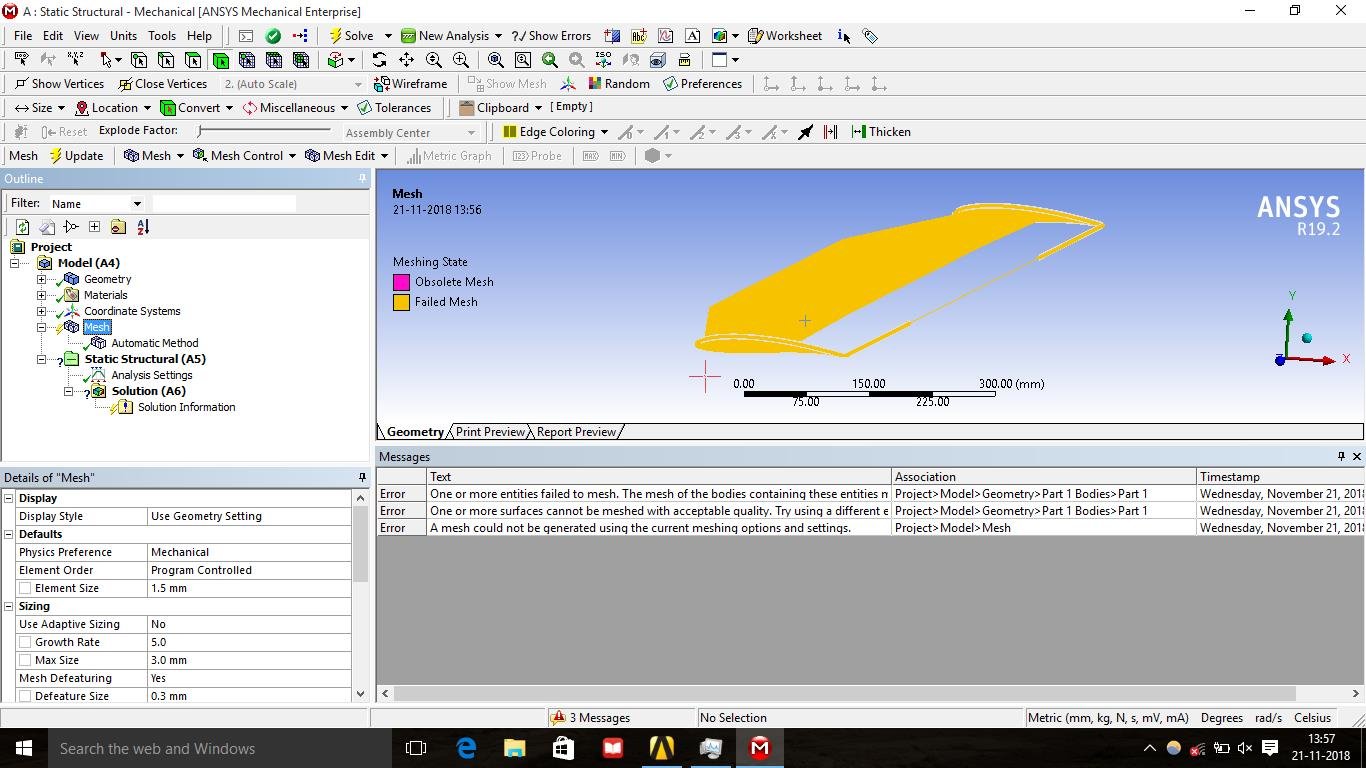

      I tried to mesh this geometry as given in the screenshot but it showed error. I do not know which setting i should used to mesh this geometry


      dimension of trailing edge is 0.03mm




    • November 21, 2018 at 8:46 am
      Aniket
      Forum Moderator
      1. Turn off mesh defeaturing, currently mesher will remove any features below 0.3 mm
      2. Apply edge size on the trailing edge to capture it well.
    • November 22, 2018 at 5:43 am
      pankaj
      Subscriber




      Sorry for late reply


      Thanks Aniket my problem is solved as you have given meshing techniques
