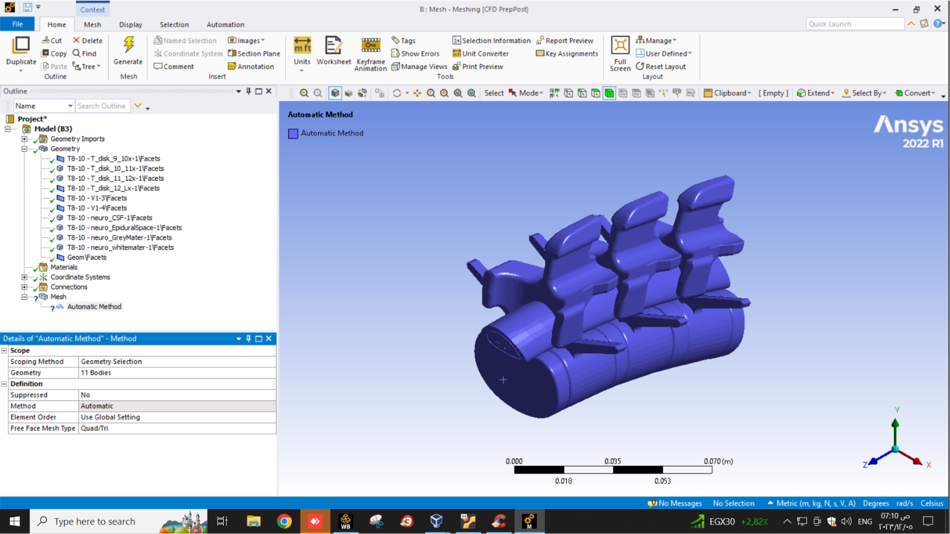

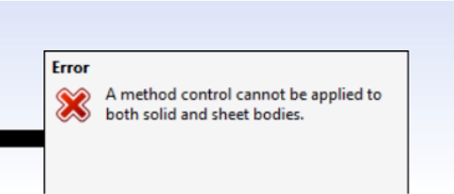

I have STL files of different parts of the spinal cord (white matter, grey matter, vertebral discs...etc.). I loaded all the files in Geometry component (SpaceClaim) to build a model for a part of the spinal cord and it showed no errors and a green check. I then started to do the meshing, but when i chose 'insert a method', the settings chose automatic and did not allow me to change it. When i started the meshing process, it gave me an error: 'A method control cannot be applied to both solid and sheet bodies'.

I tried loading to the geometry component 1 STL file only (1 component of the spinal cord) and it showed no errors and a green check. I then started to do the meshing, and it allowed me to choose whatever element i want. I started meshing and the loading bar for the progress of the meshing process finished. I clicked on Mesh to display it on the object but nothing appeared. The mesh didn't show (may be not created i don't know). How to solve this?

[Keyur Kanade]

For STL file, please create geometry. You can check following video for the same.

Reverse Engineering with ANSYS SpaceClaim - YouTube

Please make sure that you create more number of faces and edges instead of just one face for entire geometry. It will give more refernce while meshing.

Regards,

Keyur

How to access Ansys Online Help Document

Guidelines on the Student Community

Fluids Engineering Courses | Ansys Innovation Courses



[peteroznewman]

I don't know why, but Ansys Meshing software has problems meshing solid bodies and surface bodies in the same component.  To resolve this problem, create a component to hold only solid bodies and another component to hold only surface bodies.  When applying a Mesh Method, limit the scope to only solid bodies.
