Mesh problem

- July 16, 2020 at 3:10 am

  jiaopu
  Subscriber

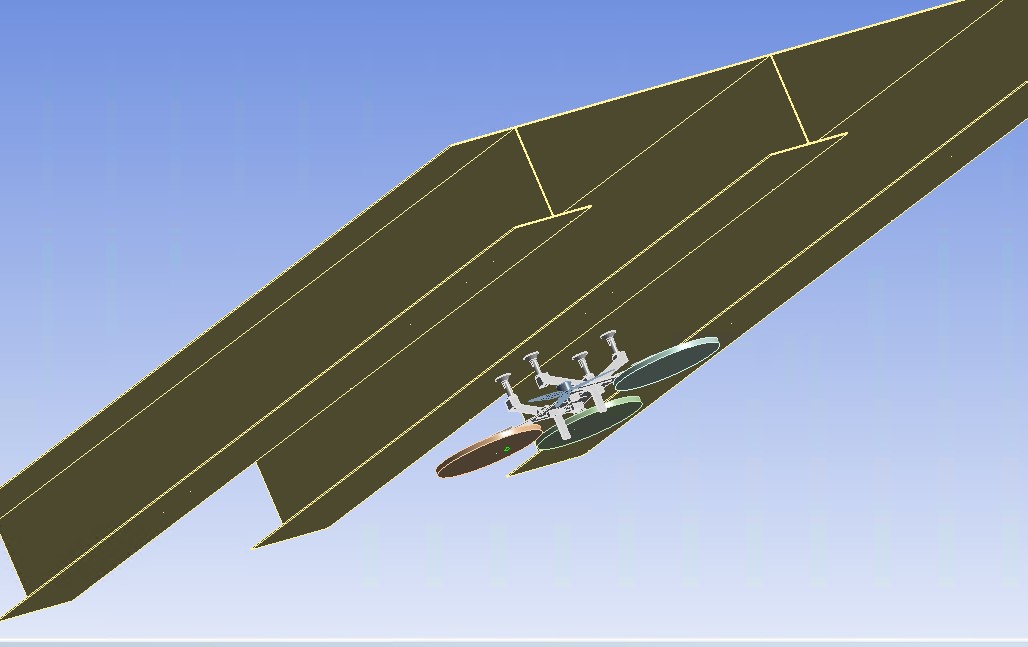

  Hi, I am working on a UAV model. I have encountered mesh errors. Can anyone give me some advice to do the mesh?

  I was following a youtube tutorial for UAV simulation. https://www.youtube.com/watch?v=sHTSyWL_gds
- July 16, 2020 at 2:39 pm

  Rob
  Forum Moderator

  What mesh errors?
- July 16, 2020 at 3:17 pm
  jiaopu
  Subscriber
  Hi. thank you for your reply.

  I used default mesh settings and didn't do any modifications.

  Here is a list of my errors and warnings.
  - One or more surfaces or surface boundaries might not be oriented correctly.Project>Model>Geometry>Final Frame Simplified AS PART>Final Frame Simplified AS PART
  - One or more entities failed to mesh. The mesh of the bodies containing these entities may not be up-to-date. However, meshing might be successful on the other entities.Project>Model>Geometry>Final Frame Simplified AS PART>Final Frame Simplified AS PART
  - One or more surfaces cannot be meshed with acceptable quality. Try using a different element size or virtual topology.Project>Model>Geometry>Final Frame Simplified AS PART>Final Frame Simplified AS PART
  - One or more surfaces or surface boundaries might not be oriented correctly.Project>Model>Geometry>rightCCW>rightCCW
  - One or more surfaces or surface boundaries might not be oriented correctly. Project>Model>Geometry>rightCCW>rightCCW 10:114 AM
  - One or more entities failed to mesh. The mesh of the bodies containing these entities may not be up-to-date. However, meshing might be successful on the other entities.Project>Model>Geometry>leftCW>leftCW
  - One or more surfaces cannot be meshed with acceptable quality. Try using a different element size or virtual topology.Project>Model>Geometry>leftCW>leftCW
  - One or more surfaces or surface boundaries might not be oriented correctly.Project>Model>Geometry>leftCW>leftCW
  - Patch-conforming tetrahedral mesh failed because of duplicated faces in boundary mesh.Project>Model>Geometry>leftCW>leftCW
  - A mesh could not be generated using the current meshing options and settings.Project>Model>Mesh
- July 17, 2020 at 3:29 pm
  jiaopu
  Subscriber
  Hi. thank you for your reply.

  I used default mesh settings and didn't do any modifications.

  Here is a list of my errors and warnings.
  - One or more surfaces or surface boundaries might not be oriented correctly.Project>Model>Geometry>Final Frame Simplified AS PART>Final Frame Simplified AS PART
  - One or more entities failed to mesh. The mesh of the bodies containing these entities may not be up-to-date. However, meshing might be successful on the other entities.Project>Model>Geometry>Final Frame Simplified AS PART>Final Frame Simplified AS PART
  - One or more surfaces cannot be meshed with acceptable quality. Try using a different element size or virtual topology.Project>Model>Geometry>Final Frame Simplified AS PART>Final Frame Simplified AS PART
  - One or more surfaces or surface boundaries might not be oriented correctly.Project>Model>Geometry>rightCCW>rightCCW
  - One or more surfaces or surface boundaries might not be oriented correctly. Project>Model>Geometry>rightCCW>rightCCW
  - One or more entities failed to mesh. The mesh of the bodies containing these entities may not be up-to-date. However, meshing might be successful on the other entities.Project>Model>Geometry>leftCW>leftCW
  - One or more surfaces cannot be meshed with acceptable quality. Try using a different element size or virtual topology.Project>Model>Geometry>leftCW>leftCW
  - One or more surfaces or surface boundaries might not be oriented correctly.Project>Model>Geometry>leftCW>leftCW
  - Patch-conforming tetrahedral mesh failed because of duplicated faces in boundary mesh.Project>Model>Geometry>leftCW>leftCW
  - A mesh could not be generated using the current meshing options and settings.Project>Model>Mesh
- July 20, 2020 at 5:56 am

  Keyur Kanade
  Ansys Employee

  Looks like the geometry in video is different than the geometry you are trying to mesh.

  Suggest you to go through basic tutorials for mesh.

  You need to specify sizing for such geometries. Please do not use default sizing.

  https://www.youtube.com/watch?v=w4q6q8nKF3U

  Please go through help manual for more information.

  Regards,

  Keyur

  If this helps, please mark this post as 'Is Solution' to help others.
