Hello,

I am an MSc Student of Palaeontology and I am experimenting on Structural Analysis and how I can use this kind of analysis in my thesis. I have made a 3D model of a fox skull and i am trying to produce a mesh in Space Claim in order to start up an Static Structural analysis.

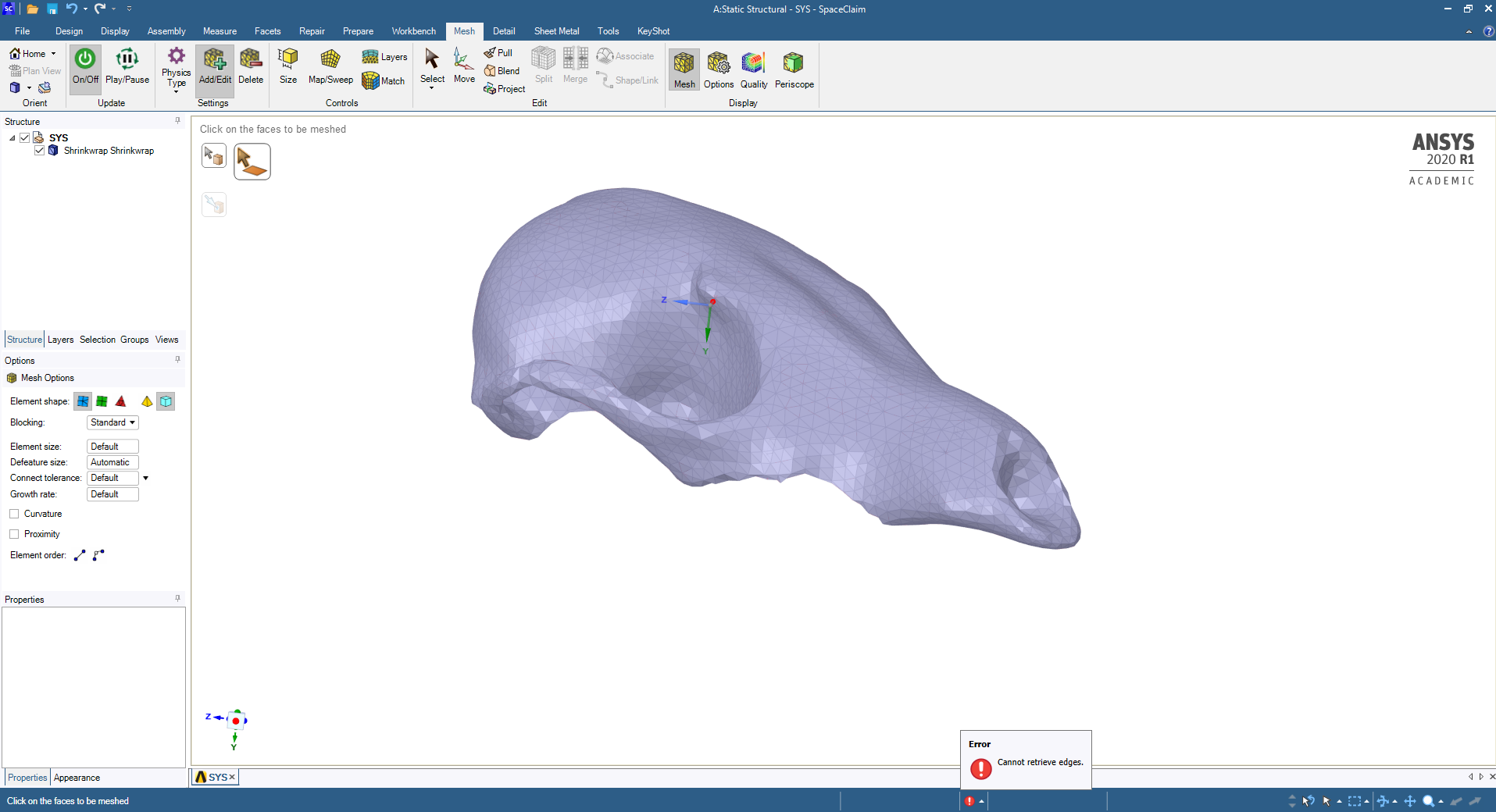

My problem is after I clean up the geometry a bit manually using the facets tools, although I don't get any geometry problems when I try to produce a mesh I get the error message can not retrieve edges. I even tried with a different skull, 3D model, and I get the same error message. I don't know what I am doing wrong.

Does anybody have any ideas?

Thank you in advance,

Angelos Tamvakis

[peteroznewman]
