Measuring force reaction at a certain face

- May 27, 2021 at 1:46 pm

  Zainaba98
  Subscriber

  Hi everyone,

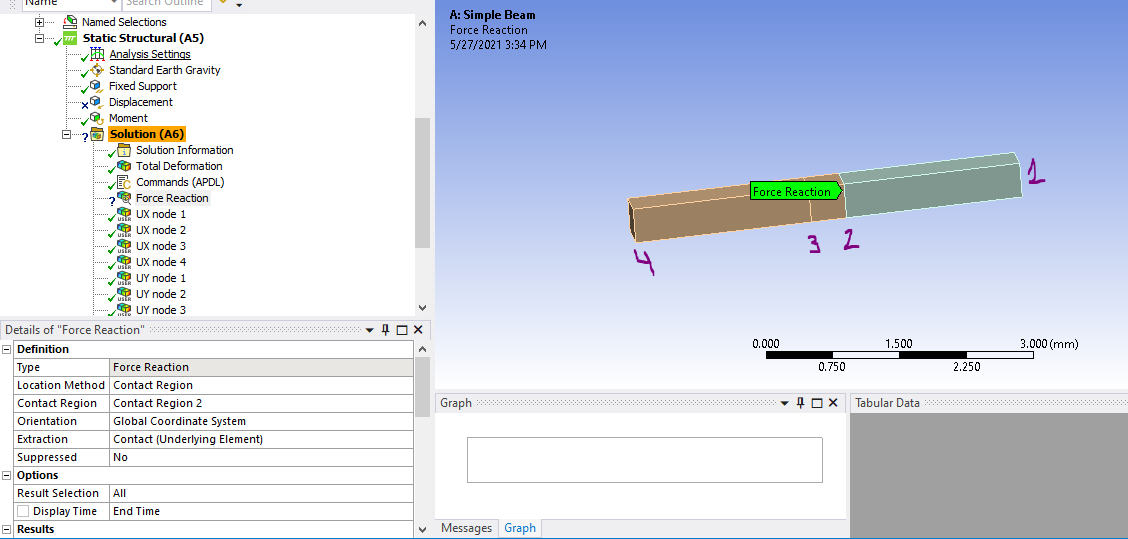

  I am trying to get the force rxn at a certain face (Face 2 in the following picture). I have a simple structure, a cubic PDMS joint (that between points 2 and 3) is placed between two Silicon beams. Whenever I try to choose face 2, it gives an error (a question mark next to 'Force Reaction' [see in picture]).
- May 27, 2021 at 2:21 pm

  Erik Kostson
  Ansys Employee

  Hi

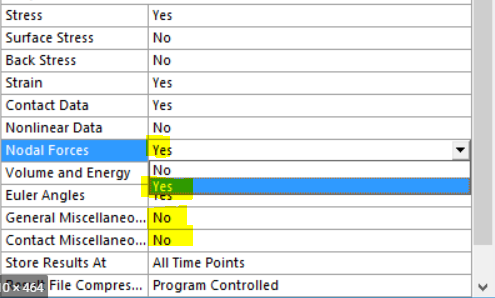

  If it is a contact then you want to go to analysis settings and activate (set to yes) most output quantities (nodal forces, contact and general misc,...).

  Thank you

  Erik
- May 30, 2021 at 8:46 am

  Zainaba98
  Subscriber

  It did work.
  Thank u so much
- May 31, 2021 at 6:44 am

  Erik Kostson
  Ansys Employee

  that is great.

  Erik
