[nick1998]

Hi,

I am trying to create a UDF tool to change the Energy Prandtl number laterally for k-e Realizable turbulence model. The number needs to follow a 2nd order polynomial equation (only between a certain Z coordinate/ constant(d)) which I created:

Pr_t=Energy Prandtl Number

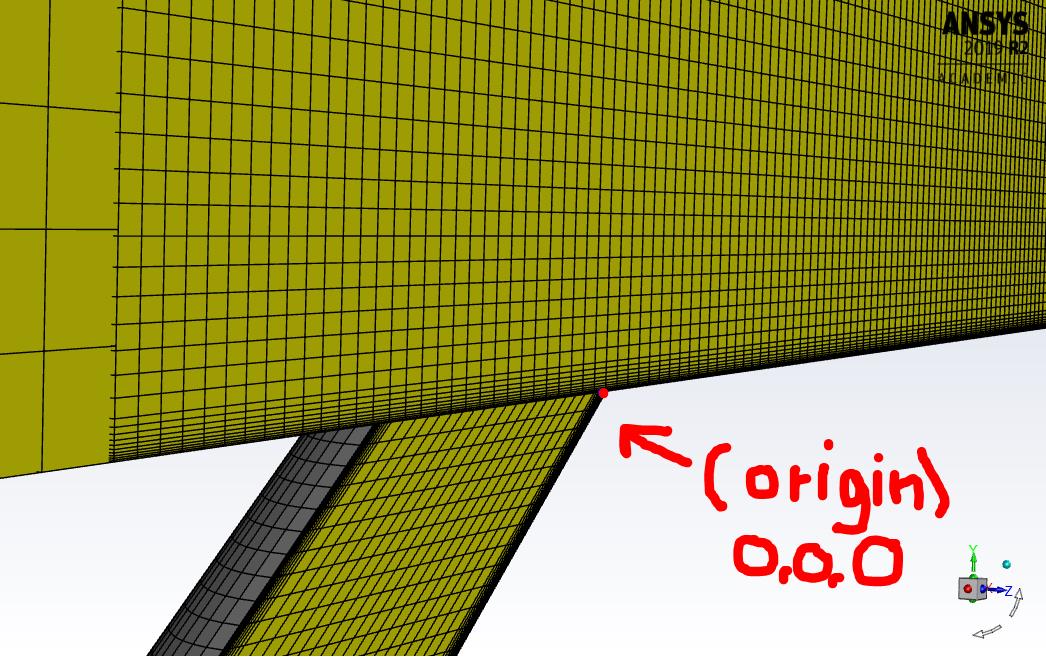

z= z coordinate [0 -102] mm

d=constant (190mm)

Pr_t(Z/d) = -5(z/d)^2-e-10(z/d)+0.85  for Z/d between  -0.3<=(z/d)<=0

I want to create the Pr_t to be valid for  2 statements:

If  -0.3<=(z/d)<=0 then Pr_t(Z/d) = -5(Z/d)^2-e-10(z/d)+0.85;

Else  Pr_t= 0.4

I tried to write a UDF tool for it using notepad++



I get a parse error in line 5 and undeclared variable in line 7.

I just started using UDF and I am not really sure how to write them. I have used the Ansys Fluent manual which gives a few examples and they work fine but I couldn't find anything specific to my problem.

Thank you for your help.

Nick

[DrAmine]

Ha0ve a look into the documentation and online C courses.

We do not debug routines. Your line 7 is bad better to introduce d then build whatever you want with z and. Z to be retrieved from Fluent check define profile as example.
