Issues with connections in Mechanical

    • July 14, 2022 at 1:14 am
      sonne086
      Subscriber

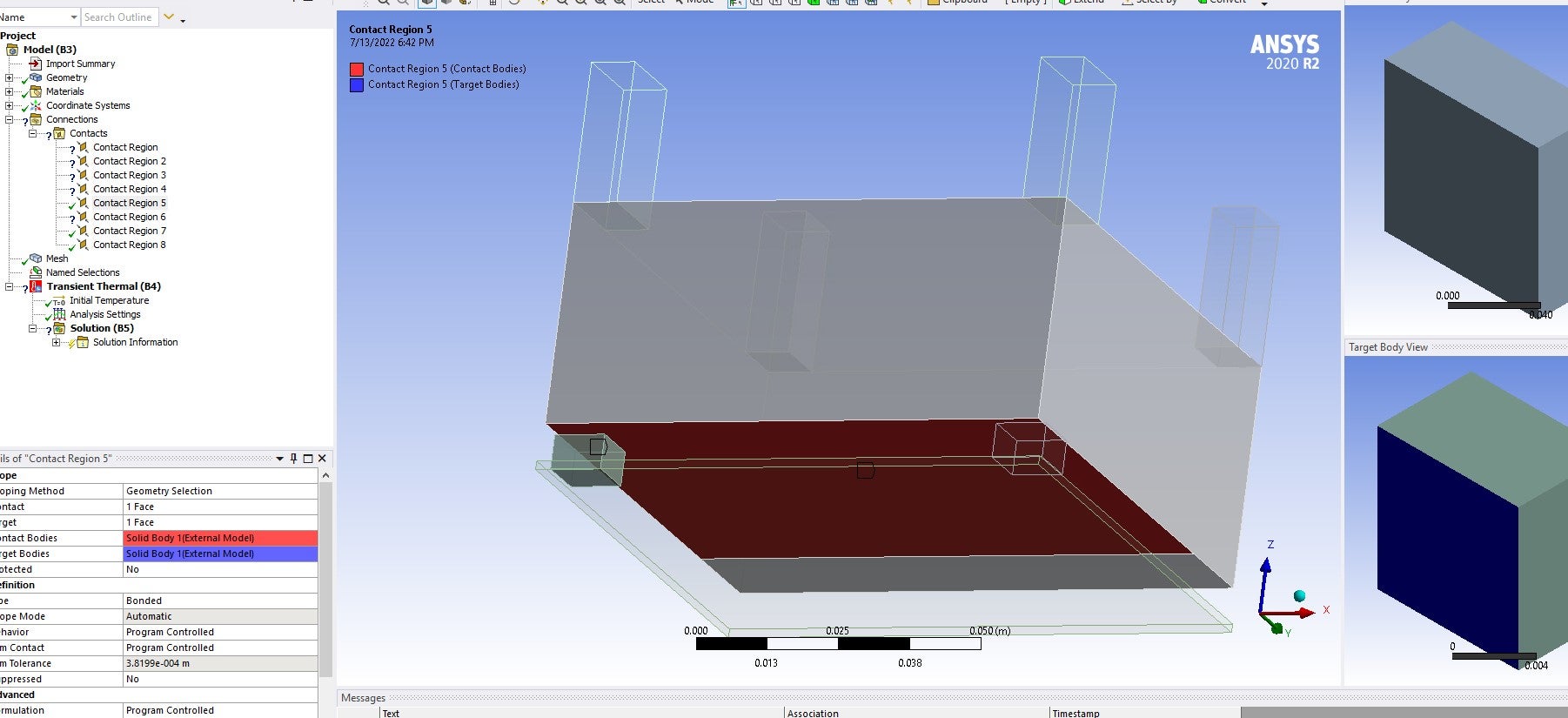

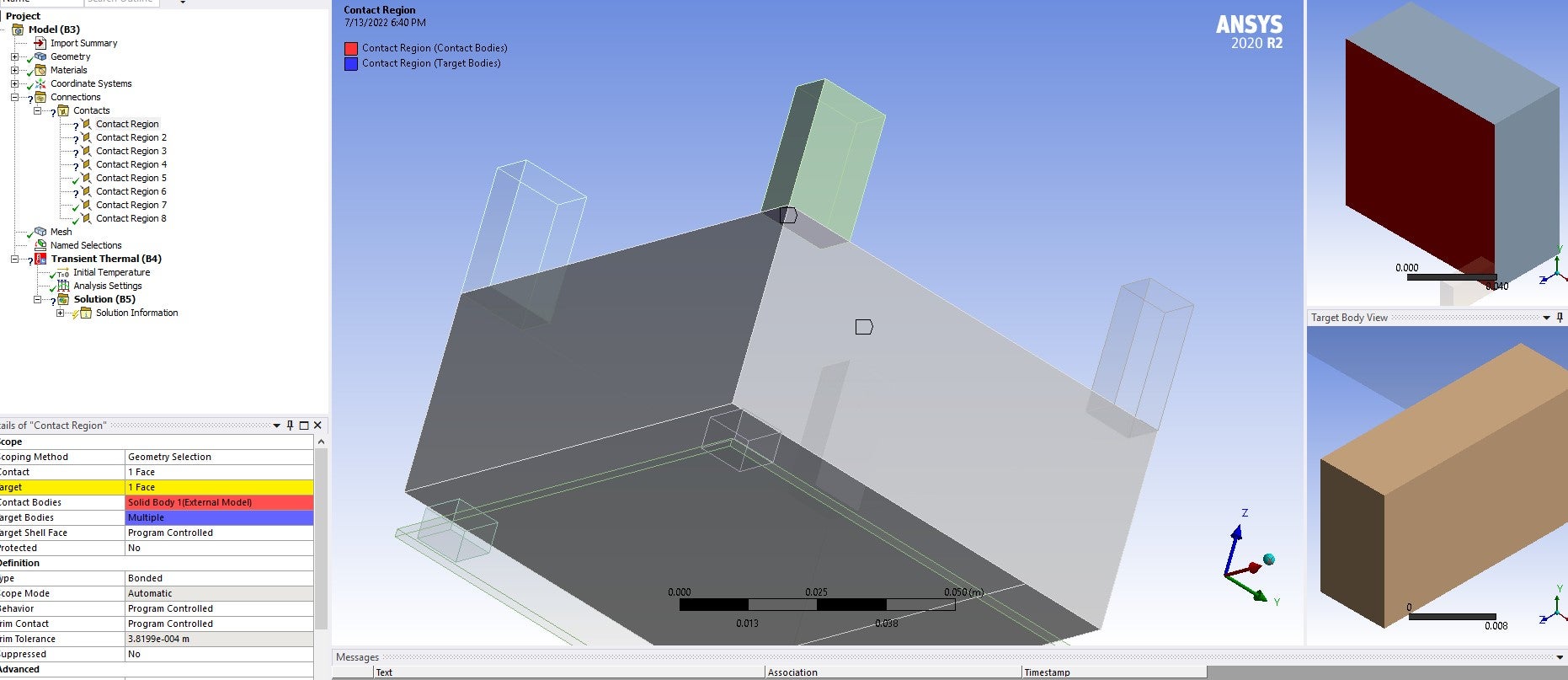

      I am having issues with connections. I get the question mark next to some of my connections from both the auto connector and manually connecting them. There seems to be no particular reason why this is happening. Here are some pictures to show my issue.

    • July 14, 2022 at 4:04 pm
      Gary_S
      Ansys Employee

      Looks like you have a part with multiple bodies (Multi-body part).

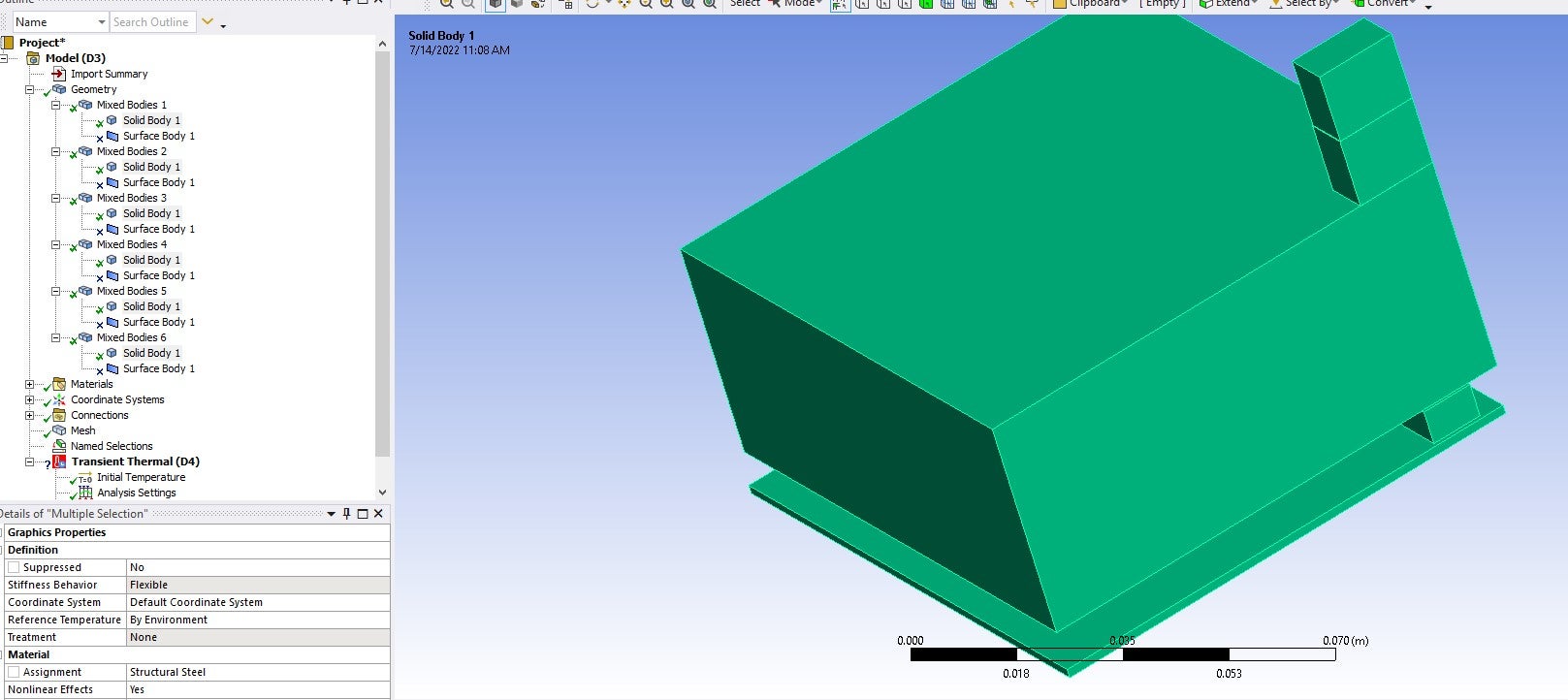

      Expand your Geometry branch and post a screen shot.

      • July 14, 2022 at 4:09 pm
        sonne086
        Subscriber

      • July 14, 2022 at 4:10 pm
        sonne086
        Subscriber

        I suppressed the surface bodies since I only need the solid bodies. Would that be a reason for issues?

        • July 14, 2022 at 4:31 pm
          Gary_S
          Ansys Employee

          Yes the Mixed Bodies will cause issue. If suppressing doesnt work, then you may have to suppress/hide the Surfaces bodies in CAD and not import them.



        • July 14, 2022 at 6:04 pm
          sonne086
          Subscriber

          Okay so theoretically, if there are only 3D solids, there should be no issues?
