Irregular and huge mesh in combination of ACP(Pre) and Mechanical Model

- August 1, 2021 at 9:33 am

  Ina
  Subscriber

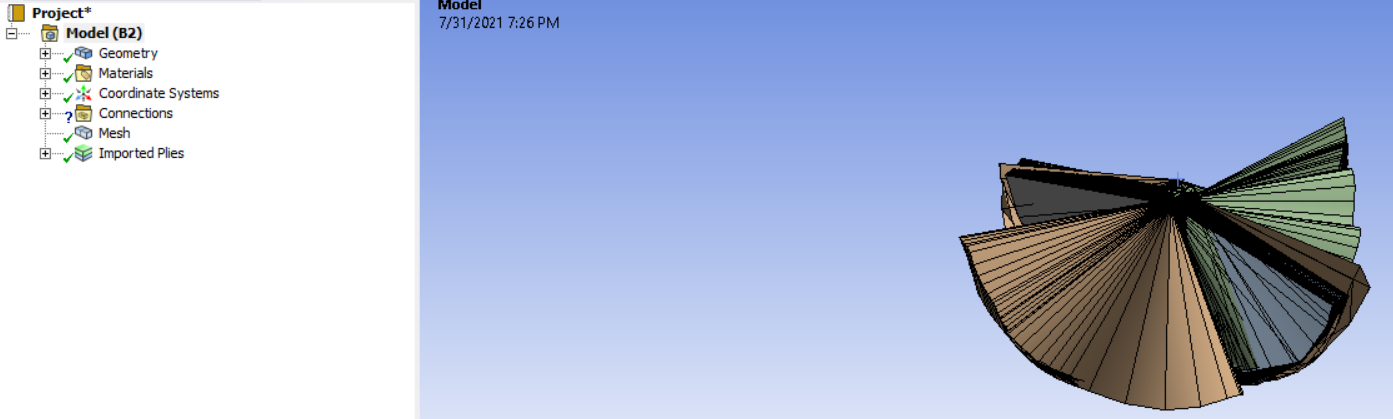

  Hi everyone, I used ACP(pre) and Mechanical Model to design different parts. Then I want to use Static Structural but the mesh will be irregular and huge like the below picture, it is a tail!
- August 3, 2021 at 3:47 pm

  Govindan Nagappan
  Ansys Employee

  From the image you have posted, you do not need system B. You can delete it. Then directly connect the SetUp cell from ACP to Static Structural system Model cell
  Also directly connect the Model cell from Mechanical Model system to Static Structural system Model cell. This should allow you to assemble the two meshes
- August 5, 2021 at 3:28 pm

  Ina
  Subscriber

  Thanks for your reply
  I did it but still, it doesn't change!
  Mesh remain irregular and huge!
- August 5, 2021 at 3:31 pm

  Govindan Nagappan
  Ansys Employee

  The suggestion was to get the correct workflow

  If the mesh is not as expected, check in the application where you created the mesh. If the mesh for the composite is not correct, check in ACP. Check the thickness value used for solid extrusion. Check the units. Do you see the correct mesh in ACP?
  If the mesh for the non-composie parts is not correcrt, check the Mechanical application where the mesh was created.
- January 26, 2022 at 9:52 am

  srutheesh
  Subscriber

  The reason for this irregular and huge mesh would be the difference in units between the static structural module and ACP module. Please change the units in the ACP to mm and update the ACP. Also, don't forget to update your ply thicknesses ( or stack or fabric thicknesses) after changing the units in ACP. Hope it may work.
