Improving quality of tetrahedral mesh

    • April 5, 2019 at 3:45 pm
      vriabov
      Subscriber

      Dear all,


      I am trying to mesh a rather complicated multi-body geometry. I was advised to mesh it with all tetrahedral mesh, which works ok for the most part.

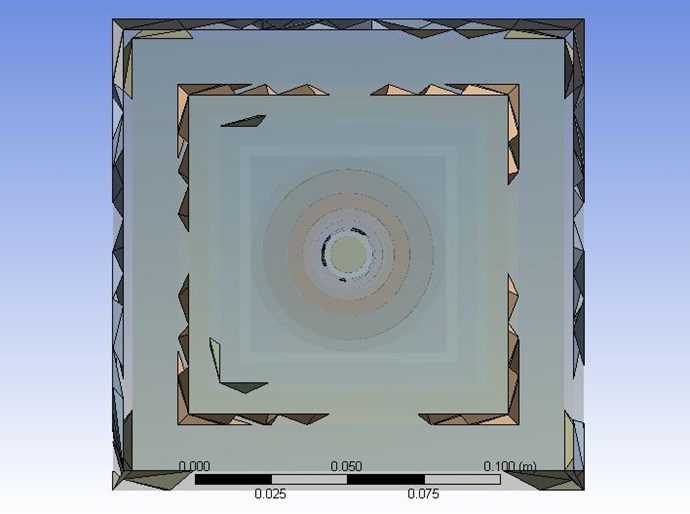

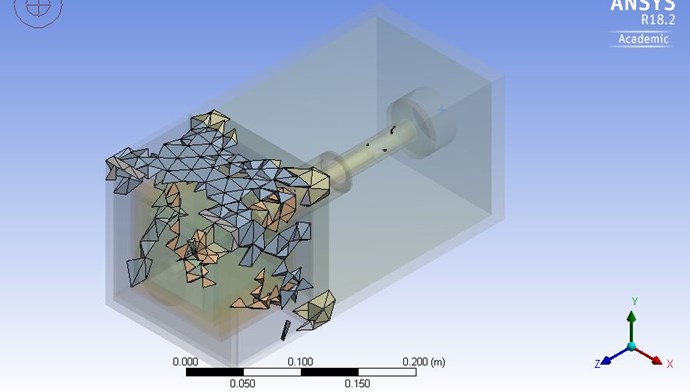

      However in certain (thin-walled) bodies  some highly-skewed elements are produced, the pictures follow:








      How can I locally improve the mesh in the problematic bodies?





      Thank you

    • April 7, 2019 at 10:48 am
      peteroznewman
      Subscriber

      Use smaller elements by applying a Sizing mesh control to those bodies or faces.

    • April 8, 2019 at 6:16 am
      Keyur Kanade
      Ansys Employee

      https://www.youtube.com/watch?v=lMtHHVFmhj4

Viewing 2 reply threads
  • The topic ‘Improving quality of tetrahedral mesh’ is closed to new replies.
