Importing SpaceClaim geometry into Mech

    • April 10, 2019 at 2:46 pm
      Sam Fares
      Subscriber

      Hello,

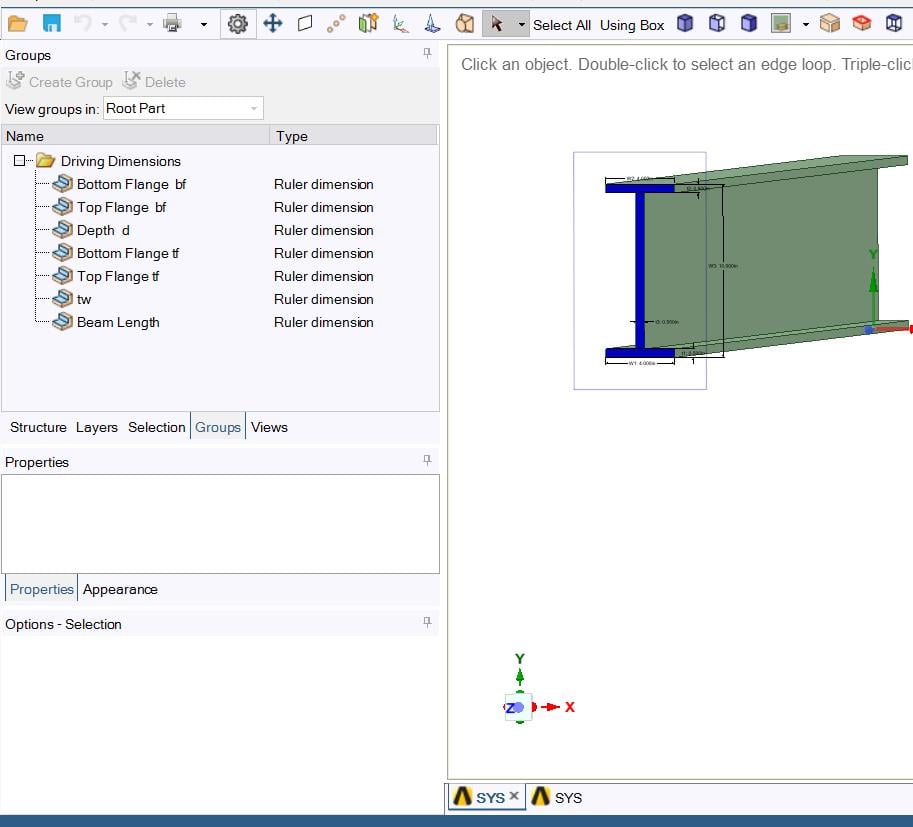

      I created a beam profile in spaceclaim(first image) but for some reason it doesn't import to Mechanical as shown in second picture.


      What am i doing wrong?





      Thanks,


      Sam






    • April 11, 2019 at 7:32 pm
      Fernando Torres
      Subscriber

      Hi , kindly checkout analysis type (2d or 3d) , and select analysis type according to geometry formed. (Hoping that your geometry don't have 'glitches') Thanks
