import file autocad 3d

    • September 7, 2025 at 2:18 pm
      semeniuc_alexandru
      Subscriber

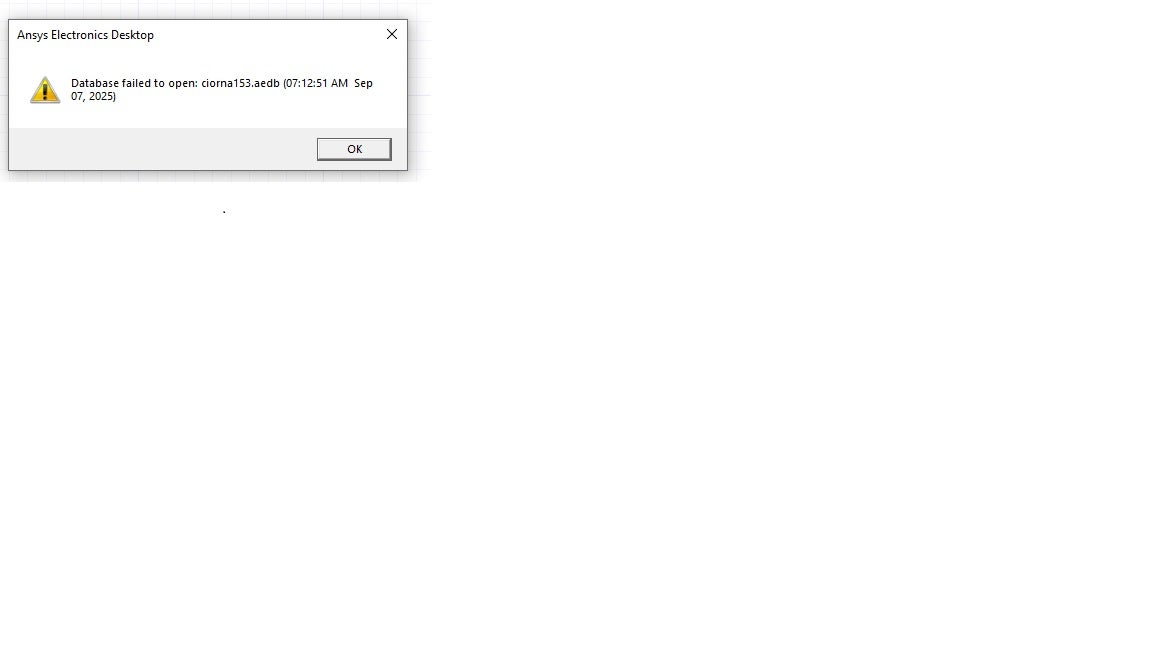

      Hello. I have a question. How do I import a 3D AutoCAD DXF file into Ansys Electronics, considering that the Ansys version is Student R2 2025? Every time I try, I get "database failed". What other steps need to be done besides saving the file in DXF format and then importing? Thank you!"

    • September 7, 2025 at 11:29 pm
      Takeshi Itadani
      Ansys Employee

      AEDT does not support importing 3D DXF files. The recommended format for importing 3D CAD data is STP (*.step, *.stp).
