I cannot resolve stairstep inflation in my mesh

- January 7, 2022 at 10:23 pm

  maxning
  Subscriber

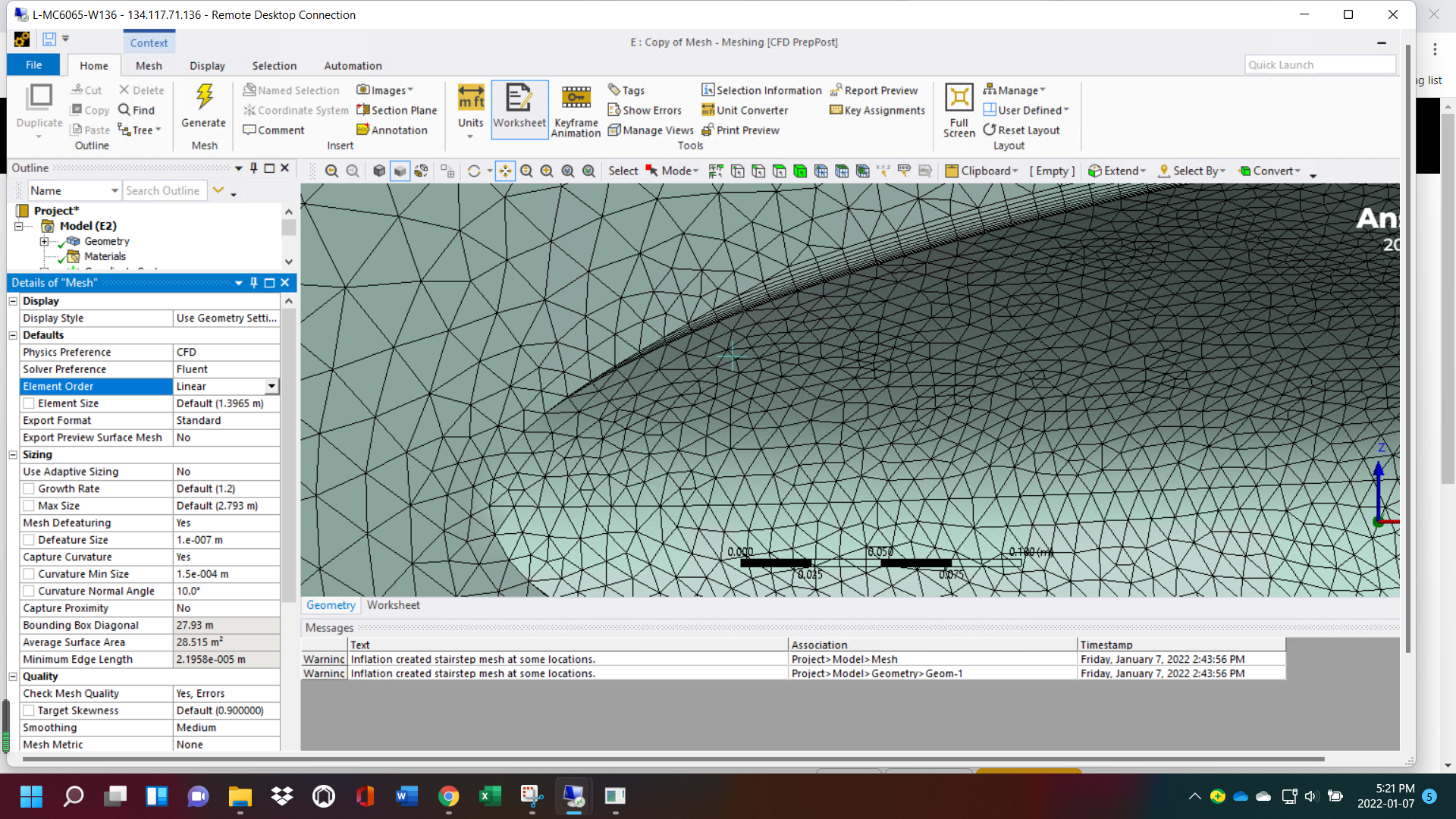

  I am using the the 2021 version of ANSYS workbench and here is my mesh data:
- January 8, 2022 at 8:34 am

  Akshay Maniyar
  Ansys Employee

  Can you check this post.
  Thanks Amaniyar
- January 8, 2022 at 4:05 pm

  maxning
  Subscriber

  I tried the method proposed in that question. It didn't work.
- January 12, 2022 at 3:38 pm

  maxning
  Subscriber

  I have used the method proposed in that question, it didn't work
- January 12, 2022 at 3:38 pm

  maxning
  Subscriber

  I tried reducing the number of layer, increasing the mesh growth ratio, and CFD mesh doesn't have the orthogonal value.
- January 14, 2022 at 10:03 am

  Keyur Kanade
  Ansys Employee

  Please check geometry in SpaceClaim.
  Select geometry in structure tree --> Use right click --> Select Check Geometry. (Or Tools - Fault Detection in DM)
  The geometry should be error free to proceed.
  If geometry has any errors, please modify/recreate geometry at those places.
  Make sure that you have selected all the faces required for inflation.
  Make sure that there are no sliver faces.
  Please go through help manual for more details
  Regards Keyur
  How to access Ansys Online Help Document
  Guidelines on the Student Community
- January 14, 2022 at 9:19 pm

  maxning
  Subscriber

  I tried, but stairstepping is still here
- January 17, 2022 at 5:04 am

  Keyur Kanade
  Ansys Employee

  Post zoomed in images of the geometry at that location.
  Regards Keyur
  How to access Ansys Online Help Document
  Guidelines on the Student Community

Viewing 7 reply threads

The topic ‘I cannot resolve stairstep inflation in my mesh’ is closed to new replies.
