  3. How to remove blank graph figure in report generated by ANSYS?

How to remove blank graph figure in report generated by ANSYS?

TAGGED: ,

    • January 19, 2022 at 3:15 pm
      tyyang
      Subscriber

      Hi there,

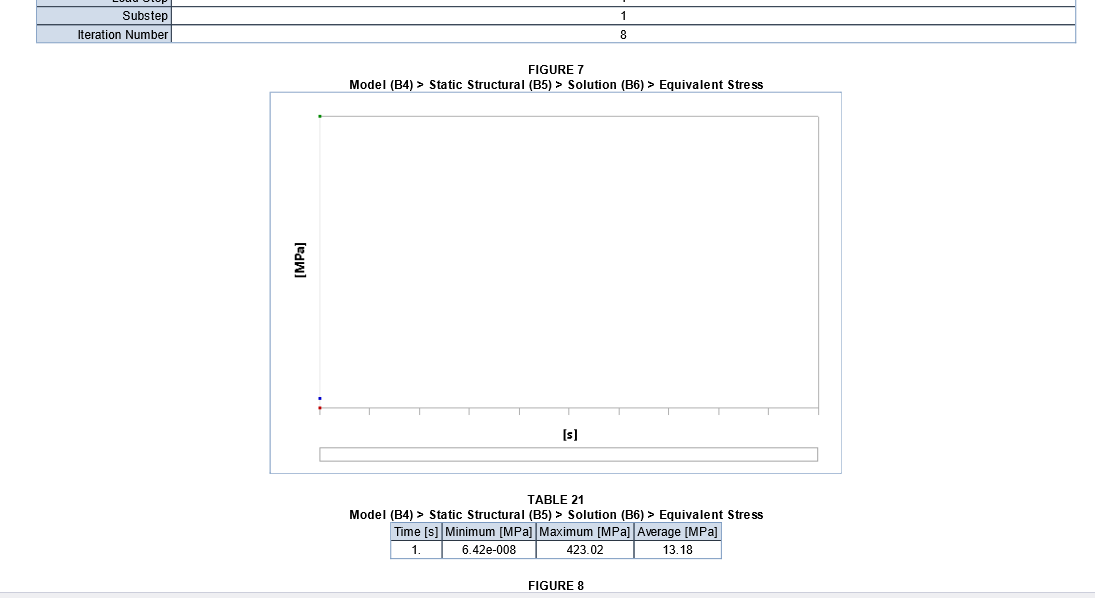

      I have basic static structural analysis and I used Report Preview in ANSYS to automate the report generation. But for result plots, they are not shown in the report. Instead, only a blank graph and tabular data are included in each solution. Does anyone know how to remove this graph?

    • January 24, 2022 at 12:51 pm
      Saumadeep Choudhury
      Forum Moderator

      The plot shown here is not blank. This is a Stress V/S Time plot and since your analysis involves static loading, hence the "point" on the stress axis (Y-axis) shows the MPa being applied.
      If this had been a transient analysis, you would have seen the stress vary w.r.t time.
      For more details related to Report Preview, please see this link - Report Preview (ansys.com)

      Regards, Saumadeep
      Ansys Help
