  3. How to find maximum stress point on a structure?

How to find maximum stress point on a structure?

    • October 15, 2021 at 2:25 pm
      Ezzad
      Subscriber

      Hi,

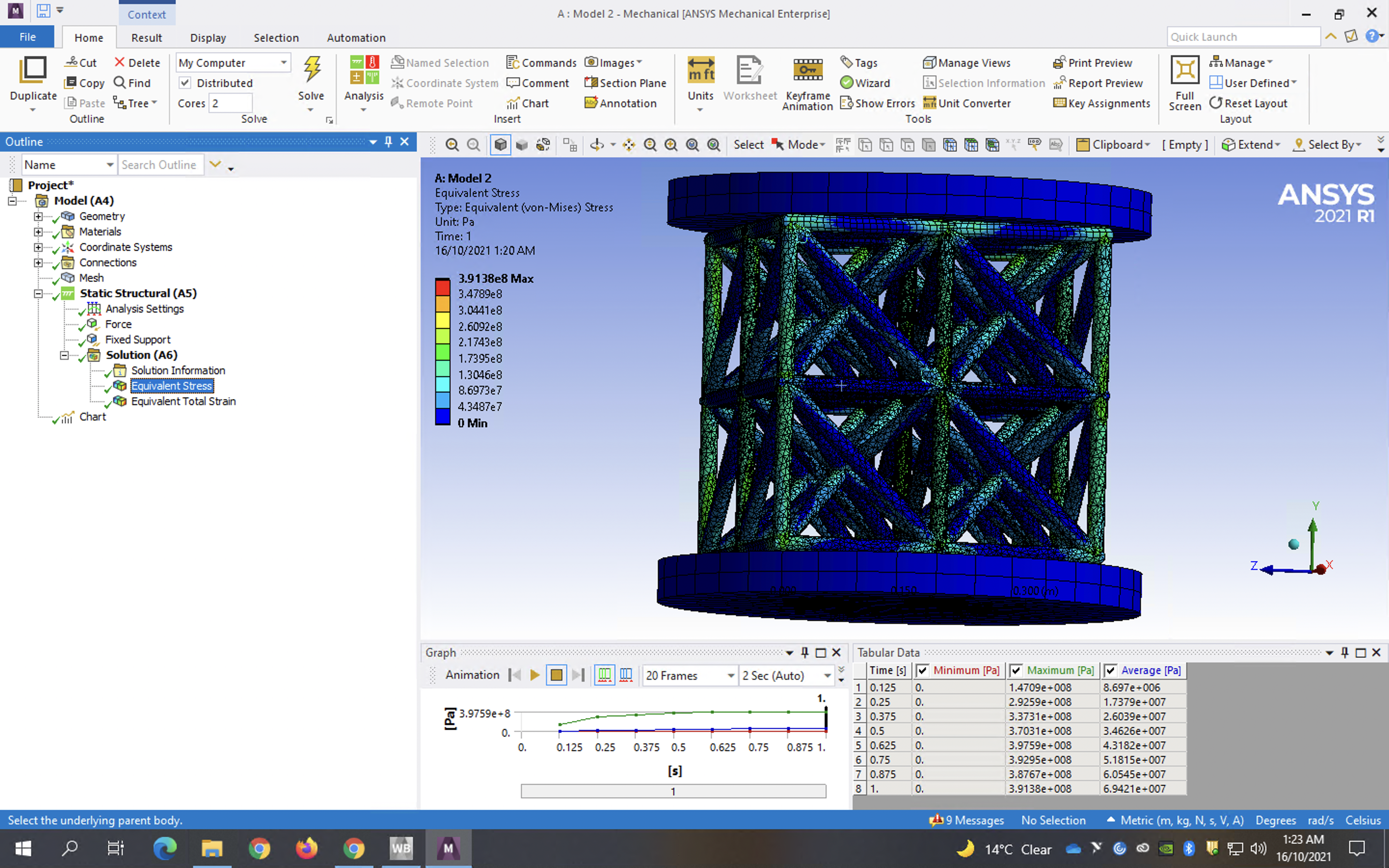

      How to find the maximum equivalent stress POINT on the structure shown below?

      Screenshot 2021-10-16 at 1.23.40 am.png
    • October 18, 2021 at 11:32 am
      Saumadeep Choudhury
      Forum Moderator
      !

      To find the point with maximum equivalent stress, follow the steps mentioned below -
      Go to "Result"--> "Maximum" (as shown in image)

      Regards Saumadeep
    • October 18, 2021 at 1:03 pm
      Ezzad
      Subscriber
      Hi Saumadeep I couldn't find the maximum.
      Regards Ezzad

    • October 18, 2021 at 1:09 pm
      Erik Kostson
      Ansys Employee

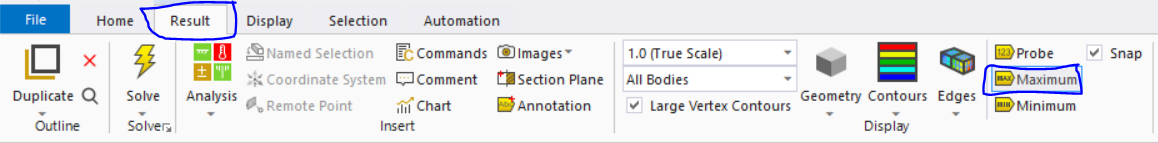

      As showed in his post, you need to be in the results tab (see below) - since you are in the Home tab now in your image, you can not see the maximum. So go to the result tab on the top.
      Erik

    • October 18, 2021 at 1:26 pm
      Ezzad
      Subscriber
      Hi Erik Found it! Thank you very very much, Erik and Saumadeep!!
      Regards Ezzad
    • October 18, 2021 at 1:28 pm
      Erik Kostson
      Ansys Employee
      More than welcome.

      take care

      Erik
Viewing 5 reply threads
