  3. How to evaluate a Reaction Force of a Contact?

How to evaluate a Reaction Force of a Contact?

TAGGED: ,

    • August 18, 2021 at 1:36 pm
      info
      Subscriber

      Hi,

      Can you please help me to find out how to evaluate in 'Results' the 'Force Reaction' within a (i.e. Bonded) Contact in Static Structural analysis?

      It seems to me that the problem originates in that I cannot find the right 'Output Controls' setting in Physics/Solver_Options.

      Regards,

      Csaba

    • August 19, 2021 at 4:34 am
      Charudatta Bandgar
      Forum Moderator

      Hello steelxpert

      Let me see if I can find a tutorial for this, I will get back to you.

      Regards.

    • August 19, 2021 at 8:37 am
      Charudatta Bandgar
      Forum Moderator

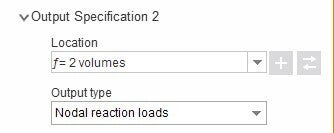

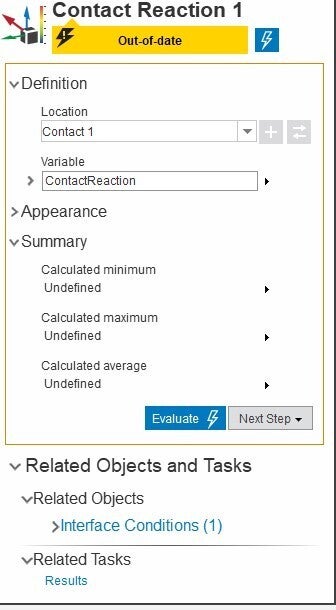

      Hello steelxpert In output control add nodal reaction loads as well, hence that will be computed. And in the results add contact reaction Regards.
